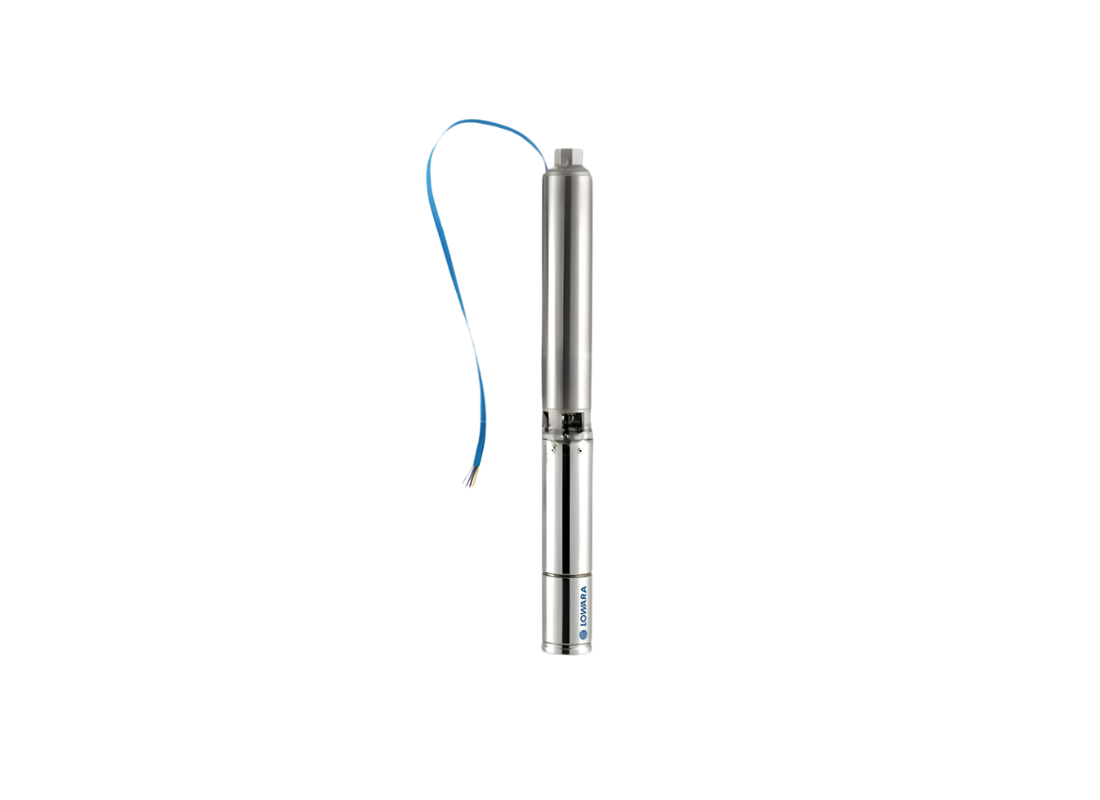

Lowara 1GS15-3 Stainless Steel 3-Phase 4" Submersible Bore Pump with Floating Impeller
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
Intensive sprinkler systems from significantly deep subterranean reserves require the high-pressure, low-volume delivery of this submersible pump. It serves agricultural water management where reliable delivery is essential, with a floating impeller design that maintains performance in groundwater containing suspended solids.
Wired for a 415V three-phase connection, the 1.5 kW motor draws 4.4 Amps during normal operation. Maximum flow reaches 22.5 L/Min with maximum head of 284 metres at shut-off. The hydraulic performance supports sprinkler system requirements where pressure is prioritized over flow.
Floating stack construction processes liquids containing up to 150 g/m³ of suspended sand. The front wear ring works in conjunction with the floating impeller to improve abrasion resistance, while the hexagonal shaft provides effective impeller drive. An integrated check valve in the upper casing secures the massive water column.
Constructed with a 304 Stainless Steel casing and technopolymer hydraulic components. The discharge head is precision-cast stainless steel. The complete three-phase model includes a professional heatshrink kit for waterproof deep-water electrical splices.
FEATURES
- Floating impeller design handles abrasive groundwater without performance loss
- Hexagonal stainless steel shaft provides effective impeller drive across all stages
- Front wear ring works in conjunction with the floating impeller to improve abrasion resistance
- Non-return valve prevents water column reversal on motor shutdown
- AISI 304 stainless steel casing offers corrosion resistance in submerged environments
- Technopolymer impeller provide lightweight technopolymer construction for smoother motor starts
- Supplied with heatshrink kit for waterproof electrical connections
SPECIFICATIONS
| Max Flow | 22.5 L/Min |
| Max Head | 285 m |
| Power | 1.5 kW / 415v |
| Rated Current | 4.4 Amps |
| Suitable For | Sprinkler Systems |
| Body Material | 304 Stainless Steel |
| Liquid Temperature | Maximum 35°C |
| Outlet Size | 32 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What is the shut-off head capability of this high-pressure submersible pump?
Delivering exceptional vertical lift, the 1GS15T reaches a maximum shut-off head of 284 metres with flow up to 22.5 L/Min.
What electrical rating and running current are needed for this three-phase pump?
Wired for a 415 V three-phase line, the 1.5 kW motor on the 1GS-15T draws 4.4 Amps during operation.
How does the pump structure prevent mechanical seizing in sandy groundwater?
Floating impellers work alongside front wear rings in the 1GS 15T to process sand up to 150 g/m3 without damage.
How is power transferred through the multistage stack?
A hexagonal stainless steel shaft in the 1GS_15T ensures efficient torque transmission throughout all stages.
Does this high-head unit prevent descending water columns when powered down?
An integrated non-return valve inside the upper casing of the 1GS15T secures the massive vertical fluid column against backflow.
