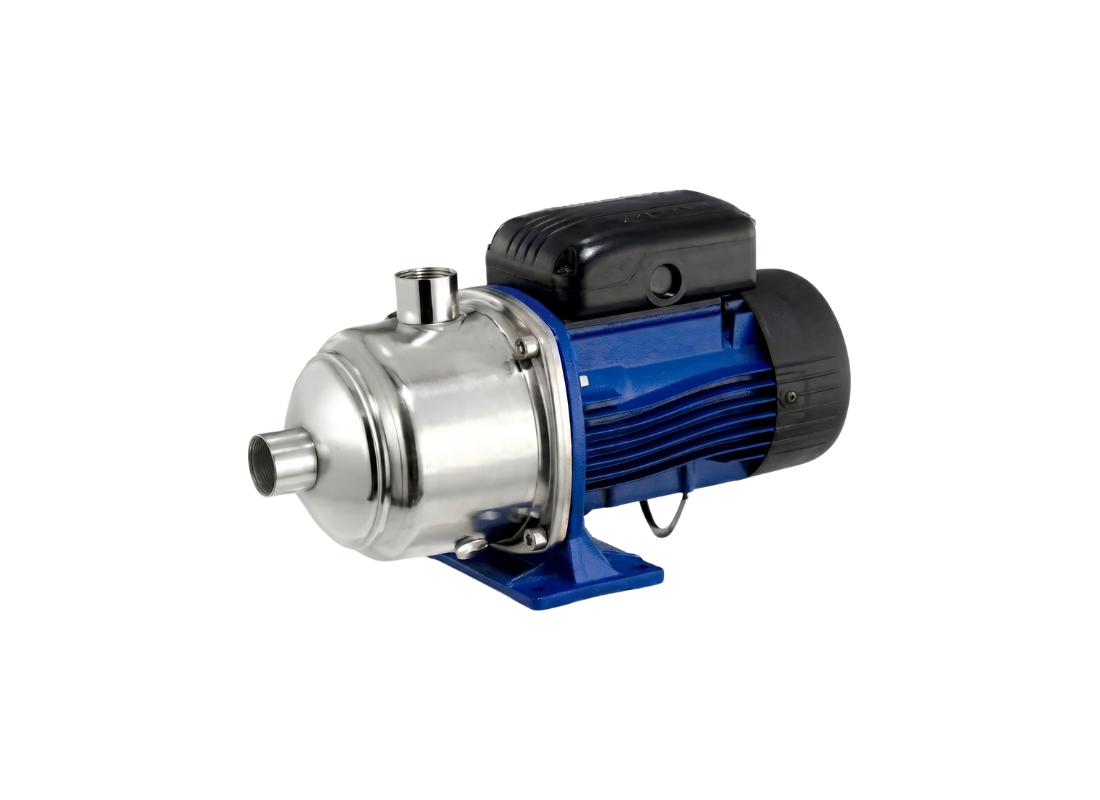

Lowara 1HM06P07T Stainless Steel Steady Multistage Centrifugal Pump for Processes with Technopolymer Impeller
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
Engineered for precise water movement in demanding industrial cleaning and process environments, the Lowara 1HM06P07T serves facilities requiring stable pressure for automated wash systems and equipment cooling. This horizontal multistage pump integrates seamlessly into professional water treatment loops where compact sizing and structural durability are essential for operational continuity. The unit is optimized for clean water transfer tasks, providing a solution for environments that demand high levels of reliability without compromising on flow characteristics or space-saving mechanical integration.
The system architecture features a robust stainless steel 304 body, paired with high-efficiency technopolymer internals for fluid handling. Rated with a maximum power output of 0.75 kW / 415v, this unit demonstrates significant hydraulic capability relative to its frame, reaching approximately Max Head 63 m and Max Flow 40 L/Min. These metrics confirm its suitability for diverse technical applications, balancing energy consumption with output requirements in closed-loop systems while maintaining consistent performance across sustained daily operation cycles.
Technologically, the pump is designed around an IE3-compliant motor frame, ensuring minimal energy dissipation and extended lifecycle in industrial settings. The multistage design utilizes balanced technopolymer internals to counteract axial thrust, effectively reducing mechanical stress on the motor bearings during high-pressure operation. This mechanical configuration supports low-noise output and enhances the operational efficiency, positioning it as an ideal selection for sensitive building services and automated industrial washing machines.
Installation is simplified through standard 25 mm inlet and outlet port configurations, which are designed for common industrial piping standards. The construction adheres to strict material quality benchmarks, utilizing stainless steel for the hydraulic components to ensure resistance to moderately aggressive fluids. Safety and protection are supported by the TEFC motor configuration and IP55 protection rating, which safeguard the drive mechanism from environmental contaminants. This setup ensures long-term operational integrity in diverse mechanical utility spaces.
Features:
- Stainless steel 304 hydraulic body for enhanced corrosion resistance
- Balanced rotating components to minimize vibration and axial force
- IE3 energy efficiency motor technology for reduced electricity consumption
- Metric cable glands compliant with EN 50262 for secure wiring
- Compact flange design optimized for integration in restricted utility zones
- Sealing configuration using EPDM elastomers for chemical and thermal stability
SPECIFICATIONS
| Max Flow | 40 L/Min |
| Max Head | 63 m |
| Power | 0.75 kW / 415v |
| Rated Current | 1.62 Amps |
| Suitable For | Industrial Washing and Cleaning |
| Body Material | AISI 304 Stainless Steel |
| Liquid Temperature | Maximum 90°C |
| Inlet Size | 25 mm |
| Outlet Size | 25 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What maximum dynamic head and vertical lift elevation can this multistage pump produce?
Operating across vertical piping runs, the 1HM06P07T produces a maximum dynamic head of approximately 69.3 m to lift clean water upward.
What maximum water flow delivery volume and discharge pipe thread apply to this pump?
Delivering high fluid volume, the 1HM-06P-07T discharges a peak delivery flow rate of approximately 40 L/Min through its Rp 1" (25 mm) suction and Rp 1" (25 mm) discharge.
What construction metallurgy and impeller polymers protect this multistage pump from corrosion?
Defending against fluid corrosion and chemical attack, the 1HM 06P 07T features an AISI 304 stainless steel casing alloy with technopolymer impellers and durable ceramic/carbon/EPDM mechanical seal construction.
What electrical power rating in kilowatt and supply voltage feed this three-phase motor?
Operating on a 380–415 V, 50 Hz, three-phase power supply, the 1HM_06P_07T features an electrical motor power rating of 0.75 kW (1.0 HP) drawing an electrical full-load current of 1.62 A.
Where is horizontal foundation mounting recommended for this pump and how is backflow prevented?
Mounting the 1HM06P07T requires a rigid level horizontal foundation base with adequate drainage, alongside an external in-line non-return check valve to prevent reverse flow and backflow.
