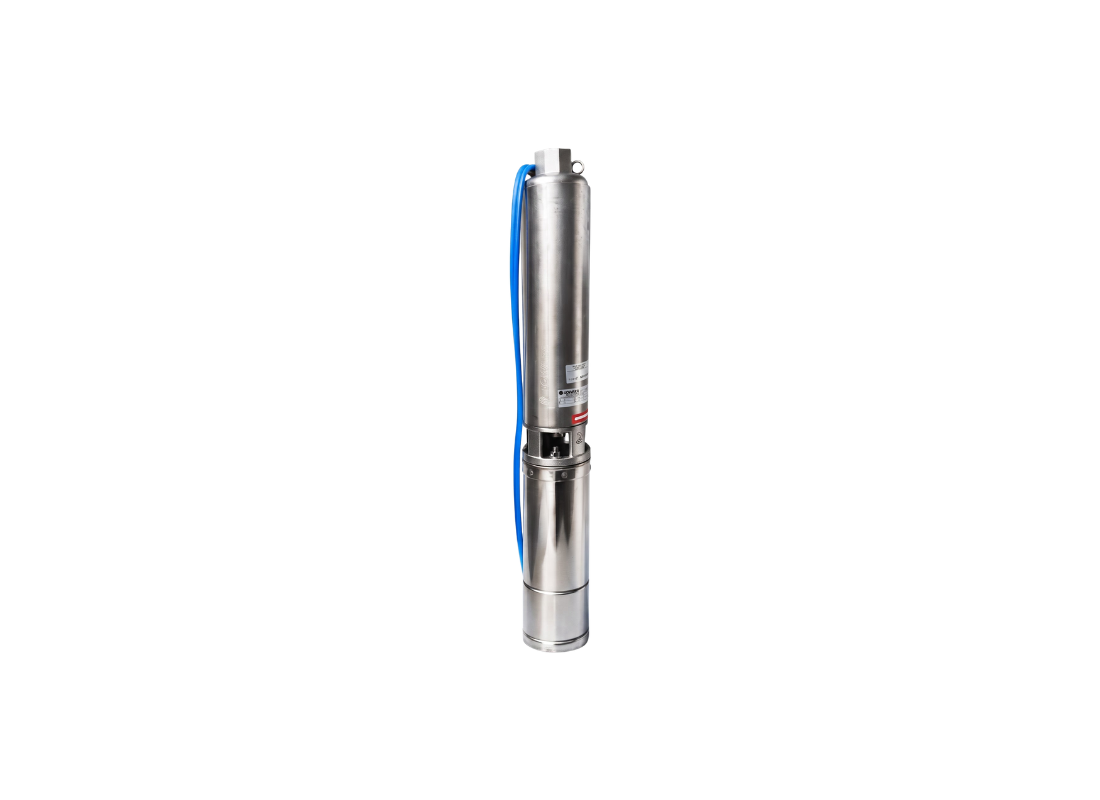

Lowara 2GS03-1 Stainless Steel 4" Submersible Bore Pump with Floating Impeller
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
The stainless steel casing of this submersible pump provides the foundation for reliable irrigation supply from 4-inch wells into agricultural distribution networks. It delivers dependable groundwater transfer for moderate depth extraction duties, with a floating impeller configuration that supports operation in water containing suspended solids.
Operating on a 240V single-phase supply, the 0.37 kW motor draws 3.2 Amps during normal operation. Maximum flow reaches 50 L/Min with maximum head of 42 metres. The hydraulic design delivers stable flow characteristics for irrigation network requirements.
Floating stack construction processes liquids containing up to 150 g/m³ of suspended sand. The front wear ring works in conjunction with the floating impeller to improve abrasion resistance, while the hexagonal shaft transmits motor torque effectively. An embedded stainless steel check valve arrests backflow when the electrical supply is interrupted.
Supplied with a dedicated control box and thermal shrink kit for waterproof connections. Designed for continuous submersion in liquids up to 35°C, the pump integrates precision-cast stainless steel components throughout.
FEATURES
- Floating impeller system handles sand concentrations up to 150 g/m³
- Hexagonal stainless steel shaft provides effective impeller drive without slippage
- Front wear ring works in conjunction with the floating impeller to improve abrasion resistance
- Non-return valve prevents water column drainage on motor shutdown
- AISI 304 stainless steel casing offers corrosion resistance in submerged environments
- Technopolymer impeller provide corrosion resistance with lightweight technopolymer construction
- Includes control box and heatshrink kit for immediate installation
SPECIFICATIONS
| Max Flow | 50 L/Min |
| Max Head | 42 m |
| Power | 0.37 kW / 240v |
| Rated Current | 3.2 Amps |
| Suitable For | Irrigation Supply |
| Body Material | 304 Stainless Steel |
| Liquid Temperature | Maximum 35°C |
| Outlet Size | 32 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What accessories are supplied with this single-phase irrigation borehole pump?
The 2GS03M comes supplied complete with an external starting control box and a thermal shrink kit for waterproof wiring.
What are the flow and pressure capabilities for agricultural watering?
Designed for moderate-depth extraction, the 2GS-03M delivers a maximum flow of 50 L/Min with a head reaching 42 metres.
How much power does this borehole motor draw on standard single-phase power?
Powered by a 240 V single-phase motor rated at 0.37 kW, the 2GS 03M draws 3.2 Amps during normal operation.
Does this pump arrest water column backflow when the electrical supply cuts out?
An embedded stainless steel check valve inside the 2GS_03M arrests water backflow whenever power is interrupted.
Can this pump operate in groundwater with suspended sand?
Floating stack construction enables the 2GS03M to process liquids with suspended sand concentrations up to 150 g/m3.
