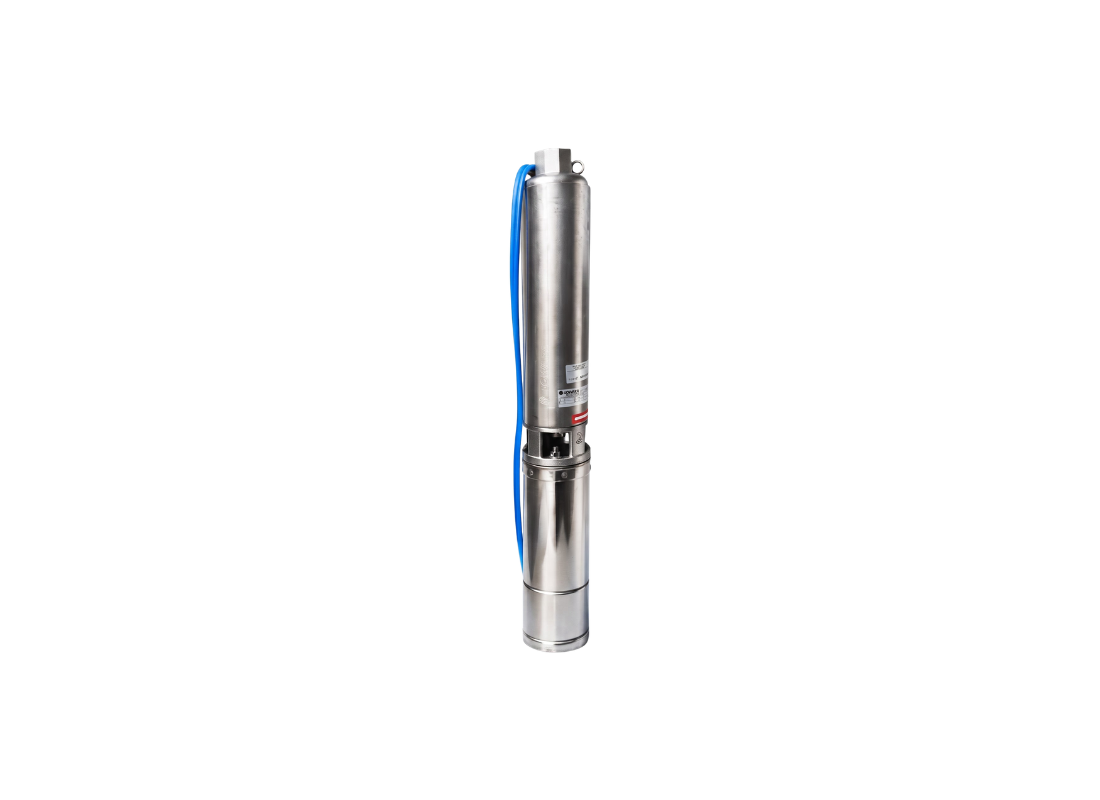

Lowara 2GS03-3 Stainless Steel 3-Phase 4" Submersible Bore Pump with Floating Impeller
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
Three-phase pressure boosting systems drawing from 4-inch boreholes benefit from this submersible pump, which serves industrial fluid transfer duties where reliable pressure delivery is essential. The floating impeller configuration maintains stable hydraulic performance in water containing suspended solids.
Powered by a 415V three-phase motor rated at 0.37 kW, drawing 1.2 Amps during normal operation. Maximum flow reaches 50 L/Min with maximum head of 42 metres. The hydraulic design supports consistent pressure delivery for boosting applications.
Floating stack construction processes liquids containing up to 150 g/m³ of suspended sand. The front wear ring works in conjunction with the floating impeller to improve abrasion resistance, while the hexagonal shaft transmits motor torque effectively. An integrated check valve prevents back-siphoning into the well.
Built with a 304 Stainless Steel casing and technopolymer internal components. The discharge head is precision-cast stainless steel. Supplied with an industrial heatshrink kit for waterproof electrical connections, the pump is designed for continuous submersion in liquids up to 35°C.
FEATURES
- Floating impeller system handles sand concentrations up to 150 g/m³
- Hexagonal stainless steel shaft provides effective impeller drive without slippage
- Front wear ring works in conjunction with the floating impeller to improve abrasion resistance
- Non-return valve prevents water column drainage on motor shutdown
- AISI 304 stainless steel casing offers corrosion resistance in submerged environments
- Technopolymer impeller provide lightweight technopolymer construction for smoother motor starts
- Supplied with heatshrink kit for waterproof electrical connections
SPECIFICATIONS
| Max Flow | 50 L/Min |
| Max Head | 42 m |
| Power | 0.37 kW / 415v |
| Rated Current | 1.2 Amps |
| Suitable For | Pressure Boosting |
| Body Material | 304 Stainless Steel |
| Liquid Temperature | Maximum 35°C |
| Outlet Size | 32 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What three-phase voltage and current draw are required for this pump?
The 2GS03T is powered by a 415 V three-phase motor rated at 0.37 kW that draws 1.2 Amps during duty.
What maximum water temperature can this submersible pump tolerate?
Engineered for continuous submerged operation, the 2GS-03T safely handles liquid temperatures up to 35°C.
What head and flow does this three-phase booster deliver?
The 2GS 03T delivers a maximum flow of 50 L/Min with a head reaching up to 42 metres for industrial fluid transfer.
How does this pump prevent reverse water flow and column drainage?
An integrated non-return valve in the 2GS_03T arrests column drainage and eliminates back-siphoning into the well.
Can this unit handle water containing suspended sand particles?
Floating stack construction allows the 2GS03T to handle abrasive sand concentrations up to 150 g/m3 without jamming.
