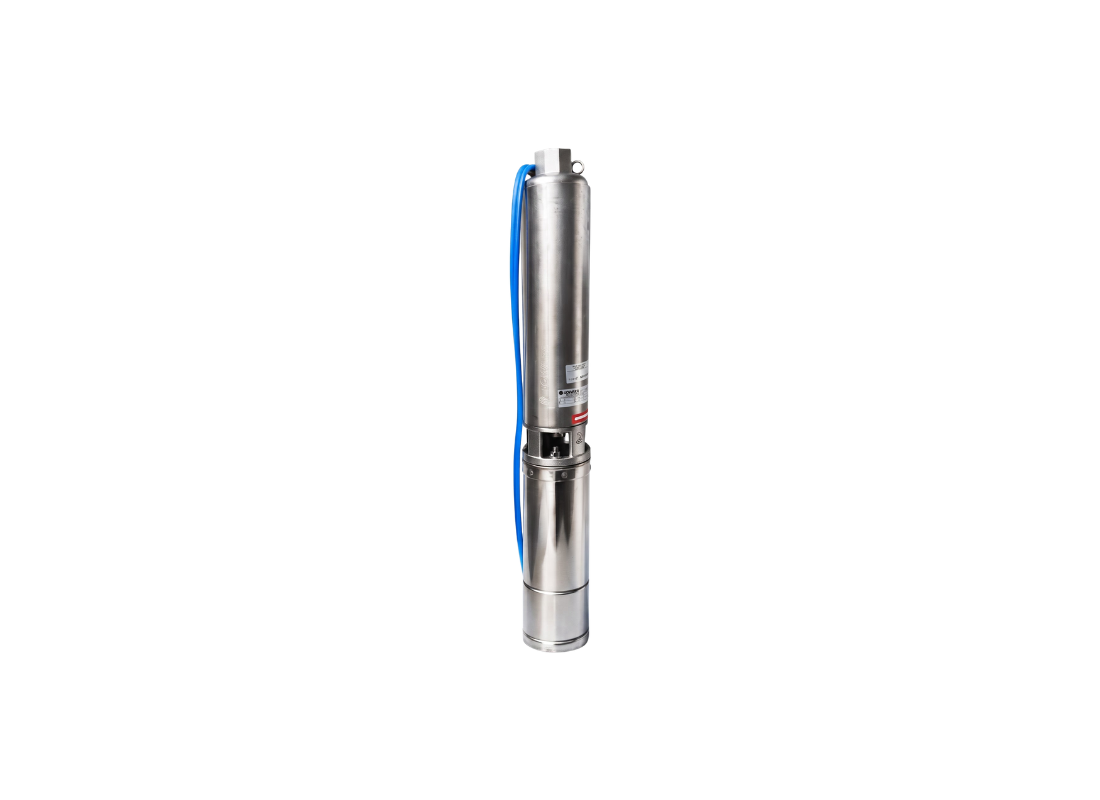

Lowara 2GS05-1 Stainless Steel 4" Submersible Bore Pump with Floating Impeller
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
This submersible pump supports continuous primary water supply networks from 4-inch deep wells, serving residential and commercial fluid transfer duties where reliable groundwater delivery is essential. The floating impeller design maintains stable hydraulic performance in water containing suspended particulates.
Powered by a 240V single-phase motor rated at 0.55 kW, drawing 4.3 Amps during normal operation. Maximum flow is 50 L/Min with maximum head of 60 metres. The hydraulic performance characteristics support consistent water delivery for supply networks.
Floating stack construction handles sand concentrations up to 150 g/m³ without mechanical binding. The front wear ring works in conjunction with the floating impeller to improve abrasion resistance, while the hexagonal shaft provides effective impeller drive. An integrated metallic check valve prevents back-siphoning into the well.
Constructed with a 304 Stainless Steel casing and technopolymer diffusers and impellers. The discharge head is precision-cast stainless steel. The complete single-phase package includes the motor control box and heatshrink kit for secure cable jointing.
FEATURES
- Floating impeller design handles abrasive groundwater without efficiency loss
- Hexagonal stainless steel shaft provides effective impeller drive across all stages
- Front wear ring works in conjunction with the floating impeller to improve abrasion resistance
- Non-return valve prevents reverse rotation and water column drainage
- AISI 304 stainless steel casing offers corrosion resistance in submerged operation
- Technopolymer impeller provide lightweight technopolymer construction for smoother motor starts
- Supplied with control box and heatshrink kit for rapid installation
SPECIFICATIONS
| Max Flow | 50 L/Min |
| Max Head | 60 m |
| Power | 0.55 kW / 240v |
| Rated Current | 4.3 Amps |
| Suitable For | Water Supply System |
| Body Material | 304 Stainless Steel |
| Liquid Temperature | Maximum 35°C |
| Outlet Size | 32 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What is the maximum lift height of this primary water supply pump?
The 2GS05M provides a maximum head of 60 metres with a peak flow capacity of 50 L/Min.
How does this submersible unit prevent sand from jamming the impellers?
Floating stack design enables the 2GS-05M to handle abrasive groundwater with sand concentrations up to 150 g/m3 without seizing.
What motor specifications apply to this single-phase pump?
Connected to a 240 V single-phase supply, the 0.55 kW motor of the 2GS 05M draws 4.3 Amps during normal operation.
How does this pump protect against back-siphoning into the well?
An integrated metallic check valve in the 2GS_05M stops descending water columns and prevents back-siphoning.
What materials ensure corrosion resistance in long-term submersion?
Built with an AISI 304 stainless steel casing and technopolymer internal stages, the 2GS05M delivers lasting corrosion resistance.
