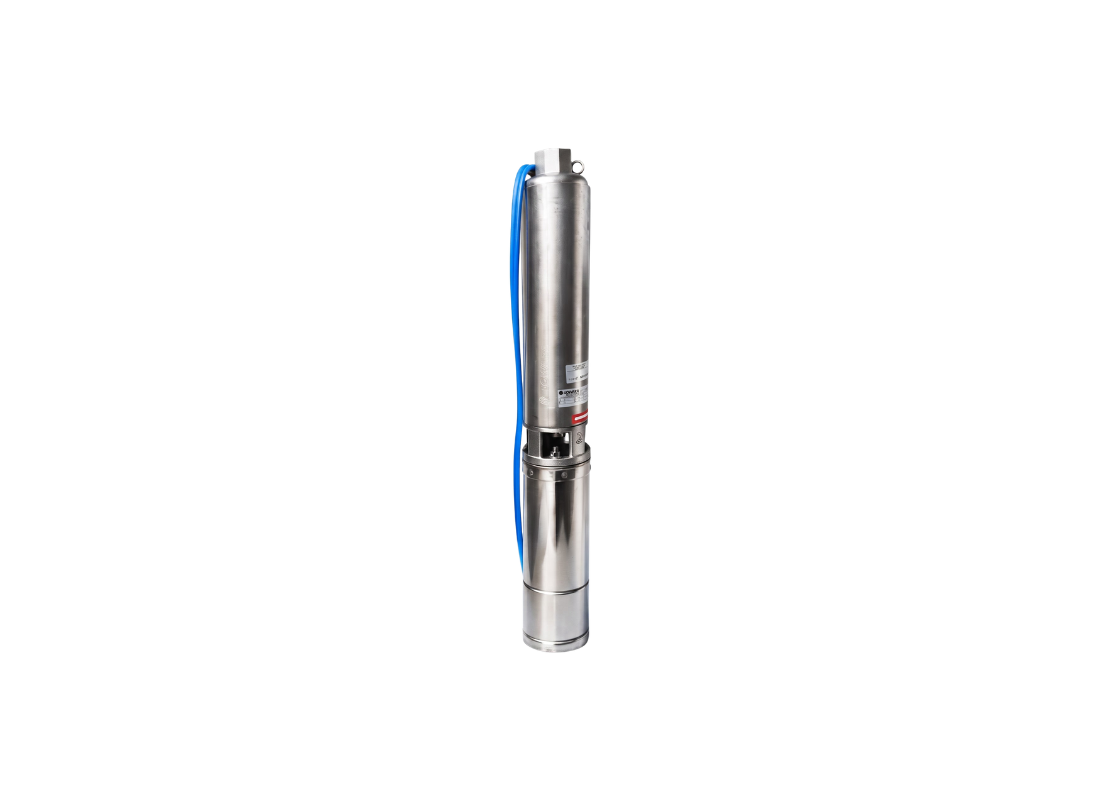

Lowara 2GS05-3 Stainless Steel 3-Phase 4" Submersible Bore Pump with Floating Impeller
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
Fire protection scenarios requiring water from deep boreholes are well supported by this submersible pump, which serves commercial fluid management where reliable emergency water supply is essential. The floating impeller design maintains performance in water containing suspended solids.
Operating on a 415V three-phase supply, the 0.55 kW motor draws 1.7 Amps during normal operation. Maximum flow reaches 50 L/Min with maximum head of 60 metres. The hydraulic characteristics support fire protection system requirements effectively.
Floating stack construction handles liquids containing up to 150 g/m³ of suspended sand. The front wear ring works in conjunction with the floating impeller to improve abrasion resistance, while the hexagonal shaft provides effective impeller drive. A built-in metallic non-return valve prevents fluid column reversal when the motor deactivates.
Constructed with a 304 Stainless Steel casing and technopolymer hydraulic components. The discharge head is precision-cast stainless steel. The complete three-phase model includes a professional heatshrink kit for waterproof electrical connections.
FEATURES
- Floating impeller design handles abrasive groundwater without efficiency loss
- Hexagonal stainless steel shaft provides effective impeller drive across all stages
- Front wear ring works in conjunction with the floating impeller to improve abrasion resistance
- Non-return valve prevents water column reversal on motor shutdown
- AISI 304 stainless steel casing offers corrosion resistance in submerged operation
- Technopolymer impeller provide lightweight technopolymer construction for smoother motor starts
- Supplied with heatshrink kit for waterproof electrical connections
SPECIFICATIONS
| Max Flow | 50 L/Min |
| Max Head | 60 m |
| Power | 0.55 kW / 415v |
| Rated Current | 1.7 Amps |
| Suitable For | Fire Protection System |
| Body Material | 304 Stainless Steel |
| Liquid Temperature | Maximum 35°C |
| Outlet Size | 32 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What materials are used to construct the pump casing and impellers?
Constructed with an AISI 304 stainless steel casing and technopolymer impellers, the 2GS05T resists corrosion during long-term submersion.
Does this fire protection borehole pump prevent water column reversal?
A built-in metallic non-return valve inside the 2GS-05T prevents fluid column reversal when the motor deactivates.
What are the electrical power specifications for this three-phase unit?
Connected to a 415 V three-phase line, the 0.55 kW motor of the 2GS 05T draws 1.7 Amps during normal duty.
What maximum head and flow rate does this model produce?
Reaching a maximum head of 60 metres, the 2GS_05T delivers flow rates up to 50 L/Min for emergency water supply.
How does the pump handle sand and silt in deep boreholes?
Floating stack design enables the 2GS05T to manage sand concentrations up to 150 g/m3 without loss of efficiency.
