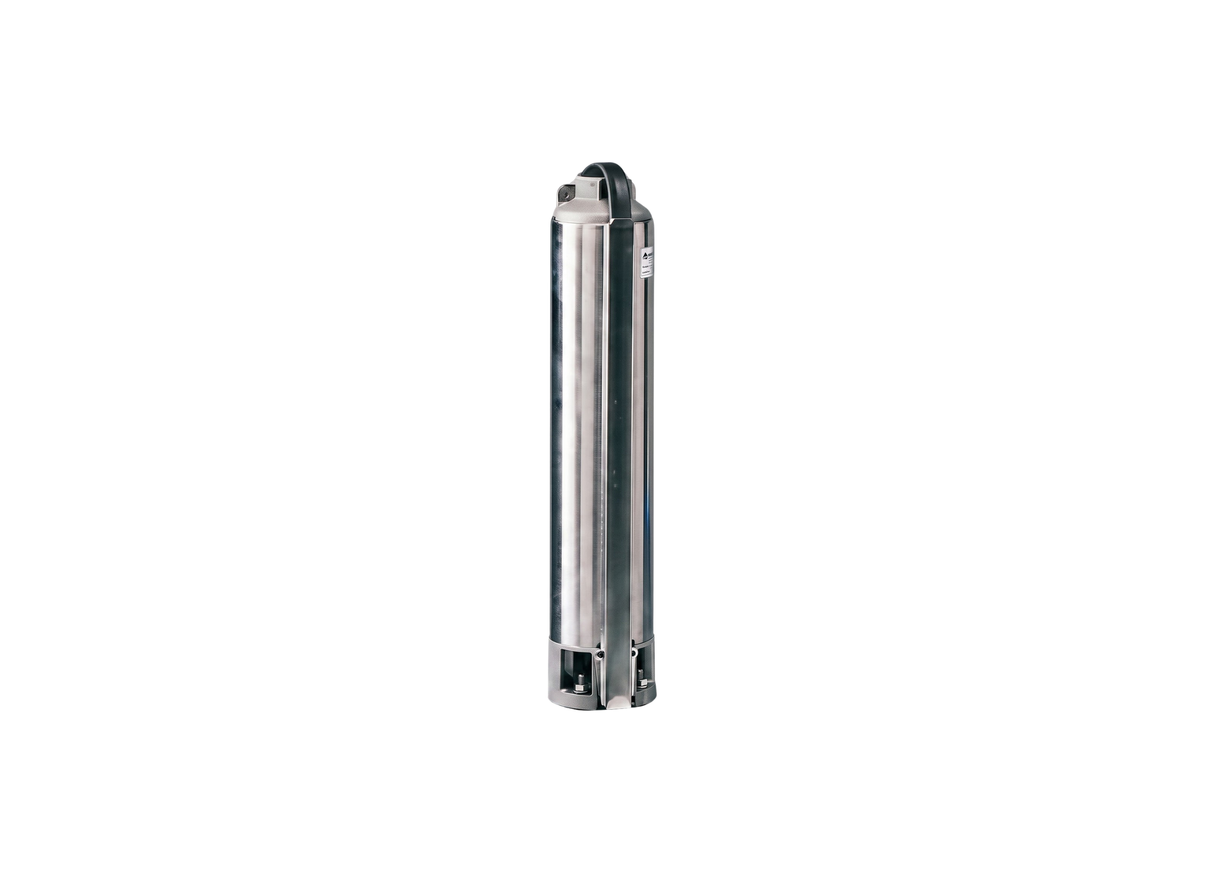

Lowara 2GS05 Stainless Steel Deep Well 4" Submersible Bore Pump (Wet End Only) with Floating Impeller
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
Forming the hydraulic wet end of a submersible pump system, the Lowara 2GS05 is a redesigned 4-inch e-GS borehole component. This model is specified for coupling with a 0.55 kW (0.73 HP) electric motor. Well installation allows vertical placement or horizontal mounting inside tanks.
A stainless steel casing houses the multi-stage hydraulics, protecting the internal floating stack. This model is equipped with 10 floating impellers made of wear-resistant polymer. The system handles suspended sand particles up to a maximum of 150 grams per cubic meter.
Upon coupling this pump end to its specified 0.55 kW motor (rated for 4.3 Amps on 240 V single-phase power), the combined unit reaches a maximum head of 60.0 m. It delivers a maximum flow of 50 L/Min through a Rp 1-1/4" (32 mm) port. High volumetric delivery is maintained under load.
Continuous service is possible in liquid temperatures reaching up to a maximum of 35°C. The assembly is specified for submergence depths up to 150 meters with a 4OS motor or up to 300 meters with an L4C motor. Horizontal deployment is possible within motor limits. The multi-stage design requires proper coupling with standard motors to maintain correct performance under standard system heads.
FEATURES
- Features 10 multi-stage floating impellers to drastically limit wear and abrasion from suspended sand particles.
- Constructed with a sturdy stainless steel outer sleeve to limit corrosion and protect internal hydraulic components.
- Includes an integrated stainless steel strainer to filter out oversized particles and prevent debris entry.
- Features a hexagonal pump shaft design that distributes mechanical torque without vulnerable keyed joints.
- The upper and lower brackets are made of precision-cast stainless steel to establish a sturdy motor coupling.
- ErP/Ecodesign compliant in accordance with strict European Minimum Efficiency Index of 0.40 or higher.
- Suitable for continuous submerged operations in liquid temperatures reaching up to a maximum of 35°C.
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Is the Lowara 2GS05 safe to use in mineral-heavy or salty groundwater?
The pump uses stainless-steel wetted components; suitability for saline or aggressive water should be confirmed against the manufacturer's liquid-compatibility limits.
What pipe size connects to the Lowara 2GS05 discharge port?
It fits a standard 32 mm outlet connection. Using the right pipe diameter ensures you get the full 50 L/Min discharge flow.
Can I install the Lowara 2GS05 horizontally inside a water tank?
Horizontal installation may be permitted where the manufacturer's installation requirements are met, including the required inclination and adequate motor cooling.
How many sprinklers can the Lowara 2GS05 run at the same time?
With a peak flow of 50 L/Min, it delivers plenty of volume to run large farm irrigators or multiple garden sprinkler lines simultaneously.
