SKU: 2GS07-1

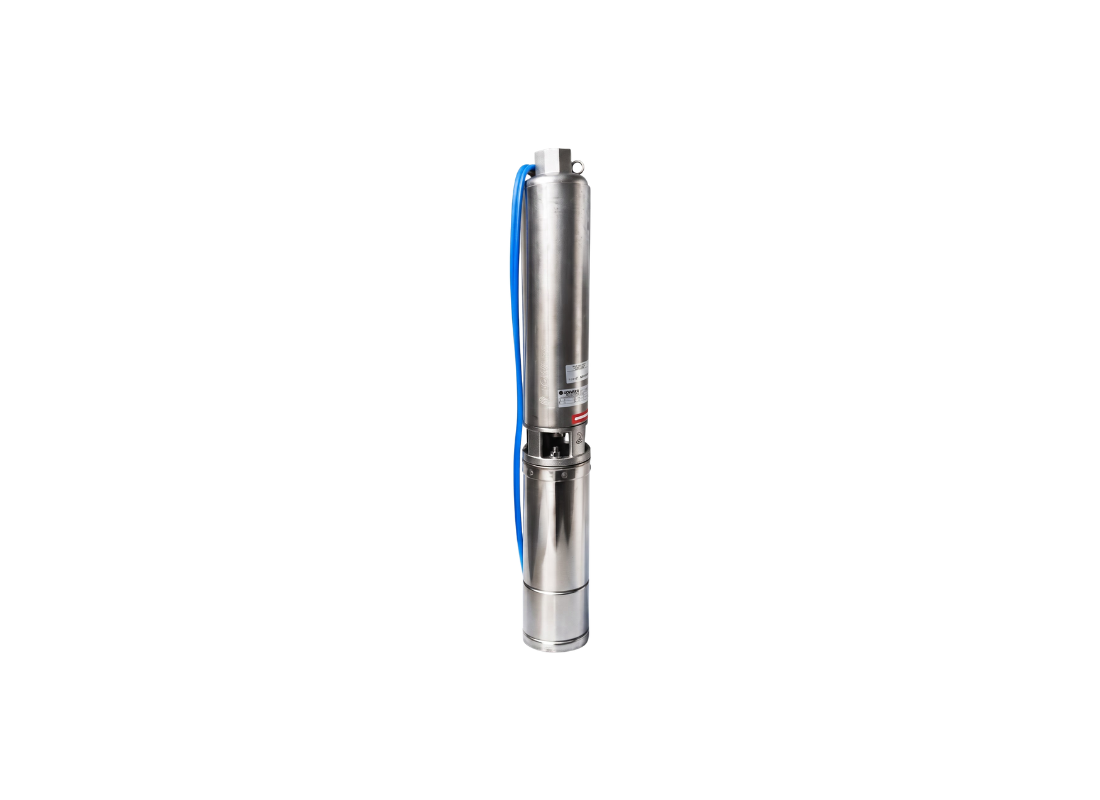

Lowara 2GS07-1 Stainless Steel 4" Submersible Bore Pump with Floating Impeller
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
When pressure boosting from subterranean aquifers into surface-level holding tanks is needed, this submersible pump serves vertical extraction duties where consistent pressure delivery is essential. The floating impeller design supports reliable operation in water containing suspended solids.
Drawing from a standard 240V single-phase supply, the 0.75 kW motor draws 5.6 Amps during normal operation. Maximum flow reaches 50 L/Min with maximum head of 83 metres. The hydraulic characteristics support pressure boosting requirements effectively.
Floating stack construction processes liquids containing up to 150 g/m³ of suspended sand. The front wear ring works in conjunction with the floating impeller to improve abrasion resistance, while the hexagonal shaft ensures effective impeller drive. An embedded stainless steel non-return valve arrests the falling water column when power is cut.
Built with a 304 Stainless Steel casing and technopolymer hydraulic components. The discharge head is precision-cast stainless steel. Supplied with a matching external control box and waterproof heatshrink kit for immediate commissioning.
FEATURES
- Floating impeller system handles sand concentrations up to 150 g/m³
- Hexagonal stainless steel shaft provides effective impeller drive
- Front wear ring works in conjunction with the floating impeller to improve abrasion resistance
- Non-return valve prevents water column reversal on motor shutdown
- AISI 304 stainless steel casing offers corrosion resistance in submerged environments
- Technopolymer impeller provide corrosion resistance with lightweight technopolymer construction
- Includes control box and heatshrink kit for rapid installation
SPECIFICATIONS
| Max Flow | 50 L/Min |
| Max Head | 83 m |
| Power | 0.75 kW / 240v |
| Rated Current | 5.6 Amps |
| Suitable For | Pressure Boosting |
| Body Material | 304 Stainless Steel |
| Liquid Temperature | Maximum 35°C |
| Outlet Size | 32 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How does this pressure-boosting borehole pump handle abrasive particulates?
Floating hydraulic stack construction allows the 2GS07M to process suspended sand up to 150 g/m3 without binding.
What starting equipment is included in the package?
A matching external control box and waterproof heatshrink kit are included with the 2GS-07M for rapid commissioning.
What are the head and flow outputs of this booster unit?
Reaching a maximum head of 83 metres, the 2GS 07M supplies consistent water delivery up to 50 L/Min.
What is the electrical current draw of this single-phase motor?
Operating on a 240 V single-phase line, the 0.75 kW motor in the 2GS_07M draws 5.6 Amps under load.
Does this pump lock the vertical water column when turned off?
An embedded stainless steel non-return valve in the 2GS07M arrests the falling water column when the motor deactivates.
