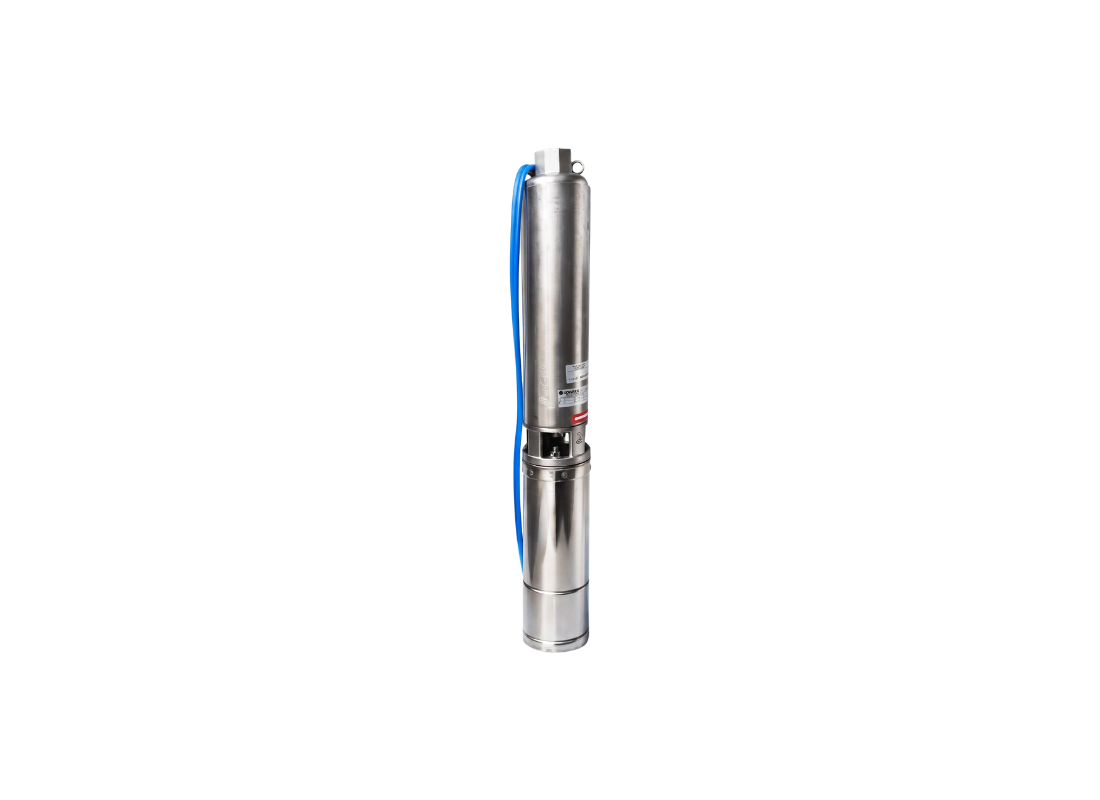

Lowara 2GS07-3 Stainless Steel 3-Phase 4" Submersible Bore Pump with Floating Impeller
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
Sprinkler systems requiring reliable water from deep subterranean sources can depend on this submersible pump, which serves agricultural and infrastructure water management where consistent flow is essential. The floating impeller configuration supports continuous operation in groundwater containing suspended solids.
Connected to a 415V three-phase supply, the 0.75 kW motor draws 2.4 Amps during normal operation. Maximum flow reaches 50 L/Min with maximum head of 83 metres. The hydraulic performance supports sprinkler system requirements effectively.
Floating internal design permits the pump to handle water containing up to 150 g/m³ of suspended sand. The front wear ring works in conjunction with the floating impeller to improve abrasion resistance, while the hexagonal shaft ensures effective impeller drive. A non-return valve locks the vertical water column on shutdown.
Manufactured with a 304 Stainless Steel casing and technopolymer hydraulic components. The discharge head is precision-cast stainless steel. Supplied with an industrial-grade heatshrink kit for waterproof cable splices.
FEATURES
- Floating impeller system handles sand concentrations up to 150 g/m³
- Hexagonal stainless steel shaft provides effective impeller drive
- Front wear ring works in conjunction with the floating impeller to improve abrasion resistance
- Non-return valve prevents water column reversal on motor shutdown
- AISI 304 stainless steel casing offers corrosion resistance in submerged environments
- Technopolymer impeller provide corrosion resistance with lightweight technopolymer construction
- Supplied with heatshrink kit for waterproof electrical connections
SPECIFICATIONS
| Max Flow | 50 L/Min |
| Max Head | 83 m |
| Power | 0.75 kW / 415v |
| Rated Current | 2.4 Amps |
| Suitable For | Sprinkler Systems |
| Body Material | 304 Stainless Steel |
| Liquid Temperature | Maximum 35°C |
| Outlet Size | 32 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How is motor torque transmitted through the pump stages?
A hexagonal stainless steel shaft ensures positive torque transmission across all impeller stages in the 2GS07T.
What is the maximum lift height of this three-phase sprinkler pump?
Designed for agricultural and infrastructure networks, the 2GS-07T delivers a maximum head of 83 metres at 50 L/Min.
What electrical accessories are included for down-hole installation?
An industrial-grade heatshrink kit is supplied with the 2GS 07T to ensure watertight electrical connections in deep water.
What is the operating current and power rating of this motor?
Operating on a 415 V three-phase supply, the 0.75 kW motor in the 2GS_07T draws 2.4 Amps during normal operation.
Does this pump lock the vertical water column when shut down?
A non-return valve in the 2GS07T locks the vertical water column on shutdown to protect against reverse rotation.
