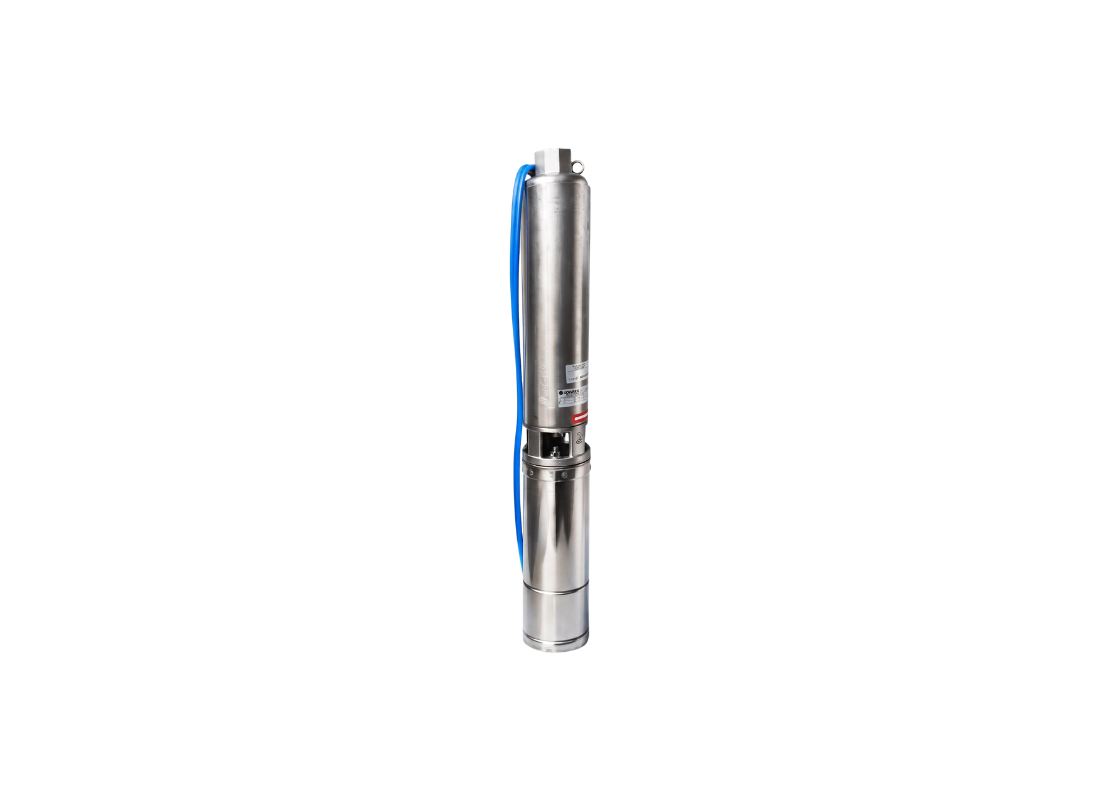

Lowara 2GS11-3 Stainless Steel 3-Phase 4" Submersible Bore Pump with Floating Impeller
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
Large-scale water supply from exceptionally deep 4-inch boreholes is the purpose of this submersible pump, serving municipal and industrial extraction duties where consistent flow and high head are essential. The floating impeller design maintains stable hydraulic performance in groundwater containing suspended particulates.
Wired for 415V three-phase power, the 1.1 kW motor draws 3.1 Amps during normal operation. Maximum flow reaches 50 L/Min with maximum head of 119 metres. The hydraulic characteristics support deep well installations requiring significant lift.
Floating stack construction processes liquids containing up to 150 g/m³ of suspended sand. The front wear ring works in conjunction with the floating impeller to improve abrasion resistance, while the hexagonal shaft provides effective impeller drive. An embedded stainless steel check valve blocks descending water columns.
Built with a 304 Stainless Steel casing and technopolymer hydraulic components. The discharge head is precision-cast stainless steel. This complete three-phase model includes a heavy-duty heatshrink kit for waterproof deep-water splices.
FEATURES
- Floating impeller design handles abrasive groundwater without performance loss
- Hexagonal stainless steel shaft provides effective impeller drive across all stages
- Front wear ring works in conjunction with the floating impeller to improve abrasion resistance
- Non-return valve prevents water column drainage on motor shutdown
- AISI 304 stainless steel casing offers corrosion resistance in deep well applications
- Technopolymer impeller provide lightweight technopolymer construction for smoother motor starts
- Supplied with heatshrink kit for waterproof electrical connections
SPECIFICATIONS
| Max Flow | 50 L/Min |
| Max Head | 119 m |
| Power | 1.1 kW / 415v |
| Rated Current | 3.1 Amps |
| Suitable For | Water Supply System |
| Body Material | 304 Stainless Steel |
| Liquid Temperature | Maximum 35°C |
| Outlet Size | 32 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What discharge head and flow performance does this deep-well pump offer?
The 2GS11T reaches a maximum head of 119 metres while delivering up to 50 L/Min for large-scale water supply.
How does this model prevent damage from abrasive groundwater?
Floating impellers combined with front wear rings allow the 2GS-11T to tolerate sand levels up to 150 g/m3.
What are the outer casing and discharge head materials?
The 2GS 11T features an AISI 304 stainless steel casing and a precision-cast stainless steel discharge head.
Does this submersible pump prevent backflow into 4-inch wells?
An embedded stainless steel check valve in the 2GS_11T stops descending water columns when power is disconnected.
What electrical supply and current draw apply to this motor?
Wired for a 415 V three-phase power supply, the 1.1 kW motor of the 2GS11T draws 3.1 Amps.
