SKU: 2GS15-1

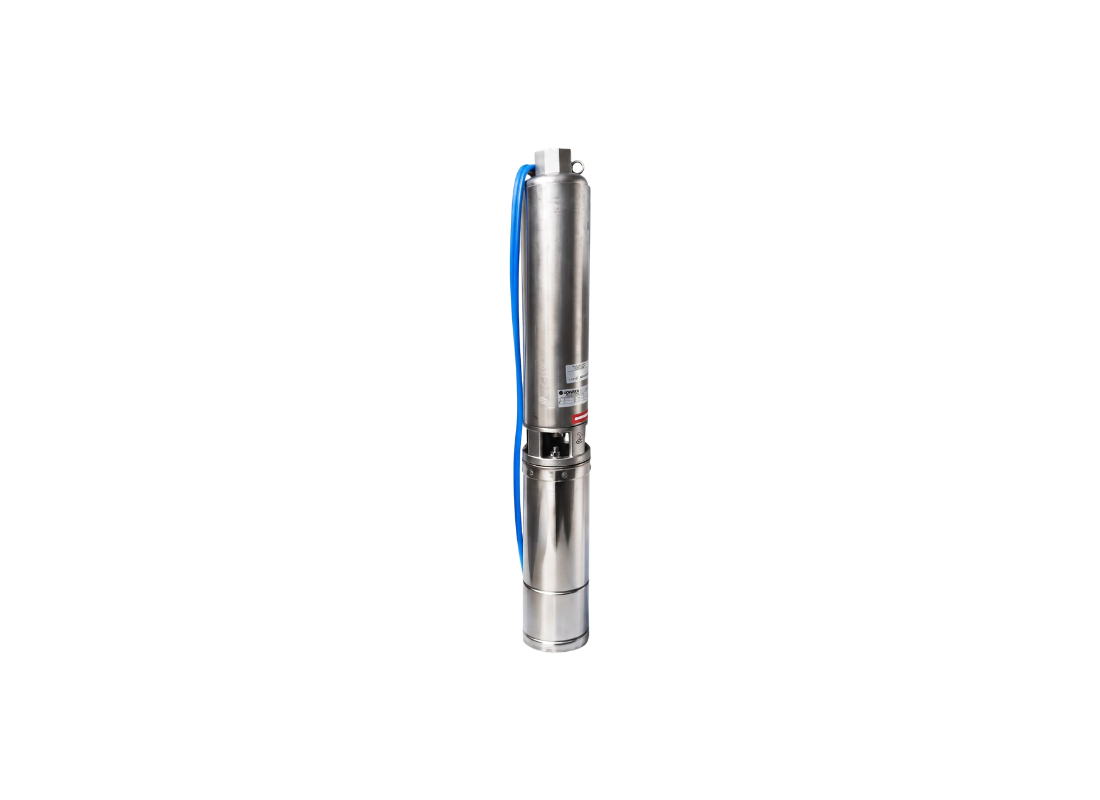

Lowara 2GS15-1 Stainless Steel 4" Submersible Bore Pump with Floating Impeller
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
Intensive sprinkler irrigation duties extracting fluid from significantly deep subterranean reserves are handled effectively by this submersible pump. It serves agricultural water management where reliable high-head delivery is essential, with a floating impeller design that maintains performance in water containing suspended solids.
Wired for a 240V single-phase connection, the 1.5 kW motor draws 10.5 Amps during normal operation. Maximum flow reaches 50 L/Min with maximum head of 167 metres. The hydraulic characteristics support sprinkler irrigation network requirements effectively.
Floating stack construction processes liquids containing up to 150 g/m³ of suspended sand. The front wear ring works in conjunction with the floating impeller to improve abrasion resistance, while the hexagonal shaft provides effective impeller drive. An integrated check valve in the upper casing protects the fluid pathway.
Constructed with a 304 Stainless Steel casing and technopolymer impellers. The discharge head is precision-cast stainless steel. The complete single-phase model includes the control box and heatshrink kit for immediate setup.
FEATURES
- Floating impeller design handles sand concentrations up to 150 g/m³
- Hexagonal stainless steel shaft provides effective impeller drive across all stages
- Front wear ring works in conjunction with the floating impeller to improve abrasion resistance
- Non-return valve prevents water column drainage on motor shutdown
- AISI 304 stainless steel casing offers corrosion resistance in submerged environments
- Technopolymer impeller provide lightweight technopolymer construction for smoother motor starts
- Includes control box and heatshrink kit for rapid installation
SPECIFICATIONS
| Max Flow | 50 L/Min |
| Max Head | 167 m |
| Power | 1.5 kW / 240v |
| Rated Current | 10.5 Amps |
| Suitable For | Sprinkler Irrigation |
| Body Material | 304 Stainless Steel |
| Liquid Temperature | Maximum 35°C |
| Outlet Size | 32 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Does this deep-well pump prevent vertical water drainage on shutdown?
An integrated check valve in the upper casing of the 2GS15M locks the vertical water column to prevent drainage upon shutdown.
What is the maximum lift height of this irrigation pump?
Delivering high lift for deep irrigation networks, the 2GS-15M achieves a maximum head of 167 metres at 50 L/Min.
What are the running current and electrical power specifications?
Operating on a 240 V single-phase connection, the 1.5 kW motor of the 2GS 15M draws 10.5 Amps during normal duty.
How does the floating impeller design prevent sand binding?
Floating impellers in the 2GS_15M pass sand concentrations up to 150 g/m3 easily without performance loss.
What control accessories are included with this single-phase model?
The 2GS15M includes an external motor control box and a thermal shrink kit for immediate field setup.
