SKU: 2GS30-3

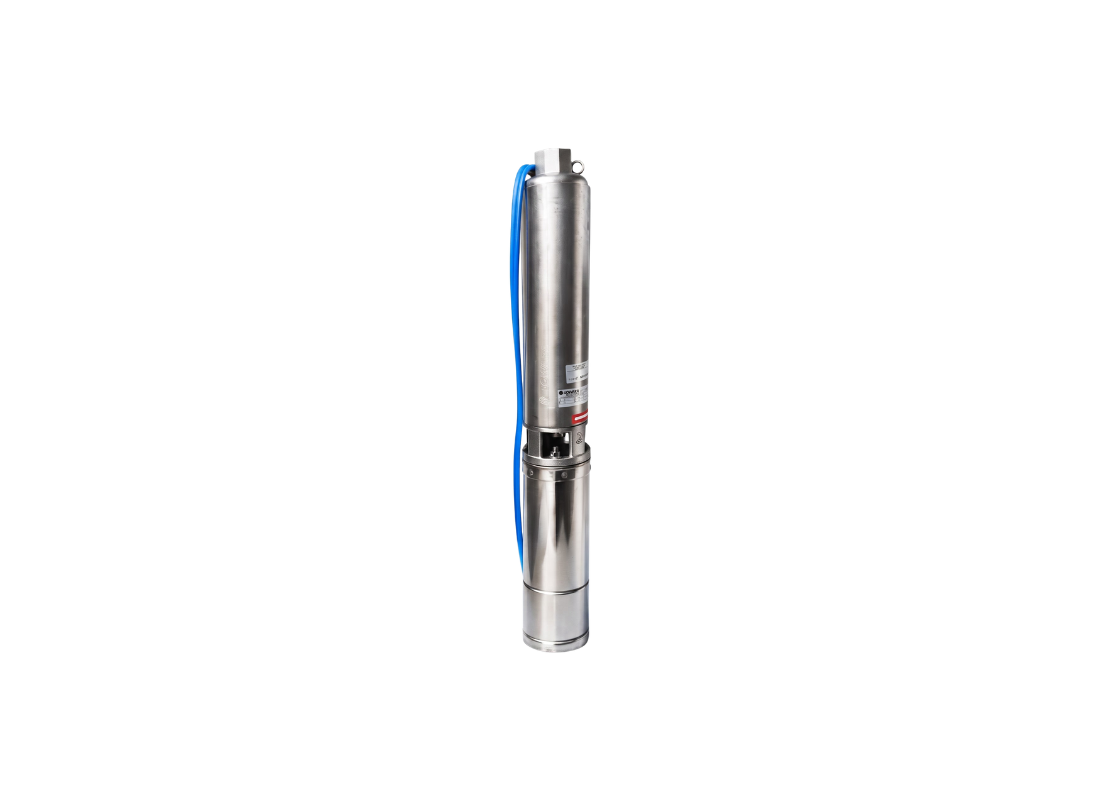

Lowara 2GS30-3 Stainless Steel 3-Phase 4" Submersible Bore Pump with Floating Impeller
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
Intensive sprinkler irrigation duties from significantly deep subterranean aquifers are the primary application for this submersible pump, serving agricultural water management where reliable high-head, moderate-flow delivery is essential. The floating impeller configuration maintains stable hydraulic performance in water containing suspended solids.
Wired for a 415V three-phase connection, the 3 kW motor draws 7.1 Amps during normal operation. Maximum flow reaches 50 L/Min with maximum head of 309 metres. The hydraulic performance characteristics support deep irrigation network requirements effectively.
Floating internal design permits the pump to handle water containing up to 150 g/m³ of suspended sand. The front wear ring works in conjunction with the floating impeller to improve abrasion resistance, while the hexagonal shaft ensures effective impeller drive. An integrated check valve in the upper casing protects the fluid pathway.
Built with a 304 Stainless Steel casing and technopolymer hydraulic components. The discharge head is precision-cast stainless steel. The complete three-phase model includes a professional-grade heatshrink kit for waterproof cable connections.
FEATURES
- Floating impeller system handles sand concentrations up to 150 g/m³
- Hexagonal stainless steel shaft provides effective impeller drive
- Front wear ring works in conjunction with the floating impeller to improve abrasion resistance
- Non-return valve prevents water column drainage on motor shutdown
- AISI 304 stainless steel casing offers corrosion resistance in submerged environments
- Technopolymer impeller provide corrosion resistance with lightweight technopolymer construction
- Supplied with heatshrink kit for waterproof electrical connections
SPECIFICATIONS
| Max Flow | 50 L/Min |
| Max Head | 309 m |
| Power | 3 kW / 415v |
| Rated Current | 7.1 Amps |
| Suitable For | Sprinkler Irrigation |
| Body Material | 304 Stainless Steel |
| Liquid Temperature | Maximum 35°C |
| Outlet Size | 32 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What is the maximum head rating of this high-pressure irrigation pump?
Reaching exceptional depths, the 2GS30T delivers an extraordinary maximum head of 309 metres with flow up to 50 L/Min.
How does this deep aquifer pump resist wear from abrasive sediment?
Floating impellers and front wear rings enable the 2GS-30T to process sand concentrations up to 150 g/m3 without damage.
What electrical power and current are needed for this 3 kW motor?
Powered by a 415 V three-phase supply, the 3 kW motor of the 2GS 30T draws 7.1 Amps during operation.
Does this pump secure the water column against reverse drainage?
An integrated check valve in the upper casing of the 2GS_30T protects the fluid pathway against backflow.
What jointing kit is included for deep submersible installations?
Supplied with the 2GS30T is a professional-grade heatshrink kit designed for watertight down-hole cable joints.
