SKU: 3HM03P-PT8
Lowara 3HM03P-PT8 Stainless Steel Multistage Pressure Pump for Garden Irrigation with 8 Litre Tank
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview

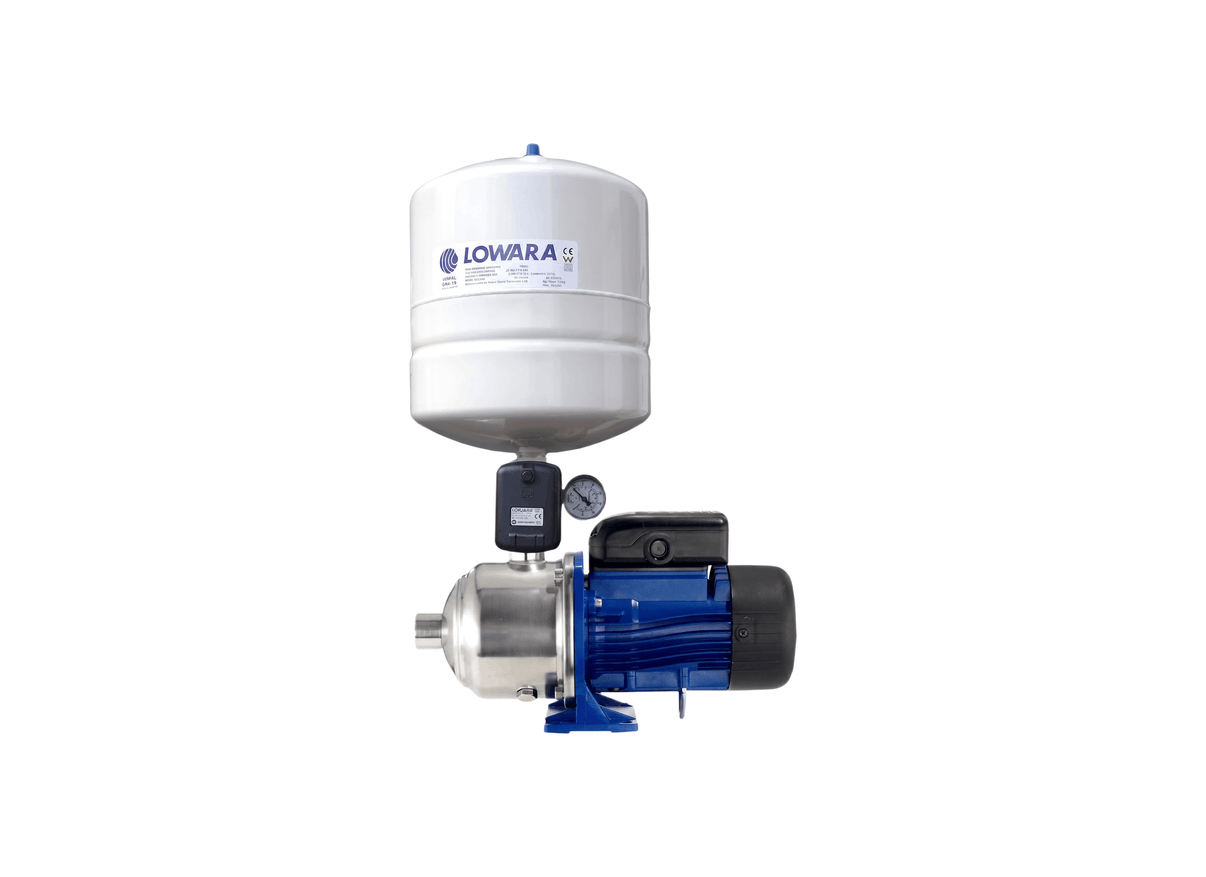

Reliable water pressure is essential for comfortable modern living, and the Lowara 3HM03P-PT8 ensures it is delivered consistently. This packaged system combines a horizontal multistage pump with an 8-litre APT pressure vessel, providing stable pressure for domestic supply, garden watering, and light commercial transfer applications in buildings where installation space is limited.
Constructed from AISI 304 stainless steel with Noryl™ impellers, the pump generates a maximum head of approximately 31.2 metres and a maximum flow rate of 70 litres per minute. The 0.5 kW motor runs on a single-phase 220-240 V supply with a rated current of 2.9 Amps. Suction and discharge ports are threaded Rp 25 mm. The pump handles clean liquids at temperatures up to 60°C.
The 8-litre pressure vessel dampens pressure fluctuations and reduces motor cycling. The mechanical seal is ceramic, carbon, and EPDM. The motor is protected to IP55 and insulated to Class F. Automatic reset thermal protection is included as standard. The horizontal close-coupled configuration is designed for floor mounting in equipment rooms or utility areas with adequate clearance for maintenance access.
Electrical connections are made through a pre-wired terminal junction box. The pump is certified for drinking water use under WRAS and ACS. The compact footprint suits installations where space is at a premium, including small plant rooms and domestic cupboards. The unit is supplied as a complete package requiring only plumbing and electrical connections to commission.
FEATURES
- 8-litre APT pressure vessel provides pressure stabilisation for residential systems.
- Noryl impellers for corrosion-resistant clean-water service.
- IP55 motor enclosure protects internal components from environmental exposure.
- WRAS and ACS certification for drinking water use.
- Built-in thermal overload protection with automatic reset functionality.
- Threaded Rp connections for straightforward integration with pipework systems.
SPECIFICATIONS
| Max Flow | 70 L/Min |
| Max Head | 31.2 m |
| Power | 0.5 kW / 240v |
| Rated Current | 2.9 Amps |
| Suitable For | Water Supply / Irrigation |
| Body Material | 304 Stainless Steel |
| Liquid Temperature | Maximum 60°C |
| Inlet Size | 25 mm |
| Outlet Size | 25 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Why does the Lowara 3HM03P-PT8 come fitted with an 8-litre pressure tank?
The 8L tank keeps water pressurized so the pump doesn't have to start up every time you open a tap slightly. It stops rapid motor cycling, saving power and protecting the motor from wear.
How much water flow and head pressure can I get from the Lowara 3HM03P PT8?
You get up to 70 L/Min of water flow and a max pressure head of 31.2 m. That provides strong, steady tap pressure across multi-story bathrooms and garden hoses.
Is the Lowara 3HM03P/PT8 motor safe to install outside in the weather?
Yes, it features an IP55 weatherproof casing to handle outdoor rain and dust. It operates on 220–240V single-phase power and includes built-in thermal overload protection.
What materials is the Lowara 3HM03P_PT8 made from and can it handle warm water?
It is constructed with a corrosion-resistant 304 Stainless Steel body and impellers. It safely handles clean water at temperatures up to 60°C.
