SKU: 3HM06P-APC22

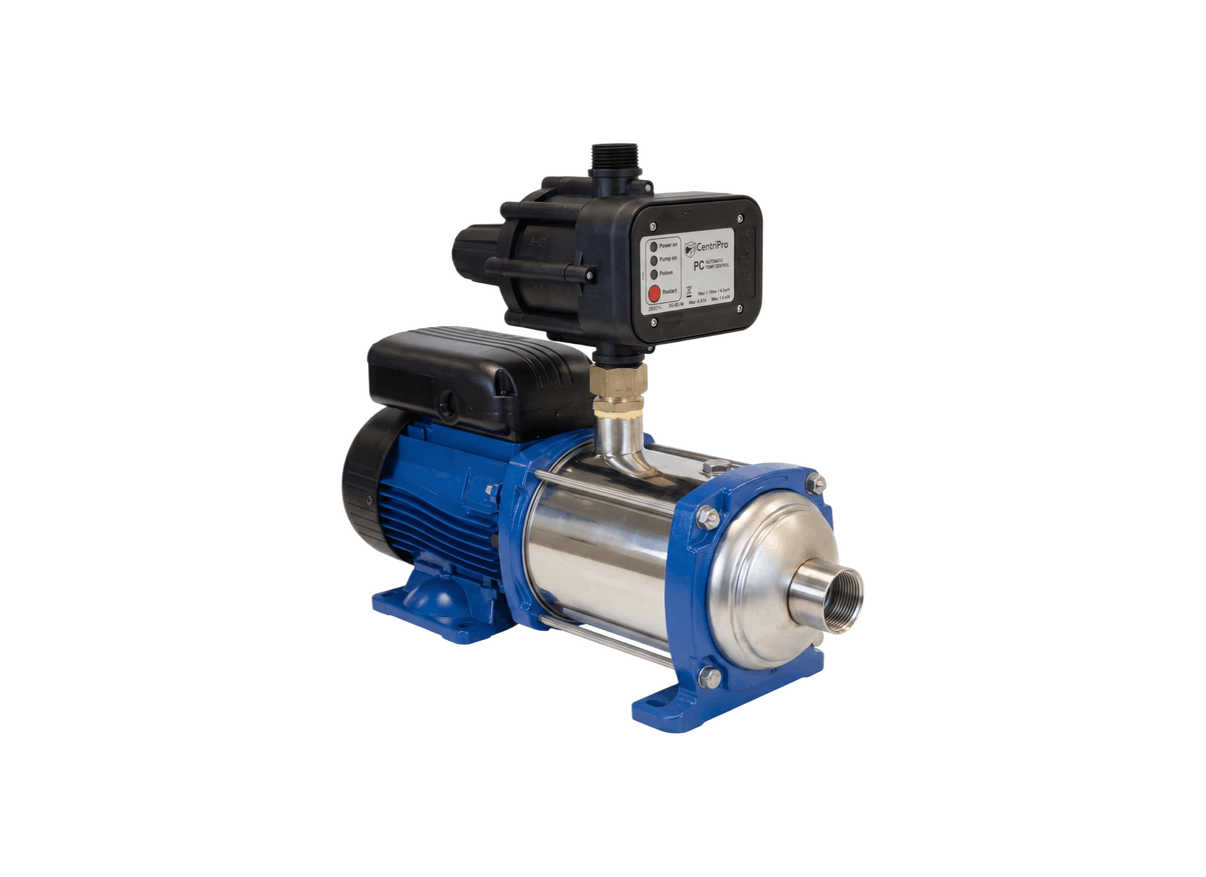

Lowara 3HM06P-APC22 Stainless Steel Multistage Pressure Pump for Yard Watering with Electronic Controller
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
For high-pressure automated boosting, the Lowara 3HM06P-APC22 delivers exceptional performance. This system combines a 63-metre pump platform with an APC22 electronic pressure controller, making it ideal for residential and light commercial applications requiring elevated pressure delivery with automated pump control, such as multi-storey domestic supply and larger irrigation installations.
The pump features an AISI 304 stainless steel body with Noryl™ impellers. Maximum head is approximately 63 metres and maximum flow is 70 litres per minute. The 0.95 kW motor operates on 220-240 V single-phase, drawing 5.29 Amps. Connections are Rp 25 mm threaded. The pump is rated for clean liquids up to 60°C.
The APC22 controller provides automatic pump start-stop based on system pressure. The mechanical seal is ceramic, carbon, and EPDM. The motor enclosure is IP55 with Class F insulation. Thermal protection is provided by an automatic reset overload device. The horizontal close-coupled design is intended for floor mounting.
Installation requires a level, frost-protected surface with adequate ventilation. The pre-wired terminal junction box simplifies electrical connection. The pump is certified for drinking water use under WRAS and ACS. The unit should be installed with adequate clearance for maintenance access. The electronic pressure controller enables automated pump operation without an APT pressure vessel.
FEATURES
- APC22 electronic pressure controller provides automatic pump start-stop operation.
- Controller enables automated pump operation without an APT pressure vessel.
- 0.95 kW motor delivers elevated head capability for demanding installations.
- Threaded Rp 25 mm connections for standard plumbing integration.
- IP55 motor enclosure protects against dust and moisture ingress.
- WRAS and ACS certification for drinking water use.
- Automatic reset thermal protection safeguards the motor during operation.
SPECIFICATIONS
| Max Flow | 70 L/Min |
| Max Head | 63 m |
| Power | 0.95 kW / 240v |
| Rated Current | 5.29 Amps |
| Suitable For | Water Supply / Irrigation |
| Body Material | 304 Stainless Steel |
| Liquid Temperature | Maximum 60°C |
| Inlet Size | 25 mm |
| Outlet Size | 25 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Does the Lowara 3HM06P APC22 require a lot of ongoing maintenance?
Not at all. It's designed for hassle-free daily operation with long-life sealed bearings and heavy-duty mechanical shaft seals. Just keep your water inlet strainer clear and it'll run reliably for years.
How much water flow and pressure can I get from the Lowara 3HM06P APC22?
You get up to 70 litres per minute of water flow and a max pressure head of 63 metres. That's plenty of punch to run multiple showers, taps, or garden hoses at the same time without annoying pressure drops.
What materials is the Lowara 3HM06P_APC22 made from and can it handle warm water?
It's built with a 304 stainless steel body and stainless steel impellers, so it won't rust or corrode over time. It easily handles clean water at temperatures up to 60°C.
Is the Lowara 3HM06P/APC22 motor safe to install outside in the weather?
Yes, it is. The 0.95 kW motor has an IP55 weatherproof casing, so it handles rain, dust, and outdoor conditions with no trouble. It plugs into standard home power and includes built-in thermal overload protection.
