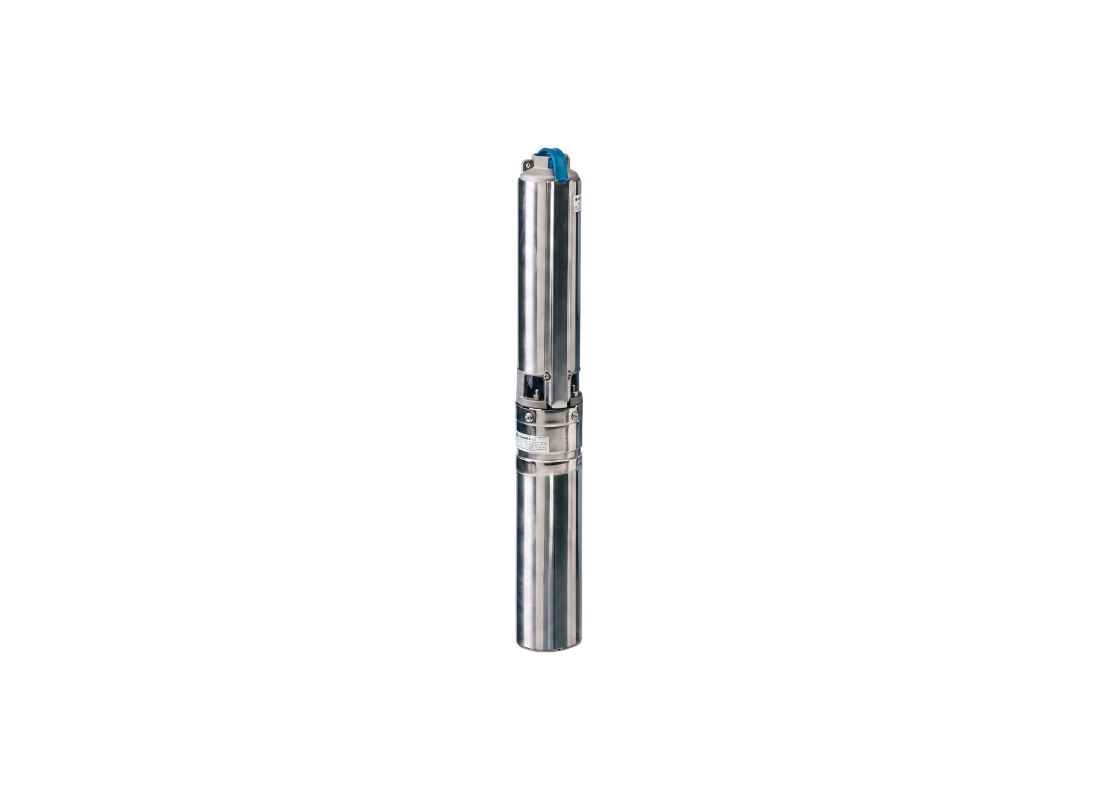

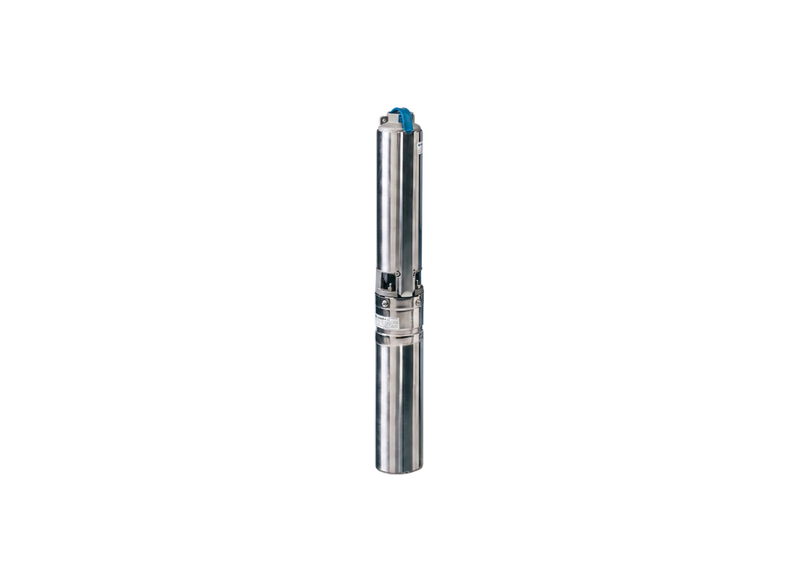

Lowara 4GS03-3 Stainless Steel 3-Phase 4" Submersible Bore Pump with Floating Impeller
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
This submersible pump is developed for continuous primary water supply networks from 4-inch wells, serving high-efficiency, shallow-depth fluid management duties. The floating impeller configuration supports reliable operation in groundwater containing suspended particulates.
Powered by a 415V three-phase motor rated at 0.37 kW, drawing 1.2 Amps during normal operation. Maximum flow reaches 90 L/Min with maximum head of 24 metres. The hydraulic performance supports consistent water delivery for supply networks.
Floating stack construction handles sand concentrations up to 150 g/m³ without mechanical binding. The front wear ring works in conjunction with the floating impeller to improve abrasion resistance, while the hexagonal shaft provides effective impeller drive. An embedded stainless steel check valve arrests the falling water column when power is cut.
Manufactured with a 304 Stainless Steel casing and technopolymer hydraulic components. The discharge head is precision-cast stainless steel. Supplied with an industrial heatshrink kit for waterproof electrical splices.
FEATURES
- Floating impeller system handles sand concentrations up to 150 g/m³
- Hexagonal stainless steel shaft provides effective impeller drive across all stages
- Front wear ring works in conjunction with the floating impeller to improve abrasion resistance
- Non-return valve prevents water column drainage on motor shutdown
- AISI 304 stainless steel casing offers corrosion resistance in submerged environments
- Technopolymer impeller provide lightweight technopolymer construction for smoother motor starts
- Supplied with heatshrink kit for waterproof electrical connections
SPECIFICATIONS
| Max Flow | 90 L/Min |
| Max Head | 24 m |
| Power | 0.37 kW / 415v |
| Rated Current | 1.2 Amps |
| Suitable For | Water Supply System |
| Body Material | 304 Stainless Steel |
| Liquid Temperature | Maximum 35°C |
| Outlet Size | 32 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What are the flow and pressure capabilities for shallow water supply?
The 4GS03T delivers a maximum flow of 90 L/Min with a head reaching up to 24 metres for shallow well water supply.
What three-phase electrical ratings apply to this motor?
Powered by a 415 V three-phase motor rated at 0.37 kW, the 4GS-03T draws 1.2 Amps during duty.
Does this pump arrest vertical water column drainage when deactivated?
An embedded stainless steel check valve inside the 4GS 03T arrests the falling water column when power is cut.
What materials protect this submersible pump against corrosion?
Built with an AISI 304 stainless steel casing and technopolymer components, the 4GS_03T offers durable corrosion resistance.
How does this model manage sand in shallow borehole sources?
Floating stack construction allows the 4GS03T to handle sand concentrations up to 150 g/m3 without seizing.
