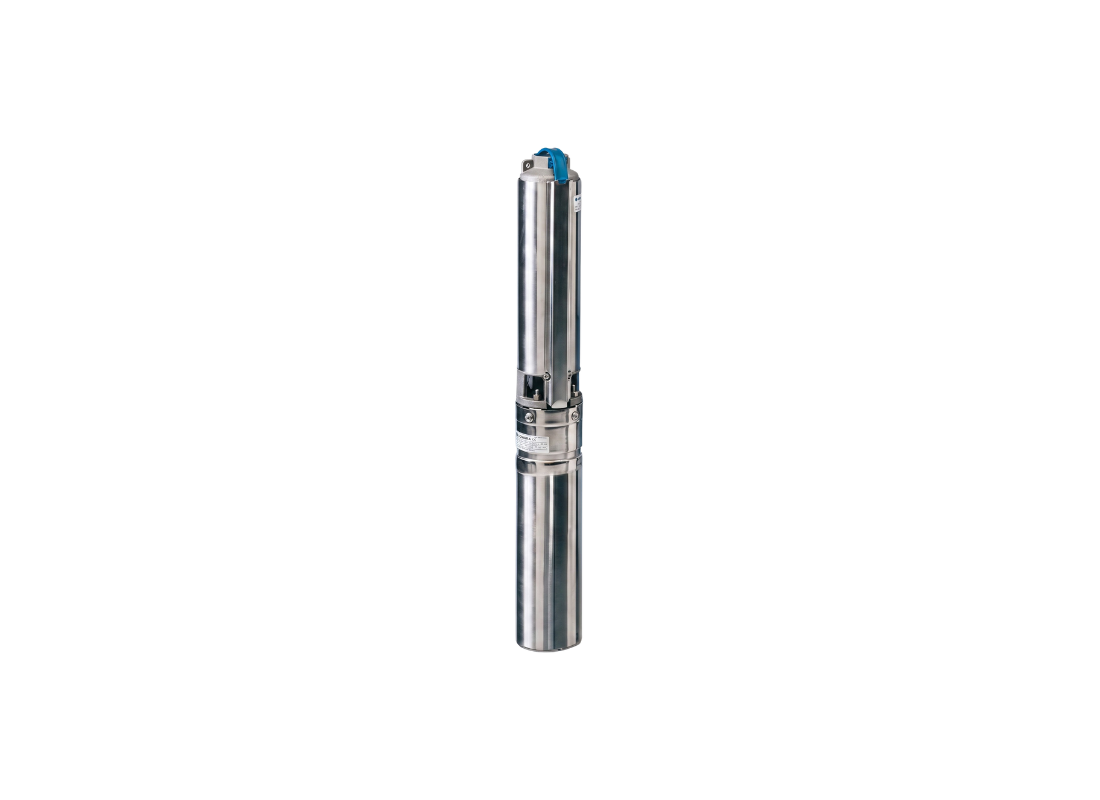

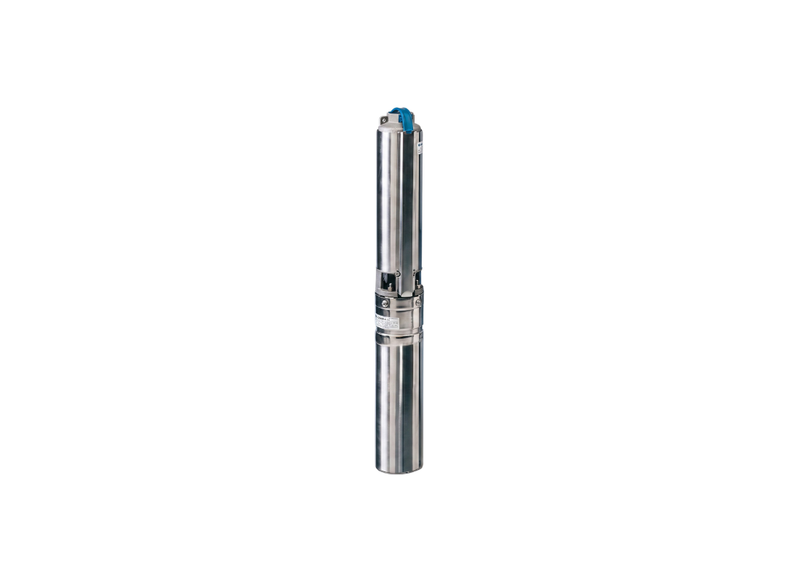

Lowara 4GS05-3 Stainless Steel 3-Phase 4" Submersible Bore Pump with Floating Impeller
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
Fire protection systems requiring reliable water from 4-inch subterranean reserves are the focus of this submersible pump, serving critical safety infrastructure where consistent high-flow delivery is essential. The floating impeller design maintains performance in groundwater containing suspended solids.
Operating on a 415V three-phase supply, the 0.55 kW motor draws 1.7 Amps during normal duty. Maximum flow reaches 90 L/Min with maximum head of 42 metres. The hydraulic performance supports fire protection system requirements effectively.
Floating internal design permits the pump to handle water containing up to 150 g/m³ of suspended sand. The front wear ring works in conjunction with the floating impeller to improve abrasion resistance, while the hexagonal shaft ensures effective impeller drive. A non-return valve locks the vertical water column on shutdown.
Built with a 304 Stainless Steel casing and technopolymer hydraulic components. The discharge head is precision-cast stainless steel. Supplied with an industrial-grade heatshrink kit for waterproof cable splices.
FEATURES
- Floating impeller system handles abrasive groundwater without performance loss
- Hexagonal stainless steel shaft provides effective impeller drive
- Front wear ring works in conjunction with the floating impeller to improve abrasion resistance
- Non-return valve prevents water column reversal on motor shutdown
- AISI 304 stainless steel casing offers corrosion resistance in submerged operation
- Technopolymer impeller provide corrosion resistance with lightweight technopolymer construction
- Supplied with heatshrink kit for waterproof electrical connections
SPECIFICATIONS
| Max Flow | 90 L/Min |
| Max Head | 42 m |
| Power | 0.55 kW / 415v |
| Rated Current | 1.7 Amps |
| Suitable For | Fire Protection System |
| Body Material | 304 Stainless Steel |
| Liquid Temperature | Maximum 35°C |
| Outlet Size | 32 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How does this fire pump protect against reverse rotation from falling water?
A built-in non-return valve in the 4GS05T locks the vertical water column on shutdown to eliminate reverse rotation.
What are the maximum flow and head outputs of this safety reserve pump?
Reaching up to a 42 m head, the 4GS-05T delivers a high-flow delivery of 90 L/Min for critical fire protection duties.
What electrical power does this three-phase borehole motor consume?
The 0.55 kW motor of the 4GS 05T operates on a 415 V three-phase supply, drawing 1.7 Amps.
Can this pump handle abrasive groundwater without efficiency loss?
Floating impellers in the 4GS_05T handle abrasive water with suspended sand up to 150 g/m3 without performance loss.
What accessory is included to splice down-hole power cables?
An industrial-grade heatshrink kit is supplied with the 4GS05T to facilitate waterproof underwater electrical splices.
