SKU: 4GS07-12L

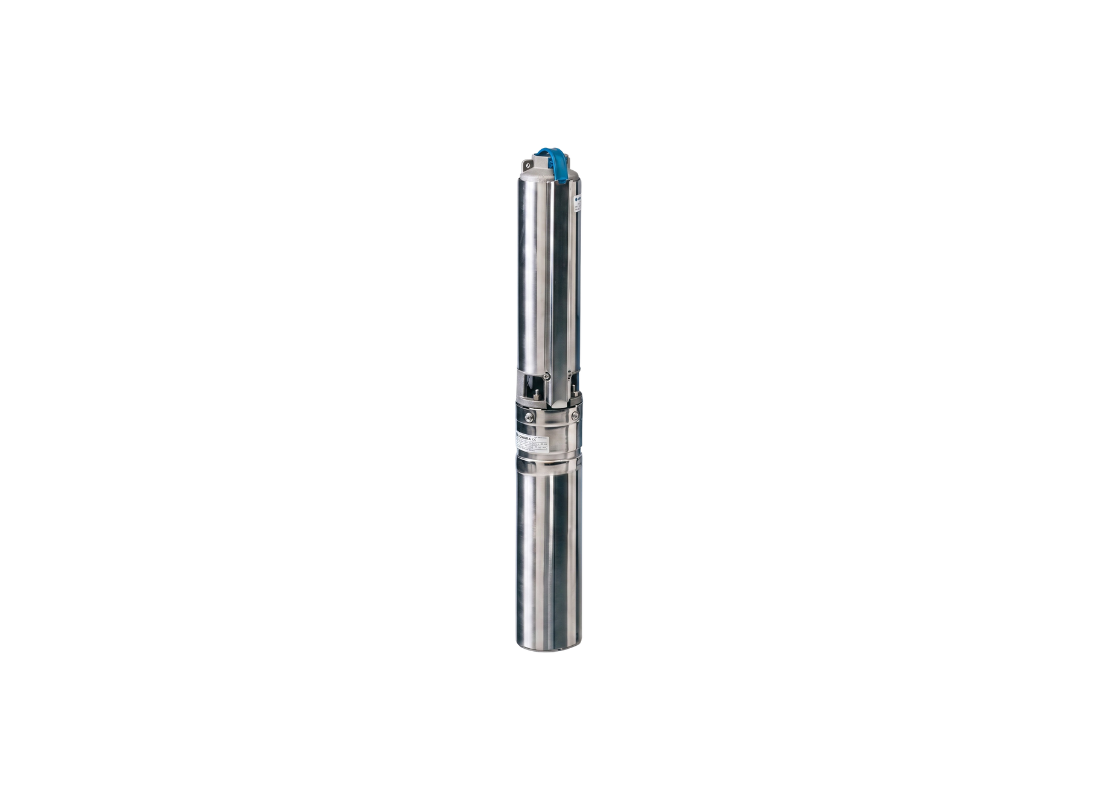

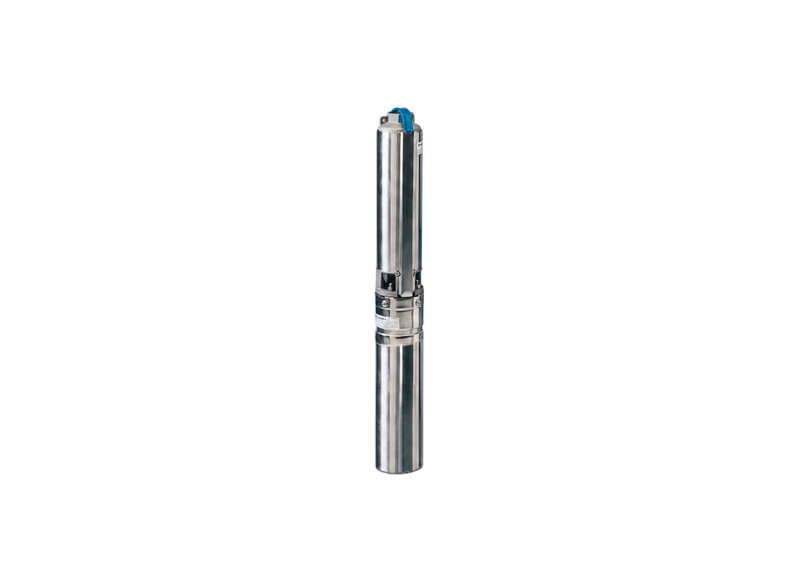

Lowara 4GS07-12L Stainless Steel 2-Wire 4" Submersible Bore Pump Floating Impeller
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
Reliable agricultural irrigation and complex domestic water supply depend on the Lowara 4GS07-12L, a 4-inch 2-wire submersible bore pump with an internal capacitor. This unit removes the need for an external control panel while delivering efficient fluid transfer. The floating impeller design supports performance in water containing suspended solids.
A 0.75 kW single-phase motor on 240 V draws 5.6 Amps during normal operation. Maximum flow reaches 90 L/Min, while maximum head extends to 54 metres at shut-off. The motor requires a minimum fluid velocity of 8 cm/s around the casing for adequate cooling, and supports up to 30 starts per hour.
Inside the hydraulic section, floating impellers allow suspended particles up to 150 g/m³ to pass without compromising internal clearances. The hexagonal pump shaft delivers torque reliably across all stages, while the front wear ring works with the floating impeller to improve abrasion resistance. An integrated stainless steel check valve prevents destructive backflow when the motor stops.
Precision-cast stainless steel upper and lower support brackets maintain alignment between the pump and motor. The 99 mm diameter casing fits standard 4-inch boreholes, with a 32 mm threaded outlet. Rated for continuous immersion in liquids up to 35°C, the complete unit comes with a heatshrink kit for secure electrical connections.
Features
- Two-wire motor design with built-in capacitor simplifies electrical installation
- Floating impeller system handles abrasive groundwater without performance loss
- Hexagonal stainless steel shaft provides effective drive across all pump stages
- Front wear ring improves resistance to abrasive wear in sandy conditions
- Integrated non-return valve prevents reverse flow on motor shutdown
- AISI 304 stainless steel construction offers corrosion resistance during submersion
- Supplied with heatshrink kit for waterproof electrical connections
SPECIFICATIONS
| Max Flow | 90 L/Min |
| Max Head | 54 m |
| Power | 0.75 kW / 240v |
| Rated Current | 5.6 Amps |
| Suitable For | Agricultural Irrigation |
| Body Material | Stainless Steel |
| Liquid Temperature | Maximum 35°C |
| Outlet Size | 32 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How much head can this agricultural irrigation pump generate?
The 4GS07-12L produces up to 54 metres of maximum head with high-flow delivery reaching 90 L/Min.
How does this pump maintain alignment between the motor and wet end?
Precision-cast stainless steel upper and lower support brackets maintain rigid alignment under load in the 4GS-07-12L.
What are the electrical power consumption and current ratings?
Operating on 240 V single-phase power, the 0.75 kW motor in the 4GS 07 12L draws 5.6 Amps.
What discharge port size connects this pump to distribution pipework?
The 4GS 07 12L features a standard 32 mm threaded discharge outlet for connecting to rising pipes.
What jointing kit is supplied for down-hole electrical wiring?
A watertight heatshrink kit is supplied with the 4GS07_12L for reliable down-hole electrical cable jointing.
