SKU: 4GS11-3

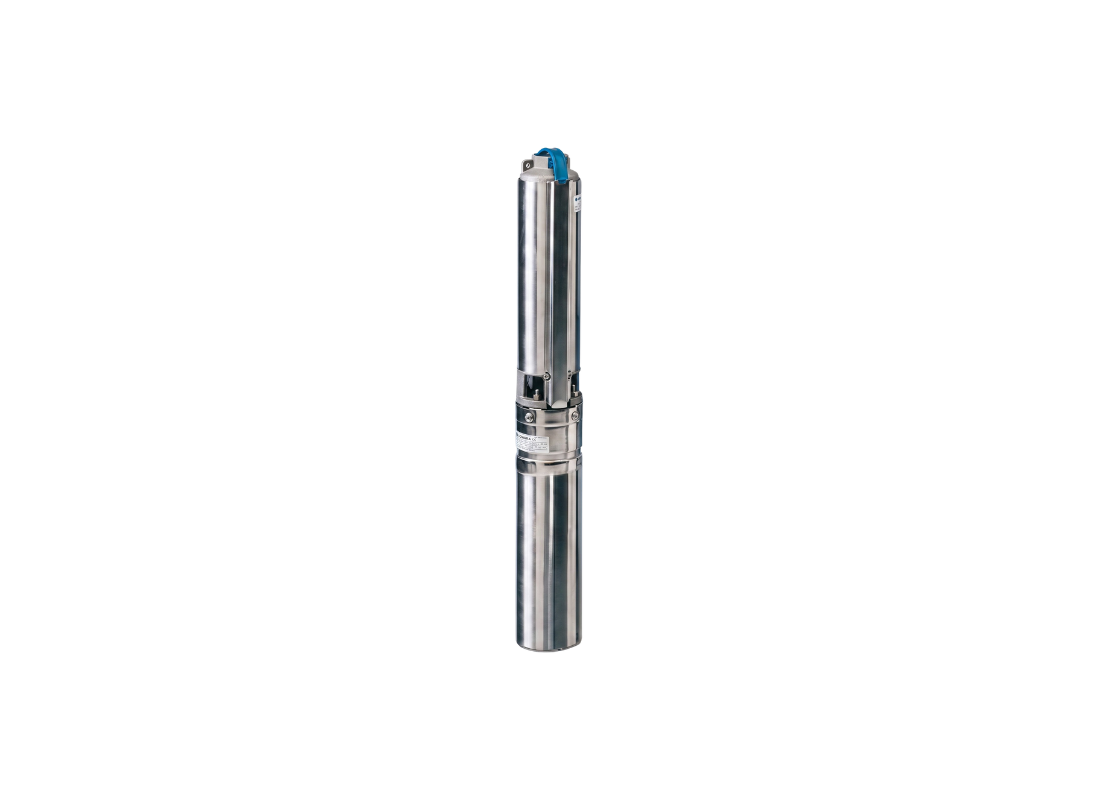

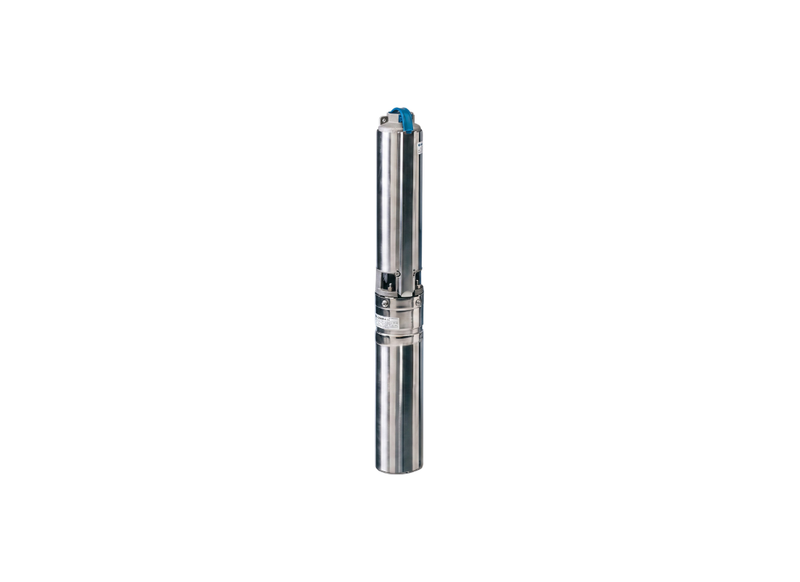

Lowara 4GS11-3 Stainless Steel 3-Phase 4" Submersible Bore Pump with Floating Impeller
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
Pressure boosting from 4-inch wells into holding tanks and distribution systems is the purpose of this submersible pump, serving demanding fluid transfer applications where consistent high-volume delivery is essential. The floating impeller design maintains stable hydraulic performance in groundwater containing suspended particulates.
Powered by a 415V three-phase motor rated at 1.1 kW, drawing 3.1 Amps during normal operation. Maximum flow reaches 90 L/Min with maximum head of 84 metres. The hydraulic characteristics support pressure boosting requirements effectively.
Floating stack construction handles sand concentrations up to 150 g/m³ without mechanical binding. The front wear ring works in conjunction with the floating impeller to improve abrasion resistance, while the hexagonal shaft provides effective impeller drive. An integrated metallic check valve prevents back-siphoning into the well.
Manufactured with a 304 Stainless Steel casing and technopolymer hydraulic components. The discharge head is precision-cast stainless steel. Supplied with an industrial heatshrink kit for waterproof electrical splices.
FEATURES
- Floating impeller system handles abrasive groundwater without efficiency loss
- Hexagonal stainless steel shaft provides effective impeller drive across all stages
- Front wear ring works in conjunction with the floating impeller to improve abrasion resistance
- Non-return valve prevents water column reversal on motor shutdown
- AISI 304 stainless steel casing offers corrosion resistance in submerged operation
- Technopolymer impeller provide lightweight technopolymer construction for smoother motor starts
- Supplied with heatshrink kit for waterproof electrical connections
SPECIFICATIONS
| Max Flow | 90 L/Min |
| Max Head | 84 m |
| Power | 1.1 kW / 415v |
| Rated Current | 3.1 Amps |
| Suitable For | Pressure Boosting |
| Body Material | 304 Stainless Steel |
| Liquid Temperature | Maximum 35°C |
| Outlet Size | 32 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How does this pressure booster maintain performance in abrasive groundwater?
Floating stack construction enables the 4GS11T to pump abrasive water containing sand up to 150 g/m3 without efficiency loss.
Does this unit prevent water from siphoning back into the well?
An integrated metallic check valve in the 4GS-11T prevents backflow and stops water from siphoning into the well.
What maximum head and flow are achieved by this borehole booster?
The 4GS 11T reaches a maximum head of 84 metres while maintaining high flow rates up to 90 L/Min.
What is the running current of this three-phase pump motor?
Connected to a 415 V three-phase supply, the 1.1 kW motor of the 4GS_11T draws 3.1 Amps.
What accessory is provided for electrical jointing?
Supplied with an industrial heatshrink kit, the 4GS11T allows secure, waterproof cable splices in deep installations.
