SKU: 4GS15-3

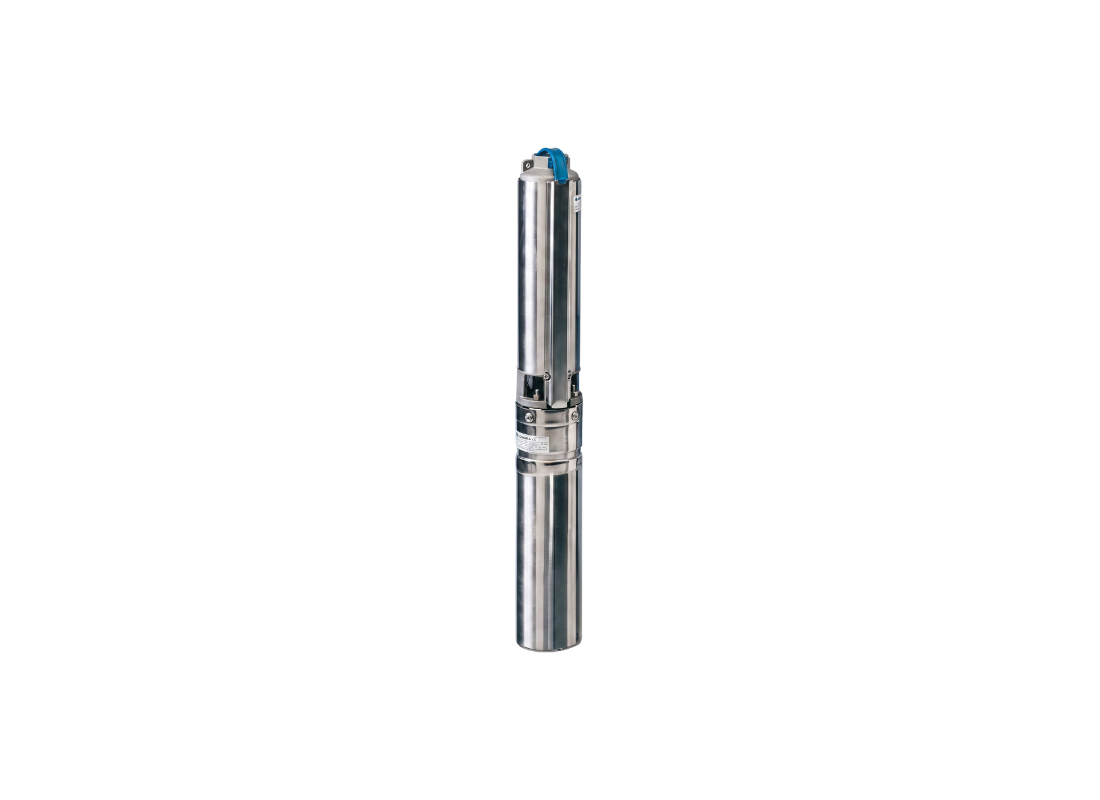

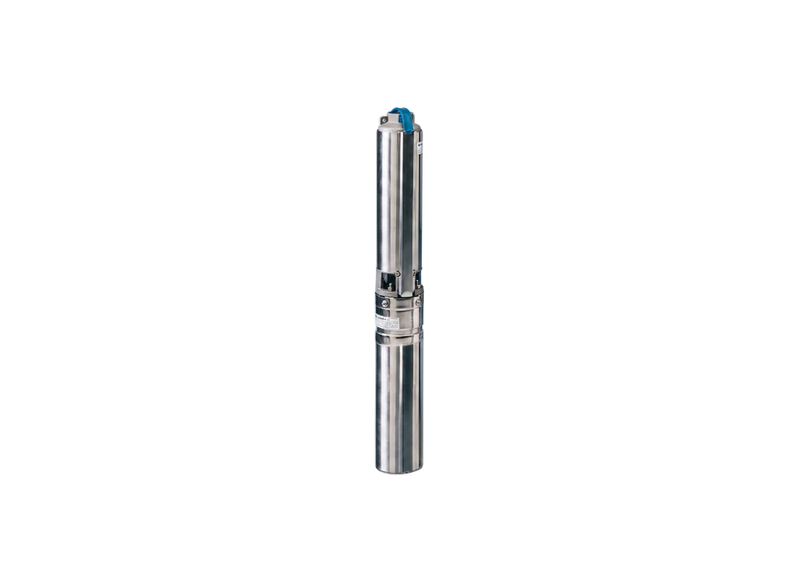

Lowara 4GS15-3 Stainless Steel 3-Phase 4" Submersible Bore Pump with Floating Impeller
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
Municipal water supply networks moving groundwater from 4-inch wells are the primary application for this submersible pump, serving moderate to deep extraction tasks where reliable high-flow delivery is essential. The floating impeller configuration supports continuous operation in water containing suspended solids.
Operating on a 415V three-phase supply, the 1.5 kW motor draws 4.4 Amps during normal operation. Maximum flow reaches 90 L/Min with maximum head of 114 metres. The hydraulic performance supports primary water supply network requirements effectively.
Floating stack construction processes liquids containing up to 150 g/m³ of suspended sand. The front wear ring works in conjunction with the floating impeller to improve abrasion resistance, while the hexagonal shaft provides effective impeller drive. An integrated check valve prevents back-siphoning into the well.
Built with a 304 Stainless Steel casing and technopolymer hydraulic components. The discharge head is precision-cast stainless steel. The complete three-phase model includes a professional-grade heatshrink kit for waterproof electrical connections.
FEATURES
- Floating impeller design handles sand concentrations up to 150 g/m³
- Hexagonal stainless steel shaft provides effective impeller drive
- Front wear ring works in conjunction with the floating impeller to improve abrasion resistance
- Non-return valve prevents water column drainage on motor shutdown
- AISI 304 stainless steel casing offers corrosion resistance in submerged environments
- Technopolymer impeller provide lightweight technopolymer construction for smoother motor starts
- Supplied with heatshrink kit for waterproof electrical connections
SPECIFICATIONS
| Max Flow | 90 L/Min |
| Max Head | 114 m |
| Power | 1.5 kW / 415v |
| Rated Current | 4.4 Amps |
| Suitable For | Water Supply System |
| Body Material | 304 Stainless Steel |
| Liquid Temperature | Maximum 35°C |
| Outlet Size | 32 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What lift height and volume does this municipal extraction pump provide?
The 4GS15T achieves a maximum head of 114 metres with flow capability up to 90 L/Min for municipal supply networks.
How are the impellers driven inside this multistage borehole pump?
A rigid hexagonal stainless steel shaft in the 4GS-15T provides positive impeller drive across all stages without slippage.
What electrical power rating and current draw apply to this motor?
Powered by a 1.5 kW motor on a 415 V three-phase line, the 4GS 15T draws 4.4 Amps during operation.
Does this submersible unit lock descending fluid columns on shutdown?
An integrated check valve in the 4GS_15T halts reverse water column flow and prevents drainage on motor shutdown.
How does the pump design prevent binding from sand particles?
Floating stack construction allows the 4GS15T to tolerate suspended sand concentrations up to 150 g/m3 without seizing.
