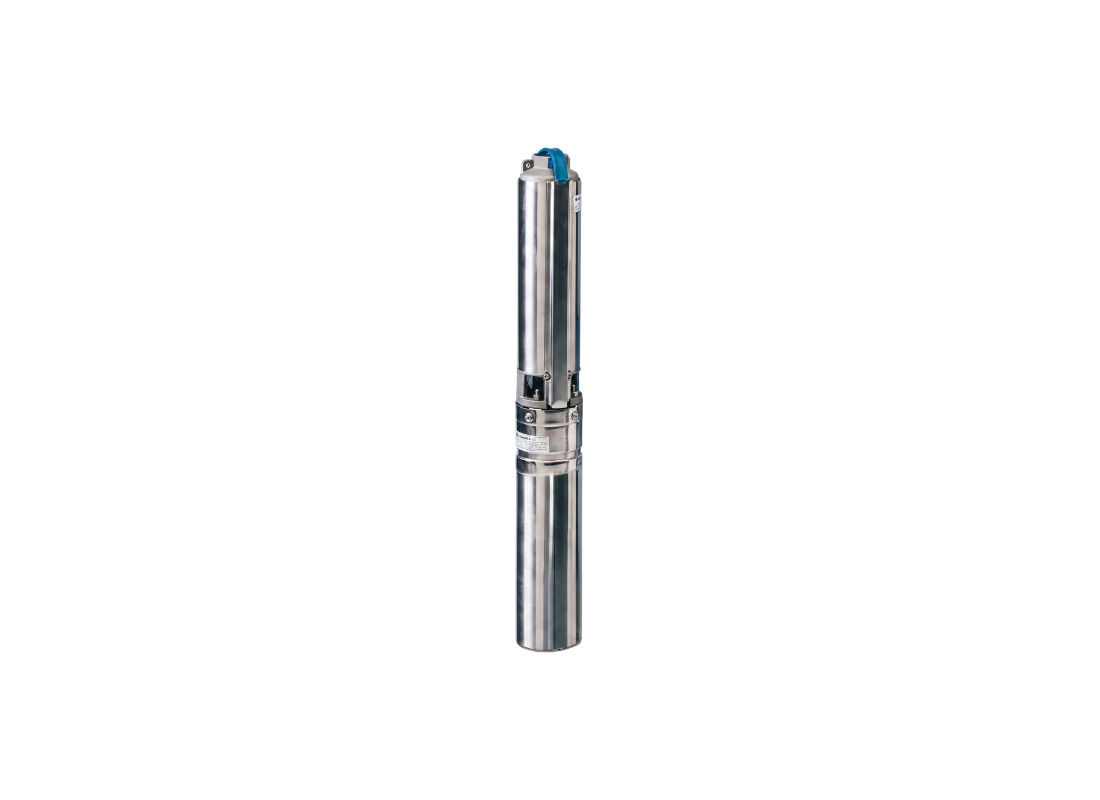

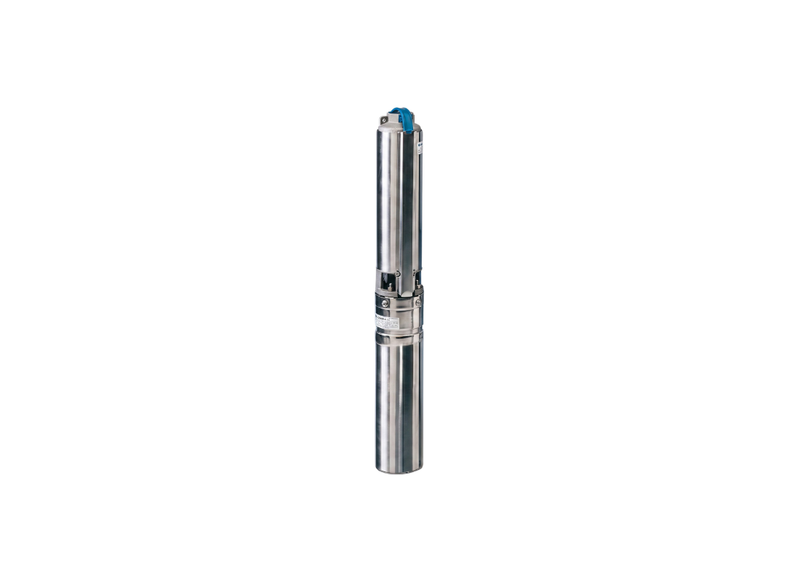

Lowara 4GS22-1 Stainless Steel 4" Submersible Bore Pump with Floating Impeller
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
Pressure boosting scenarios from 4-inch boreholes into distribution grids are effectively managed by this submersible pump, which provides high-volume water delivery for commercial systems where reliable boosting is essential. The floating impeller configuration supports continuous operation in groundwater containing suspended solids.
Connected to a 240V single-phase supply, the 2.2 kW motor draws 14.4 Amps during normal operation. Maximum flow reaches 90 L/Min with maximum head of 162 metres. The hydraulic performance supports demanding pressure boosting requirements effectively.
Floating stack construction processes liquids containing up to 150 g/m³ of suspended sand. The front wear ring works in conjunction with the floating impeller to improve abrasion resistance, while the hexagonal shaft provides effective impeller drive. A heavy-duty non-return valve is pre-installed at the outlet.
Constructed with a 304 Stainless Steel casing and technopolymer hydraulic components. The discharge head is precision-cast stainless steel. The complete single-phase package includes an external starting control box and watertight heatshrink kit.
FEATURES
- Floating impeller design handles abrasive groundwater without efficiency loss
- Hexagonal stainless steel shaft provides effective impeller drive without slippage
- Front wear ring works in conjunction with the floating impeller to improve abrasion resistance
- Non-return valve prevents water column reversal on motor shutdown
- AISI 304 stainless steel casing offers corrosion resistance in submerged operation
- Technopolymer impeller provide lightweight technopolymer construction for smoother motor starts
- Includes control box and heatshrink kit for rapid installation
SPECIFICATIONS
| Max Flow | 90 L/Min |
| Max Head | 162 m |
| Power | 2.2 kW / 240v |
| Rated Current | 14.4 Amps |
| Suitable For | Pressure Boosting |
| Body Material | 304 Stainless Steel |
| Liquid Temperature | Maximum 35°C |
| Outlet Size | 32 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What flow volume and head does this single-phase commercial booster provide?
The 4GS22M delivers a maximum flow of 90 L/Min with a head reaching up to 162 metres for commercial distribution grids.
How much current does this 2.2 kW motor draw under single-phase supply?
Operating on a standard 240 V single-phase line, the 2.2 kW motor in the 4GS-22M draws 14.4 Amps under load.
What equipment is provided for starting and wiring the pump?
The 4GS 22M comes complete with an external starting control box and a watertight heatshrink kit.
How does this borehole pump prevent mechanical binding from sand?
Floating hydraulic stack construction enables the 4GS_22M to process sand concentrations up to 150 g/m3 without binding.
Does this submersible unit include built-in check valve protection?
A heavy-duty non-return valve pre-installed at the outlet of the 4GS22M prevents water column reversal upon shutdown.
