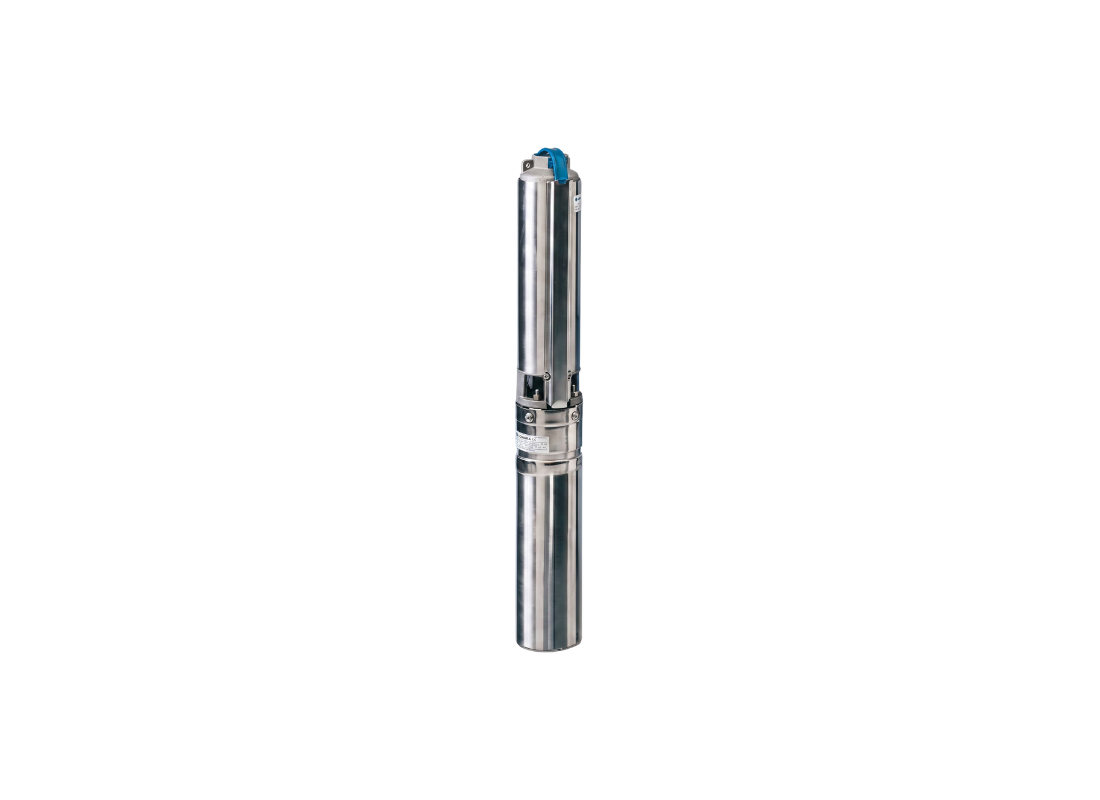

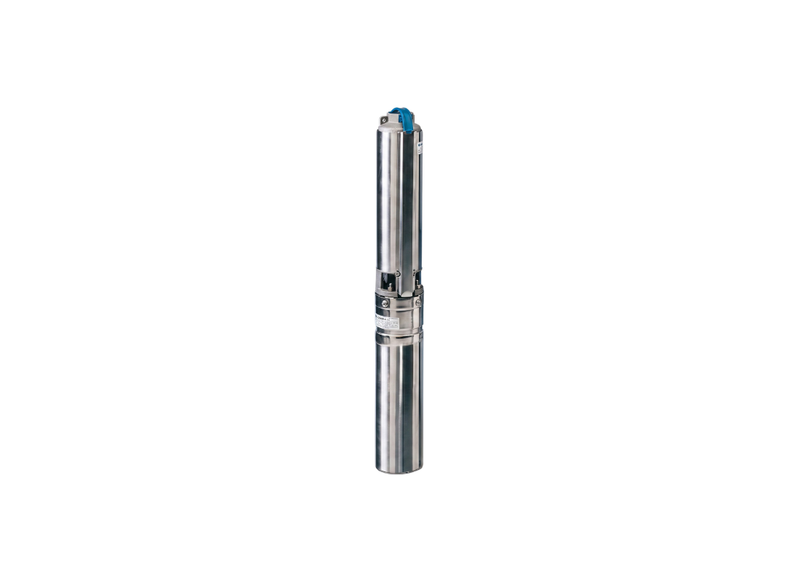

Lowara 4GS22-3 Stainless Steel 3-Phase 4" Submersible Bore Pump with Floating Impeller
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
Heavy sprinkler irrigation duties from deep underground cisterns and boreholes are the focus of this submersible pump, serving agricultural applications where reliable high-flow, high-head delivery is essential. The floating impeller design maintains performance in groundwater containing suspended solids.
Powered by a 415V three-phase motor rated at 2.2 kW, drawing 6.1 Amps during normal operation. Maximum flow reaches 90 L/Min with maximum head of 162 metres. The hydraulic performance supports demanding sprinkler irrigation requirements effectively.
Floating stack construction processes liquids containing up to 150 g/m³ of suspended sand. The front wear ring works in conjunction with the floating impeller to improve abrasion resistance, while the hexagonal shaft provides effective impeller drive. A heavy-duty non-return valve prevents reverse flow of the pressurised column.
Constructed with a 304 Stainless Steel casing and technopolymer hydraulic components. The discharge head is precision-cast stainless steel. Supplied with an industrial heatshrink kit for waterproof electrical splices.
FEATURES
- Floating impeller system handles sand concentrations up to 150 g/m³
- Hexagonal stainless steel shaft provides effective impeller drive
- Front wear ring works in conjunction with the floating impeller to improve abrasion resistance
- Non-return valve prevents water column reversal on motor shutdown
- AISI 304 stainless steel casing offers corrosion resistance in submerged environments
- Technopolymer impeller provide corrosion resistance with lightweight technopolymer construction
- Supplied with heatshrink kit for waterproof electrical connections
SPECIFICATIONS
| Max Flow | 90 L/Min |
| Max Head | 162 m |
| Power | 2.2 kW / 415v |
| Rated Current | 6.1 Amps |
| Suitable For | Sprinkler Irrigation |
| Body Material | 304 Stainless Steel |
| Liquid Temperature | Maximum 35°C |
| Outlet Size | 32 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Does this agricultural irrigation pump include a non-return valve?
A heavy-duty non-return valve inside the 4GS22T prevents reverse flow of the pressurised column when the motor deactivates.
What maximum pressure head and flow volume does this pump deliver?
Generating high head for deep irrigation duties, the 4GS-22T reaches up to 162 metres with a flow rate of 90 L/Min.
How does this borehole pump handle groundwater with high sand content?
Floating stack construction enables the 4GS 22T to handle water containing suspended sand up to 150 g/m3 without binding.
What is the current draw of this three-phase 2.2 kW motor?
Driven by a 2.2 kW motor on a 415 V three-phase line, the 4GS_22T draws 6.1 Amps during normal duty.
What materials protect the pump from underwater corrosion?
Constructed with an AISI 304 stainless steel casing and technopolymer components, the 4GS22T delivers long-term corrosion resistance.
