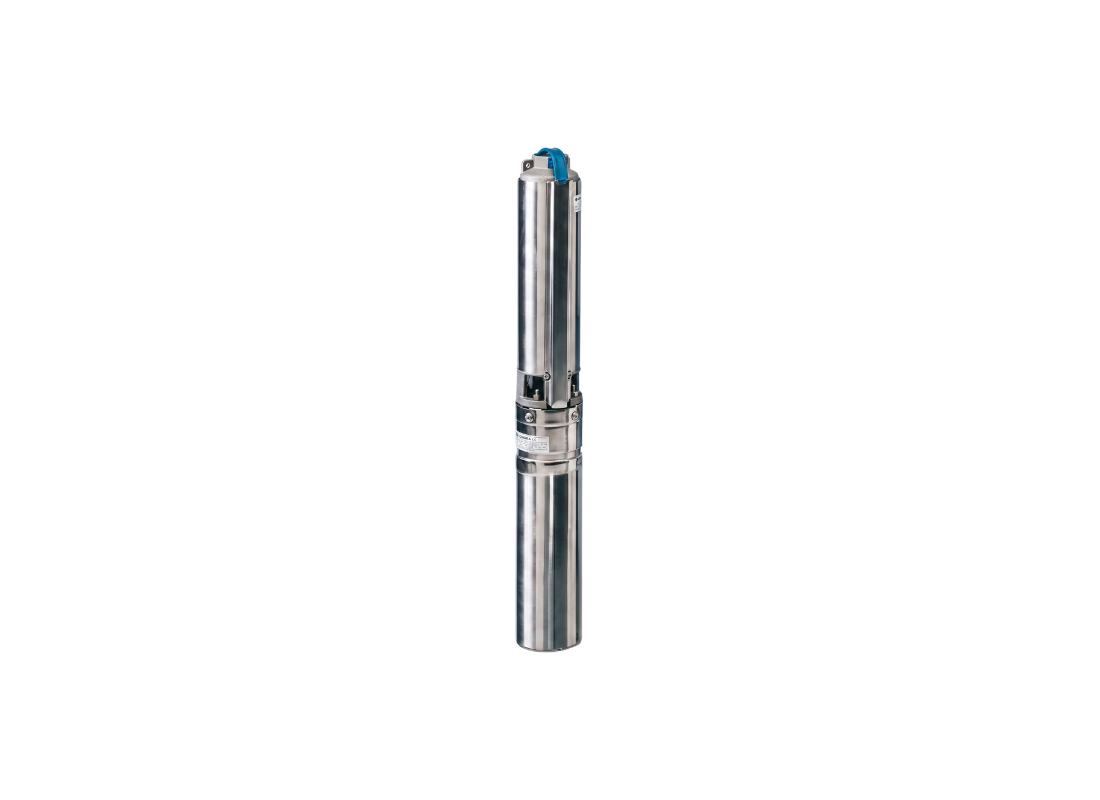

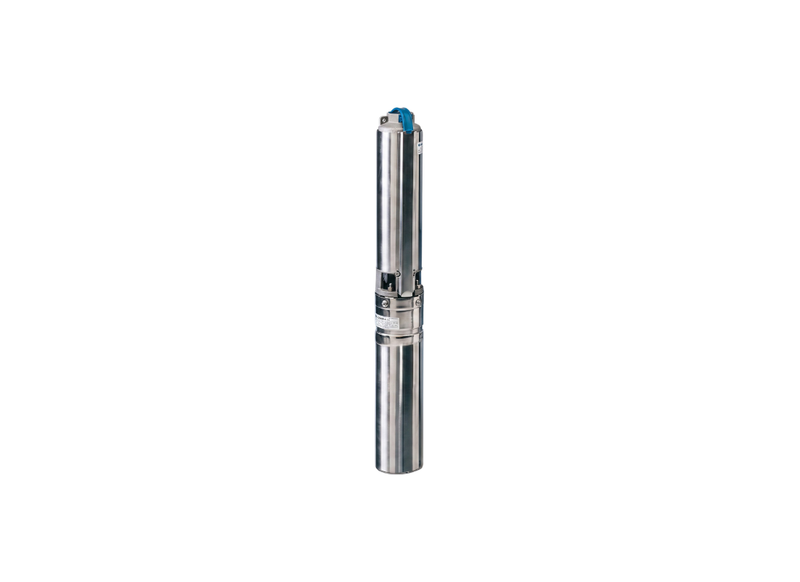

Lowara 4GS40-3 Stainless Steel 3-Phase 4" Submersible Bore Pump with Floating Impeller
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
Heavy-duty pressure boosting networks extracting water from extreme depths within 4-inch boreholes are the primary application for this submersible pump, serving demanding industrial applications where reliable high-volume delivery is essential. The floating impeller configuration supports continuous operation in water containing suspended solids.
Powered by a 415V three-phase motor rated at 4 kW, drawing 9.8 Amps during normal operation. Maximum flow reaches 90 L/Min with maximum head of 288 metres. The hydraulic performance supports demanding pressure boosting requirements effectively.
Floating stack construction processes liquids containing up to 150 g/m³ of suspended sand. The front wear ring works in conjunction with the floating impeller to improve abrasion resistance, while the hexagonal shaft provides effective impeller drive. A robust metallic check valve locks the descending water column.
Manufactured with a 304 Stainless Steel casing and technopolymer hydraulic components. The discharge head is precision-cast stainless steel. Supplied with an industrial thermal shrink kit for waterproof underwater electrical splices.
FEATURES
- Floating impeller system handles abrasive groundwater without efficiency loss
- Hexagonal stainless steel shaft provides effective impeller drive without slippage
- Front wear ring works in conjunction with the floating impeller to improve abrasion resistance
- Non-return valve prevents water column reversal on motor shutdown
- AISI 304 stainless steel casing offers corrosion resistance in deep well applications
- Technopolymer impeller provide lightweight technopolymer construction for smoother motor starts
- Supplied with heatshrink kit for waterproof electrical connections
SPECIFICATIONS
| Max Flow | 90 L/Min |
| Max Head | 288 m |
| Power | 4 kW / 415v |
| Rated Current | 9.8 Amps |
| Suitable For | Pressure Boosting |
| Body Material | 304 Stainless Steel |
| Liquid Temperature | Maximum 35°C |
| Outlet Size | 32 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What is the maximum head capacity of this heavy industrial borehole pump?
Built for extreme depths, the 4GS40T achieves an impressive maximum head of 288 metres with flow up to 90 L/Min.
What shaft mechanism transmits power under heavy loads without slipping?
Torque transmission across all stages is secured in the 4GS-40T by a rigid hexagonal stainless steel pump shaft.
How much current does this 4 kW three-phase motor draw?
Powered by a 415 V three-phase motor rated at 4 kW, the 4GS 40T draws 9.8 Amps during normal operation.
Does this pump lock descending fluid columns to prevent reverse rotation?
A robust metallic check valve inside the 4GS_40T locks the descending water column upon motor shutdown.
Can this high-pressure pump handle groundwater with high sand levels?
Floating stack construction enables the 4GS40T to process liquids with suspended sand concentrations up to 150 g/m3.
