SKU: 4ZN631/2-3

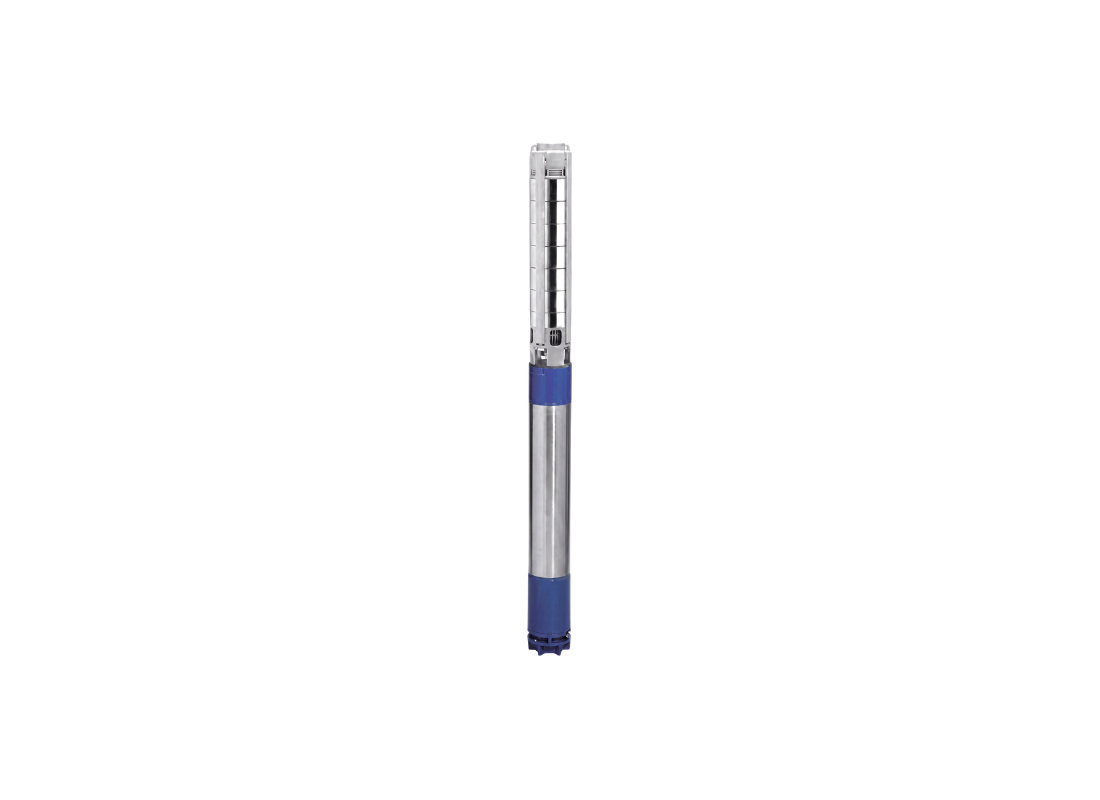

Lowara 4ZN631/2-3 Stainless Steel 3kW Deep Well 6" Submersible Bore Pump with Radial Flow Impeller
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
Agricultural irrigation networks demand pumps that move significant water volumes while enduring continuous submersion. The Lowara 4ZN631/2-3 pairs a 6-inch wet end with a 4-inch motor, delivering 667 litres per minute for farm water distribution. Its radial flow design maintains consistent output across varying field conditions.
Material selection begins with AISI 316 stainless steel throughout the wet end, protecting against corrosive groundwater. The suction strainer restricts sand ingress to 100 grams per cubic metre, preserving internal clearances. A removable wear ring on the impeller simplifies maintenance, while the non-return valve prevents column backflow during motor shutdown.
Electrical supply is three-phase 415V with a 7.6 Amp draw. Maximum head reaches 28.8 metres at shut-off, with flow capacity of 667 L/Min through the Rp 3 discharge port. Performance testing follows EN ISO 9906 Grade 3B standards.
Class F insulation and IP68 rating permit installation to 300 metres depth. The Duplex stainless steel shaft and AISI 316L tie rods provide structural integrity. Safety hook holes and NEMA coupling facilitate borehole installation and motor assembly.
4Z = 6" wet end with 4" Lowara motor
FEATURES- Safety hook attachment points on discharge head for secure lowering
- Duplex stainless steel UNS S 31803 shaft construction
- AISI 316L stainless steel external tie rods
- Replaceable coupling for mechanical assembly
- Suction strainer with AISI 316L mesh
- NEMA-standard lower motor support
* Motor and pump supplied separately - requires assembly
SPECIFICATIONS
| Max Flow | 667 L/Min |
| Max Head | 28.8 m |
| Power | 3 kW / 415v |
| Rated Current | 7.6 Amps |
| Suitable For | Agricultural Irrigation |
| Body Material | AISI 316 Stainless Steel |
| Liquid Temperature | -10°C to 60°C |
| Outlet Size | 80 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What peak flow capacity and discharge port size does this pump offer?
The 4ZN631/2-3 delivers a maximum flow capacity of 667 L/Min through an Rp 3 discharge port.
How is the 6-inch wet end configured regarding motor connection?
The 4ZN631-2-3 pairs a 6-inch wet end with a 4-inch motor connection for versatile system integration.
What is the current draw on a 415V three-phase electrical supply?
Operating on a 415V three-phase supply, the 4ZN631 2 3 draws 7.6 Amps under standard load.
Does this unit prevent water column backflow when the motor stops?
An integrated non-return valve in the 4ZN631_2_3 prevents water column backflow during motor shutdown.
What shut-off head and maximum immersion depth apply to this model?
The 4ZN631/2-3 reaches 28.8 metres of shut-off head and supports immersion depths up to 300 metres.
