SKU: 5HM04S-APC15

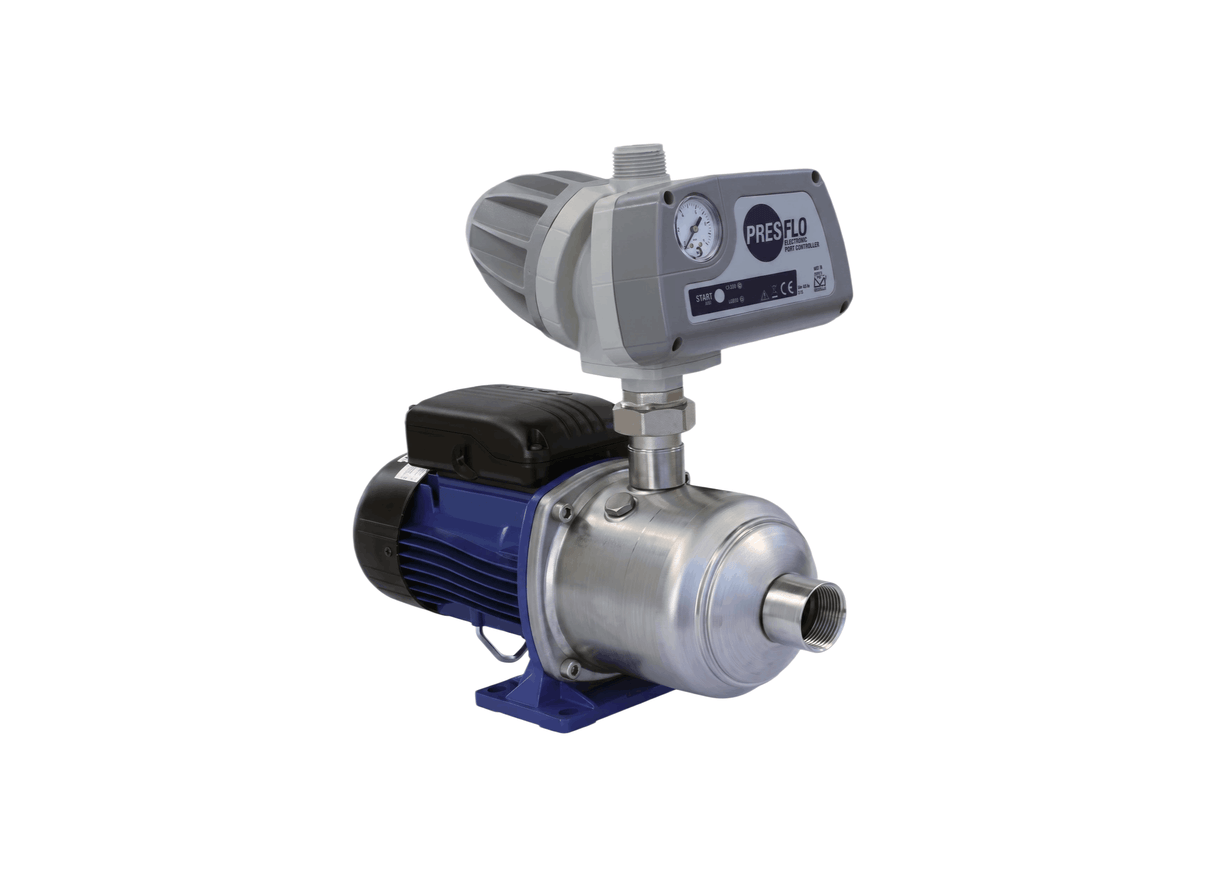

Lowara 5HM04S-APC15 Stainless Steel Multistage Pressure Pump for Domestic Supply with Electronic Controller
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
The Lowara 5HM04S-APC15 combines the 27.2-metre high-flow pump with stainless steel hydraulics and an APC15 electronic pressure controller. This configuration is suited to applications requiring automated pump control without a separate pressure vessel. The controller responds to system pressure, starting and stopping the pump as demand changes.
The AISI 304 stainless steel pump body and impellers deliver a maximum head of approximately 27.2 metres and a maximum flow rate of 142 litres per minute. The 0.5 kW motor operates on 220-240 V single-phase, drawing 3.18 Amps. Suction is Rp 32 mm and discharge is Rp 25 mm. The pump handles clean liquids up to 60°C.
The APC15 controller provides automatic pump start-stop based on system pressure. The mechanical seal is ceramic, carbon, and EPDM. The motor enclosure is IP55 with Class F insulation. Thermal protection is provided by an automatic reset overload device. The unit is designed for floor mounting.
Electrical connections are made through a pre-wired terminal junction box. The pump is certified for drinking water use under WRAS and ACS. The stainless steel hydraulic components make this variant suitable for applications where corrosion resistance is required. The controller enables automated operation without a separate pressure vessel.
FEATURES
- APC15 electronic pressure controller provides automatic pump start-stop operation.
- AISI 304 stainless steel pump body and impellers for corrosion resistance.
- Rp 32 mm suction and Rp 25 mm discharge connections for higher flow capacity.
- IP55 motor enclosure protects against dust and moisture ingress.
- WRAS and ACS certification for drinking water use.
- Automatic reset thermal protection safeguards the motor during operation.
- Controller-based design eliminates the need for a separate pressure vessel.
SPECIFICATIONS
| Max Flow | 142 L/Min |
| Max Head | 27.2 m |
| Power | 0.5 kW / 240v |
| Rated Current | 3.18 Amps |
| Suitable For | Water Supply / Irrigation |
| Body Material | 304 Stainless Steel |
| Liquid Temperature | Maximum 60°C |
| Inlet Size | 32 mm |
| Outlet Size | 25 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Will the Lowara 5HM04S-APC15 burn out if my rainwater tank runs dry?
No, it won't. The fitted APC15 automatic pressure controller monitors water supply constantly. If your tank runs completely dry, the controller instantly shuts off the pump so the motor doesn't run dry or overheat.
What materials is the Lowara 5HM04S_APC15 made from and can it handle warm water?
It's built with a 304 stainless steel body and stainless steel impellers, so it won't rust or corrode over time. It easily handles clean water at temperatures up to 60°C.
How much water flow and pressure can I get from the Lowara 5HM04S APC15?
You get up to 142 litres per minute of water flow and a max pressure head of 27.2 metres. That's plenty of punch to run multiple showers, taps, or garden hoses at the same time without annoying pressure drops.
Does the Lowara 5HM04S APC15 require a lot of ongoing maintenance?
Not at all. It's designed for hassle-free daily operation with long-life sealed bearings and heavy-duty mechanical shaft seals. Just keep your water inlet strainer clear and it'll run reliably for years.
