SKU: 5HM06P-APC22

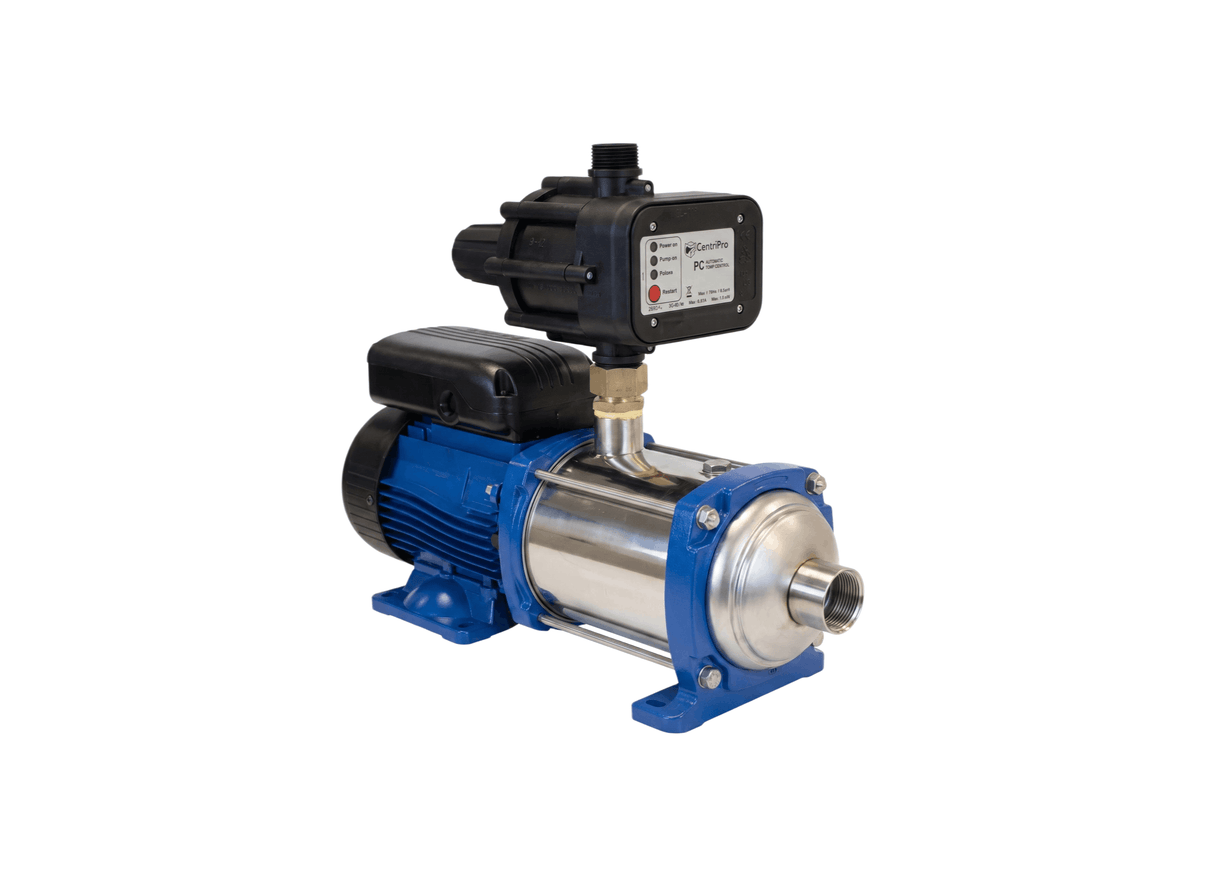

Lowara 5HM06P-APC22 Stainless Steel Multistage Pressure Pump for Light Industrial Boosting with Electronic Controller
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
Automated high-performance boosting without a separate tank is delivered by the Lowara 5HM06P-APC22. This configuration combines the 60.4-metre high-flow pump with an APC22 electronic pressure controller, providing automatic start-stop control based on system pressure for demanding residential and light commercial applications.
The pump body is AISI 304 stainless steel with Noryl™ impellers. Maximum head is approximately 60.4 metres and maximum flow is 120 litres per minute. The 1.1 kW motor operates on 220-240 V single-phase, drawing 6.84 Amps. Suction is Rp 32 mm and discharge is Rp 25 mm. The pump handles clean liquids up to 60°C.
The APC22 controller provides automatic pump start-stop based on system pressure. The mechanical seal is ceramic, carbon, and EPDM. The motor enclosure is IP55 with Class F insulation. Thermal protection is provided by an automatic reset overload device. The unit is designed for floor mounting.
Electrical connections are made through a pre-wired terminal junction box. The pump is certified for drinking water use under WRAS and ACS. The unit should be installed in a well-ventilated, frost-protected location with adequate maintenance access. The controller provides automated operation without a separate pressure vessel.
FEATURES
- APC22 electronic pressure controller provides automatic pump start-stop operation.
- 1.1 kW motor provides high head and flow capability for demanding installations.
- Rp 32 mm suction and Rp 25 mm discharge connections for higher flow capacity.
- IP55 motor enclosure protects against dust and moisture ingress.
- WRAS and ACS certification for drinking water use.
- Automatic reset thermal protection safeguards the motor during operation.
- Controller-based design eliminates the need for a separate pressure vessel.
SPECIFICATIONS
| Max Flow | 120 L/Min |
| Max Head | 60.4 m |
| Power | 1.1 kW / 240v |
| Rated Current | 6.84 Amps |
| Suitable For | Water Supply / Irrigation |
| Body Material | 304 Stainless Steel |
| Liquid Temperature | Maximum 60°C |
| Inlet Size | 32 mm |
| Outlet Size | 25 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Is the Lowara 5HM06P-APC22 strong enough for a multi-story home?
Yes, it's ideal for multi-story houses. It pushes water up easily to top-floor bathrooms and showers while keeping pressure steady when several taps are turned on at once.
Is the Lowara 5HM06P/APC22 motor safe to install outside in the weather?
Yes, it is. The 1.1 kW motor has an IP55 weatherproof casing, so it handles rain, dust, and outdoor conditions with no trouble. It plugs into standard home power and includes built-in thermal overload protection.
Does the Lowara 5HM06P APC22 require a lot of ongoing maintenance?
Not at all. It's designed for hassle-free daily operation with long-life sealed bearings and heavy-duty mechanical shaft seals. Just keep your water inlet strainer clear and it'll run reliably for years.
Will the Lowara 5HM06P-APC22 burn out if my rainwater tank runs dry?
No, it won't. The fitted APC22 electronic controller monitors water supply constantly. If your tank runs completely dry, the controller instantly shuts off the pump so the motor doesn't run dry or overheat.
