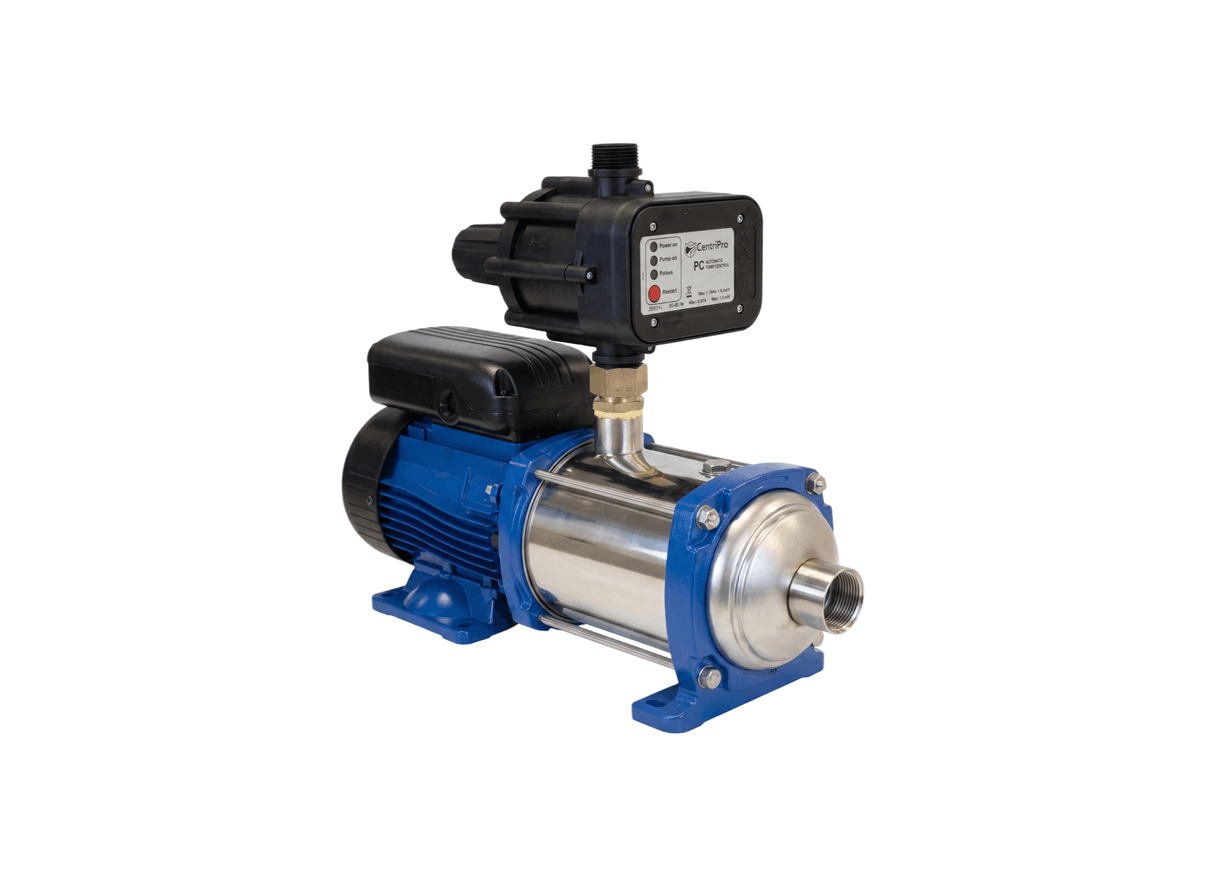

Lowara 5HM06S-APC22 Stainless Steel Multistage Pressure Pump for Kitchen Boosting with Electronic Controller
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
The Lowara 5HM06S-APC22 combines the 41.5-metre high-flow pump with stainless steel hydraulics and an APC22 electronic pressure controller. This configuration is suited to applications requiring automated pump control without a separate pressure vessel. The controller responds to system pressure, starting and stopping the pump as demand changes.
The AISI 304 stainless steel pump body and impellers deliver a maximum head of approximately 41.5 metres and a maximum flow rate of 142 litres per minute. The 0.75 kW motor operates on 220-240 V single-phase, drawing 4.8 Amps. Suction is Rp 32 mm and discharge is Rp 25 mm. The pump handles clean liquids up to 60°C.
The APC22 controller provides automatic pump start-stop based on system pressure. The mechanical seal is ceramic, carbon, and EPDM. The motor enclosure is IP55 with Class F insulation. Thermal protection is provided by an automatic reset overload device. The unit is designed for floor mounting.
Electrical connections are made through a pre-wired terminal junction box. The pump is certified for drinking water use under WRAS and ACS. The stainless steel hydraulic components make this variant suitable for corrosion-resistant applications. The controller enables automated operation without a separate pressure vessel.
FEATURES
- APC22 electronic pressure controller provides automatic pump start-stop operation.
- AISI 304 stainless steel pump body and impellers for corrosion resistance.
- 0.75 kW motor provides higher head and flow capability.
- Rp 32 mm suction and Rp 25 mm discharge connections for higher flow capacity.
- IP55 motor enclosure protects against dust and moisture ingress.
- WRAS and ACS certification for drinking water use.
- Controller-based design eliminates the need for a separate pressure vessel.
SPECIFICATIONS
| Max Flow | 142 L/Min |
| Max Head | 41.5 m |
| Power | 0.75 kW / 240v |
| Rated Current | 4.8 Amps |
| Suitable For | Water Supply / Irrigation |
| Body Material | 304 Stainless Steel |
| Liquid Temperature | Maximum 60°C |
| Inlet Size | 32 mm |
| Outlet Size | 25 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Is the Lowara 5HM06S-APC22 strong enough for a multi-story home?
Yes, it's ideal for multi-story houses. It pushes water up easily to top-floor bathrooms and showers while keeping pressure steady when several taps are turned on at once.
What materials is the Lowara 5HM06S_APC22 made from and can it handle warm water?
It's built with a 304 stainless steel body and stainless steel impellers, so it won't rust or corrode over time. It easily handles clean water at temperatures up to 60°C.
Does the Lowara 5HM06S APC22 require a lot of ongoing maintenance?
Not at all. It's designed for hassle-free daily operation with long-life sealed bearings and heavy-duty mechanical shaft seals. Just keep your water inlet strainer clear and it'll run reliably for years.
Is the Lowara 5HM06S/APC22 motor safe to install outside in the weather?
Yes, it is. The 0.75 kW motor has an IP55 weatherproof casing, so it handles rain, dust, and outdoor conditions with no trouble. It plugs into standard home power and includes built-in thermal overload protection.
