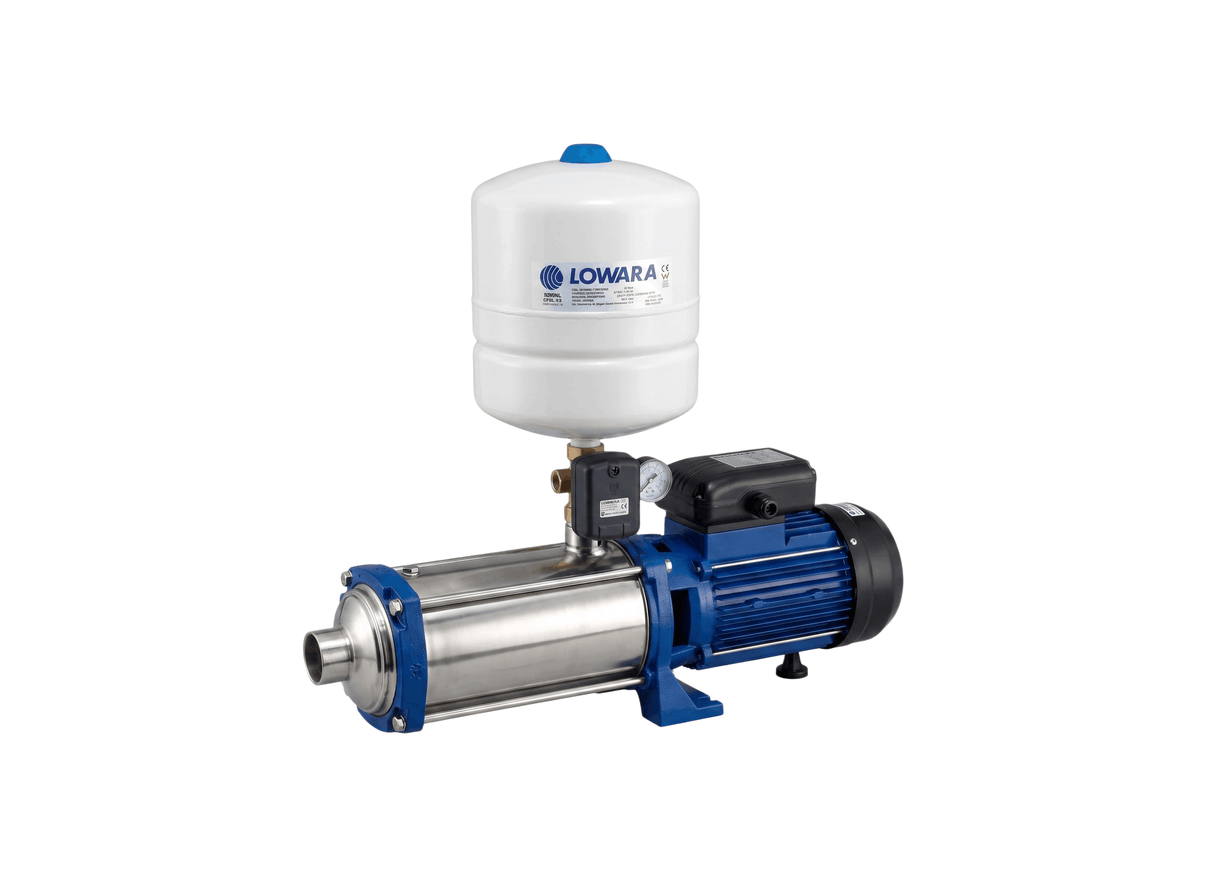

Lowara 5HM06S-PT8 Stainless Steel Multistage Pressure Pump for Farm Watering with 8 Litre Tank
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
The Lowara 5HM06S-PT8 is a high-flow pressure-boosting system with stainless steel hydraulics, combining a 41.5-metre pump with an 8-litre APT pressure vessel. This packaged unit is intended for residential and light commercial applications requiring substantial flow and corrosion resistance in clean water service.
The AISI 304 stainless steel pump body and impellers deliver a maximum head of approximately 41.5 metres and a maximum flow rate of 142 litres per minute. The 0.75 kW motor operates on 220-240 V single-phase, drawing 4.8 Amps. Suction is Rp 32 mm and discharge is Rp 25 mm. The pump handles clean liquids up to 60°C.
The 8-litre pressure vessel reduces pump cycling during low-demand periods. The mechanical seal is ceramic, carbon, and EPDM. The motor enclosure is IP55 with Class F insulation. Thermal protection is provided by an automatic reset overload device. The horizontal close-coupled configuration is designed for floor mounting.
Installation requires a level, frost-protected surface with adequate ventilation. The pre-wired terminal junction box simplifies electrical connection. The pump is certified for drinking water use under WRAS and ACS. The stainless steel hydraulic components provide increased corrosion resistance in clean-water applications.
FEATURES
- AISI 304 stainless steel pump body and impellers for corrosion resistance.
- 0.75 kW motor provides higher head and flow capability.
- Rp 32 mm suction and Rp 25 mm discharge connections for higher flow capacity.
- 8-litre APT pressure vessel reduces pump cycling during low-demand periods.
- IP55 motor enclosure protects against dust and moisture ingress.
- WRAS and ACS certification for drinking water use.
- Automatic reset thermal protection safeguards the motor during operation.
SPECIFICATIONS
| Max Flow | 142 L/Min |
| Max Head | 41.5 m |
| Power | 0.75 kW / 240v |
| Rated Current | 4.8 Amps |
| Suitable For | Water Supply / Irrigation |
| Body Material | 304 Stainless Steel |
| Liquid Temperature | Maximum 60°C |
| Inlet Size | 32 mm |
| Outlet Size | 25 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What does the 8-litre pressure tank do for the Lowara 5HM06S-PT8?
The 8L tank acts as a handy water buffer. When you turn on a tap just a little bit, water comes straight from the tank first. This stops the pump from starting up unnecessarily, saving power and protecting the motor from wear.
Does the Lowara 5HM06S PT8 require a lot of ongoing maintenance?
Not at all. It's designed for hassle-free daily operation with long-life sealed bearings and heavy-duty mechanical shaft seals. Just keep your water inlet strainer clear and it'll run reliably for years.
How much water flow and pressure can I get from the Lowara 5HM06S PT8?
You get up to 142 litres per minute of water flow and a max pressure head of 41.5 metres. That's plenty of punch to run multiple showers, taps, or garden hoses at the same time without annoying pressure drops.
What materials is the Lowara 5HM06S_PT8 made from and can it handle warm water?
It's built with a 304 stainless steel body and stainless steel impellers, so it won't rust or corrode over time. It easily handles clean water at temperatures up to 60°C.
