SKU: 6GS05-1

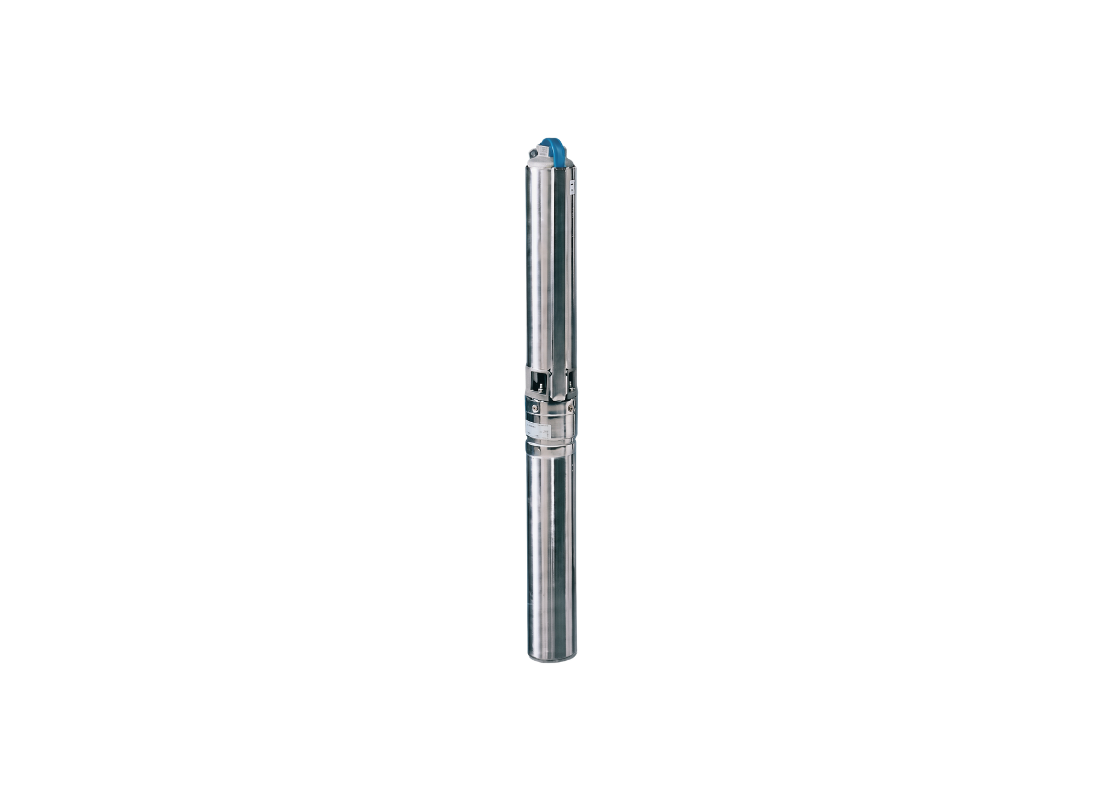

Lowara 6GS05-1 Stainless Steel 4" Submersible Bore Pump with Floating Impeller
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
The stainless steel construction of this submersible pump provides the foundation for residential and municipal water supply networks from 4-inch wells. It delivers high-volume groundwater transfer for shallow to medium depth extraction tasks, with a floating impeller configuration that supports reliable operation in water containing suspended particulates.
Operating on a 240V single-phase supply, the 0.55 kW motor draws 4.3 Amps during normal operation. Maximum flow reaches 140 L/Min with maximum head of 25 metres. The hydraulic performance supports high-volume water supply requirements effectively.
Floating stack construction processes liquids containing up to 150 g/m³ of suspended sand. The front wear ring works in conjunction with the floating impeller to improve abrasion resistance, while the hexagonal shaft provides effective impeller drive. An integrated check valve prevents back-siphoning into the well.
Supplied with an external starting control box and watertight heatshrink kit. The discharge head is precision-cast stainless steel, and the pump is designed for continuous submersion in liquids up to 35°C.
FEATURES
- Floating impeller system handles sand concentrations up to 150 g/m³
- Hexagonal stainless steel shaft provides effective impeller drive across all stages
- Front wear ring works in conjunction with the floating impeller to improve abrasion resistance
- Non-return valve prevents water column drainage on motor shutdown
- AISI 304 stainless steel casing offers corrosion resistance in submerged environments
- Technopolymer impeller provide lightweight technopolymer construction for smoother motor starts
- Includes control box and heatshrink kit for immediate installation
SPECIFICATIONS
| Max Flow | 140 L/Min |
| Max Head | 25 m |
| Power | 0.55 kW / 240v |
| Rated Current | 4.3 Amps |
| Suitable For | Water Supply System |
| Body Material | 304 Stainless Steel |
| Liquid Temperature | Maximum 35°C |
| Outlet Size | 32 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What starting and electrical accessories come with this high-volume supply pump?
The 6GS05M comes complete with an external starting control box and a watertight heatshrink kit for rapid installation.
What are the flow and head capacities for shallow-depth water transfer?
Reaching high-flow output, the 6GS-05M delivers up to 140 L/Min with a maximum head of 25 metres.
Does this pump prevent water from siphoning back into the well?
An integrated check valve in the 6GS 05M arrests descending water columns and stops back-siphoning into the well.
What is the power rating and running current of this single-phase motor?
Operating on a 240 V single-phase supply, the 0.55 kW motor of the 6GS_05M draws 4.3 Amps.
How does this model handle suspended particulates in well water?
Floating stack construction allows the 6GS05M to handle groundwater containing sand concentrations up to 150 g/m3.
