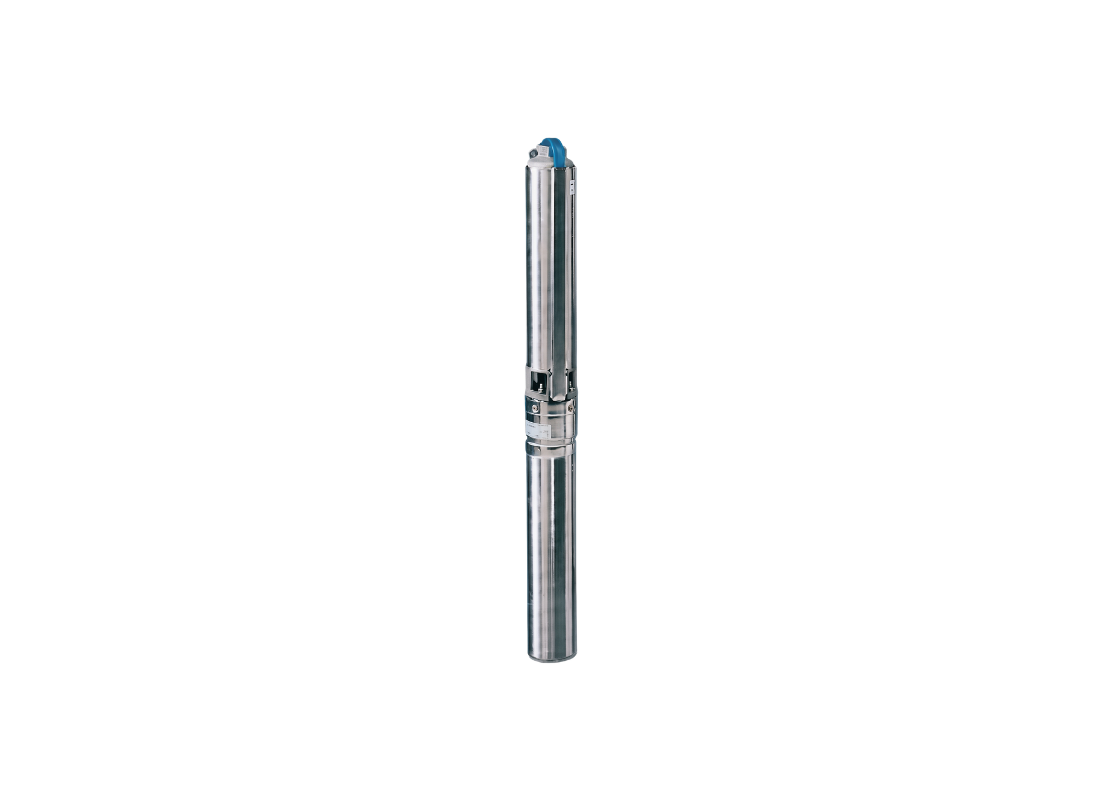

Lowara 6GS05-12L Stainless Steel 2-Wire 4" Submersible Bore Pump with Floating Impeller
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
Continuous agricultural irrigation and fluid transfer benefit from the Lowara 6GS05-12L, a streamlined 2-wire submersible bore pump for permanent submersion. This 4-inch unit is built for drilled wells and storage tanks, with a built-in capacitor eliminating the need for a surface control panel. The floating impeller design supports performance in water containing suspended solids.
A 0.55 kW single-phase motor on 240 V draws 4.3 Amps during normal operation. Maximum flow reaches 140 L/Min, while maximum head extends to 25.7 metres at shut-off. The motor requires a minimum fluid velocity of 8 cm/s around the casing for adequate cooling, and supports up to 30 starts per hour.
Inside the hydraulic section, floating impellers allow suspended particles up to 150 g/m³ to pass without compromising internal clearances. The hexagonal pump shaft delivers torque reliably across all stages, while the front wear ring works with the floating impeller to improve abrasion resistance. An integrated stainless steel check valve prevents destructive backflow when the motor stops.
Precision-cast stainless steel upper and lower support brackets maintain alignment between the pump and motor. The 99 mm diameter casing fits standard 4-inch boreholes, with a 32 mm threaded outlet. Rated for continuous immersion in liquids up to 35°C, the complete unit comes with a heatshrink kit for secure electrical connections.
Features
- Two-wire motor design with built-in capacitor simplifies electrical installation
- Floating impeller system handles abrasive groundwater without performance loss
- Hexagonal stainless steel shaft provides effective drive across all pump stages
- Front wear ring improves resistance to abrasive wear in sandy conditions
- Integrated non-return valve prevents reverse flow on motor shutdown
- AISI 304 stainless steel construction offers corrosion resistance during submersion
- Supplied with heatshrink kit for waterproof electrical connections
SPECIFICATIONS
| Max Flow | 140 L/Min |
| Max Head | 25 m |
| Power | 0.55 kW / 240v |
| Rated Current | 4.3 Amps |
| Suitable For | Agricultural Irrigation |
| Body Material | Stainless Steel |
| Liquid Temperature | Maximum 35°C |
| Outlet Size | 32 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Does this 2-wire submersible bore pump require a separate surface starter box?
No, the 6GS05-12L features a built-in capacitor within its 2-wire motor design, eliminating the need for an external panel.
What are the maximum head and flow ratings for this agricultural pump?
The 6GS-05-12L delivers a maximum head of 25.7 metres at shut-off with flow rates reaching 140 L/Min.
What minimum fluid velocity past the casing is needed for motor cooling?
A minimum fluid velocity of 8 cm/s circulating past the casing is required to ensure adequate cooling for the 6GS 05 12L.
How does this borehole pump protect against reverse fluid drainage on shutdown?
An integrated stainless steel non-return valve in the 6GS_05_12L prevents destructive backflow when the motor stops.
What accessory is supplied for underwater cable connection?
The 6GS05-12L comes supplied with a protective heatshrink kit for making watertight electrical connections.
