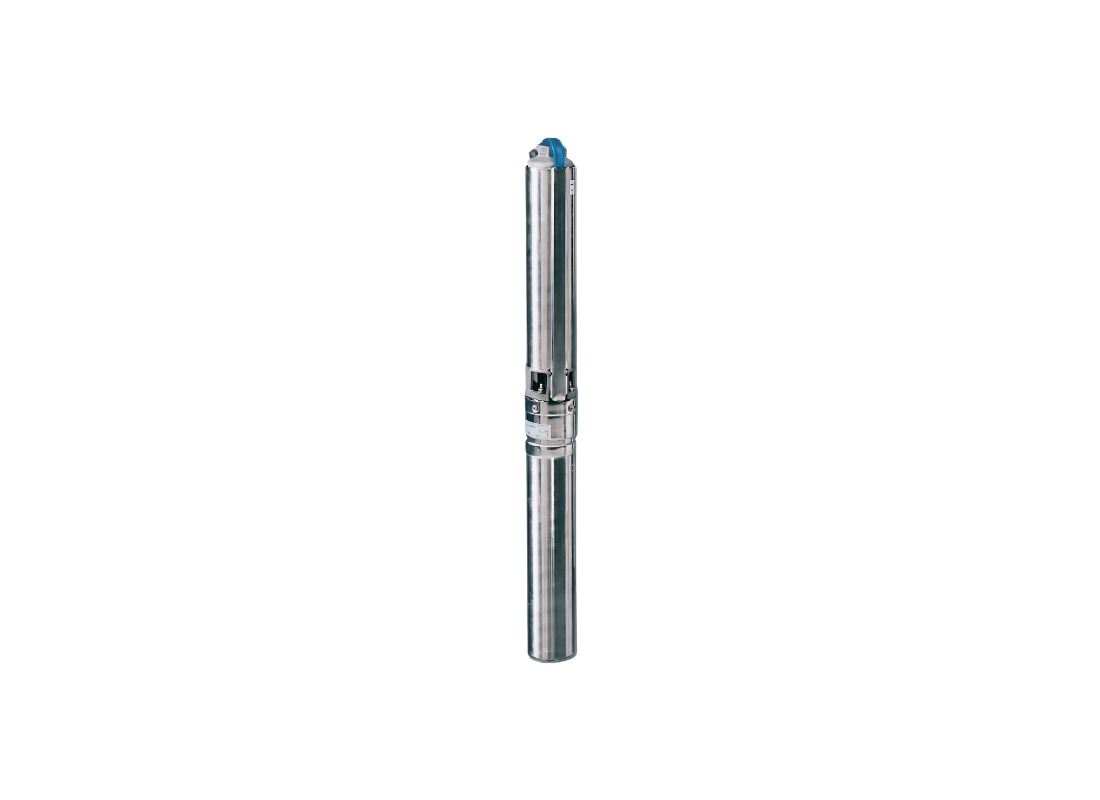

Lowara 6GS05-3 Stainless Steel 3-Phase 4" Submersible Bore Pump with Floating Impeller
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
This submersible pump is developed for large-scale sprinkler systems from shallow to medium 4-inch boreholes, serving agricultural water management where reliable high-volume delivery is essential. The floating impeller configuration supports continuous operation in groundwater containing suspended solids.
Wired for 415V three-phase power, the 0.55 kW motor draws 1.7 Amps during normal operation. Maximum flow reaches 140 L/Min with maximum head of 25 metres. The hydraulic performance supports sprinkler system requirements effectively.
Floating stack construction processes liquids containing up to 150 g/m³ of suspended sand. The front wear ring works in conjunction with the floating impeller to improve abrasion resistance, while the hexagonal shaft provides effective impeller drive. An embedded stainless steel check valve blocks descending water columns.
Built with a 304 Stainless Steel casing and technopolymer hydraulic components. The discharge head is precision-cast stainless steel. This complete three-phase model includes a heavy-duty heatshrink kit for waterproof deep-water connections.
FEATURES
- Floating impeller design handles abrasive groundwater without performance loss
- Hexagonal stainless steel shaft provides effective impeller drive without slippage
- Front wear ring works in conjunction with the floating impeller to improve abrasion resistance
- Non-return valve prevents water column drainage on motor shutdown
- AISI 304 stainless steel casing offers corrosion resistance in submerged environments
- Technopolymer impeller provide lightweight technopolymer construction for smoother motor starts
- Supplied with heatshrink kit for waterproof electrical connections
SPECIFICATIONS
| Max Flow | 140 L/Min |
| Max Head | 25 m |
| Power | 0.55 kW / 415v |
| Rated Current | 1.7 Amps |
| Suitable For | Sprinkler Systems |
| Body Material | 304 Stainless Steel |
| Liquid Temperature | Maximum 35°C |
| Outlet Size | 32 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What three-phase power ratings apply to this shallow-depth irrigation pump?
Wired for 415 V three-phase power, the 0.55 kW motor of the 6GS05T draws 1.7 Amps during normal operation.
What flow volume and discharge head does this agricultural pump provide?
The 6GS-05T delivers a high flow rate of 140 L/Min with a maximum head reaching up to 25 metres.
What materials provide corrosion resistance during long-term immersion?
Built with an AISI 304 stainless steel casing and technopolymer impellers, the 6GS 05T provides superior corrosion protection.
Does this submersible pump prevent vertical column drainage?
An embedded stainless steel check valve inside the 6GS_05T blocks descending water columns and arrests reverse flow.
Can this unit operate reliably in shallow wells containing sand?
Floating stack design allows the 6GS05T to handle abrasive groundwater with sand concentrations up to 150 g/m3.
