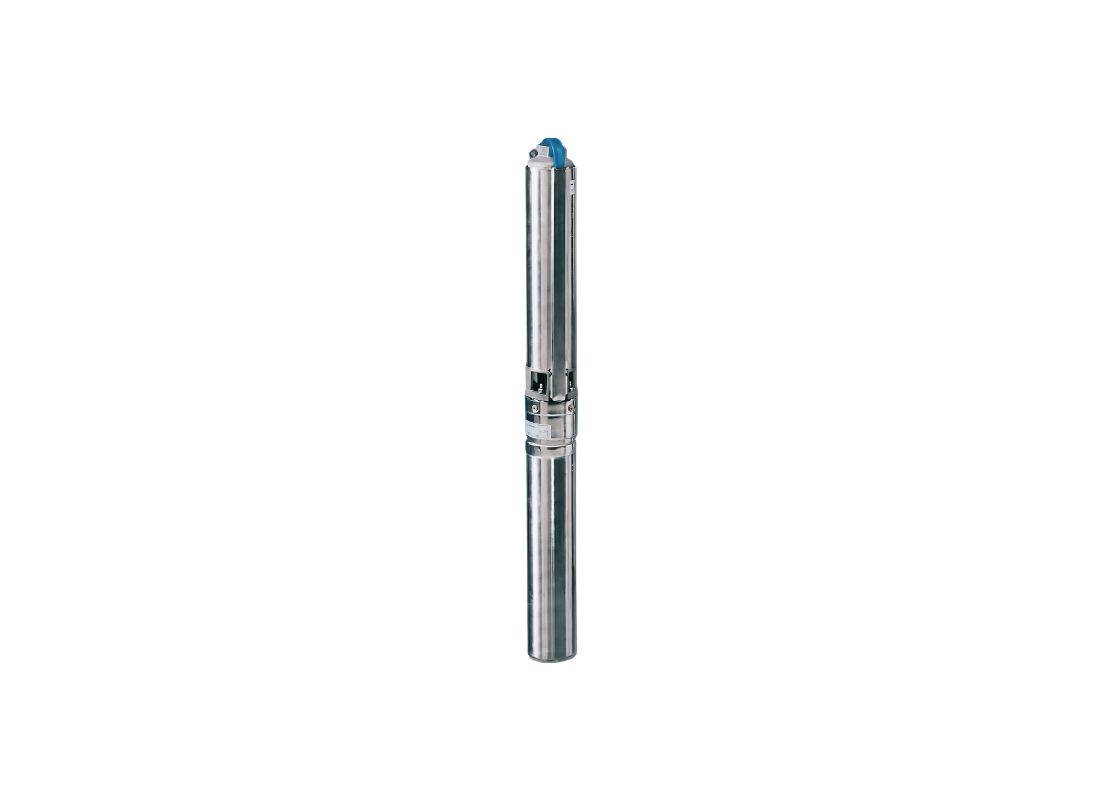

Lowara 6GS07-1 Stainless Steel 4" Submersible Bore Pump with Floating Impeller
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
Heavy sprinkler irrigation duties from subterranean cisterns and boreholes are effectively handled by this submersible pump, serving agricultural environments where reliable high-volume delivery is essential. The floating impeller design maintains performance in groundwater containing suspended solids.
Powered by a 240V single-phase motor rated at 0.75 kW, drawing 5.6 Amps during normal operation. Maximum flow reaches 140 L/Min with maximum head of 36 metres. The hydraulic performance supports sprinkler irrigation requirements effectively.
Floating stack construction processes liquids containing up to 150 g/m³ of suspended sand. The front wear ring works in conjunction with the floating impeller to improve abrasion resistance, while the hexagonal shaft provides effective impeller drive. A heavy-duty non-return valve holds the pressurised vertical column.
Built with a 304 Stainless Steel casing and technopolymer hydraulic components. The discharge head is precision-cast stainless steel. The complete single-phase model includes the control box and heatshrink kit for immediate setup.
FEATURES
- Floating impeller design handles abrasive groundwater without efficiency loss
- Hexagonal stainless steel shaft provides effective impeller drive without slippage
- Front wear ring works in conjunction with the floating impeller to improve abrasion resistance
- Non-return valve prevents water column reversal on motor shutdown
- AISI 304 stainless steel casing offers corrosion resistance in submerged operation
- Technopolymer impeller provide lightweight technopolymer construction for smoother motor starts
- Includes control box and heatshrink kit for rapid installation
SPECIFICATIONS
| Max Flow | 140 L/Min |
| Max Head | 36 m |
| Power | 0.75 kW / 240v |
| Rated Current | 5.6 Amps |
| Suitable For | Sprinkler Irrigation |
| Body Material | 304 Stainless Steel |
| Liquid Temperature | Maximum 35°C |
| Outlet Size | 32 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How does this high-flow agricultural irrigation pump prevent sand damage?
Floating stack construction and front wear rings allow the 6GS07M to process sand up to 150 g/m3 without efficiency loss.
What maximum head and flow output does this irrigation unit deliver?
The 6GS-07M generates a maximum head of 36 metres while supplying high flow rates up to 140 L/Min.
Does this pump include an internal valve to secure the vertical water column?
A heavy-duty non-return valve built into the 6GS 07M holds the pressurised water column when the motor shuts down.
What are the electrical power requirements and current draw?
Connected to a 240 V single-phase line, the 0.75 kW motor in the 6GS_07M draws 5.6 Amps during duty.
How are the impellers driven inside this multistage pump?
A stainless steel hexagonal shaft provides positive drive across all impeller stages in the 6GS07M.
