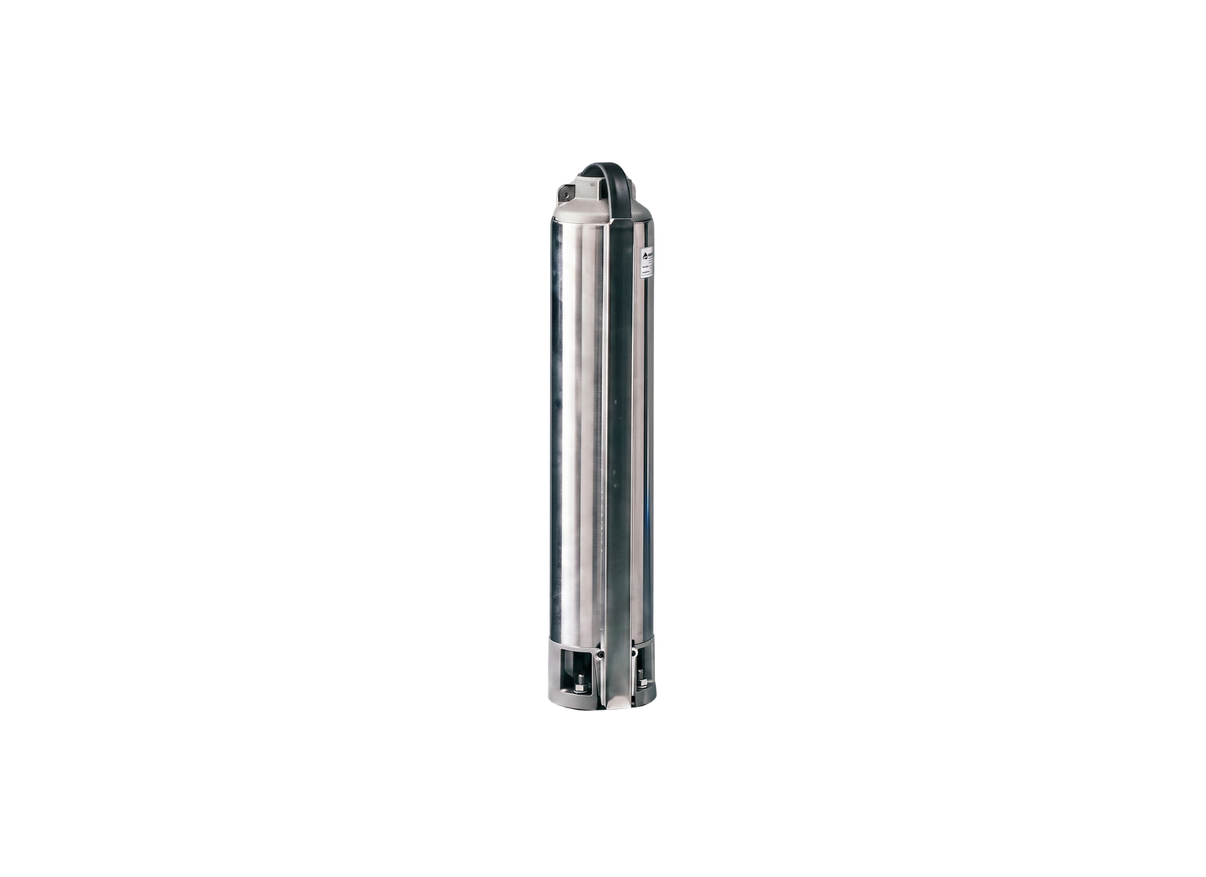

Lowara 6GS07 Stainless Steel Deep Well 4" Submersible Bore Pump (Wet End Only) with Floating Impeller
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
Specified as a standalone hydraulic pump end, the Lowara 6GS07 belongs to the e-GS series for deep well extraction. Pairing with a compatible 0.75 kW (1.0 HP) motor is necessary for system operation. Standard vertical casing installation is standard, but horizontal mounting is specified within motor limits.
Constructed with a stainless steel casing, the pump end protects internal hydraulic components from rust. The multi-stage assembly incorporates 7 floating impellers made of PC/PPO + PS polymer. It permits continuous handling of sand in water up to 150 grams per cubic meter.
Pairing this pump end with its required 0.75 kW motor (5.6 Amps current on 240 V single-phase supply) enables a maximum head of 36.0 m. The coupled system produces a maximum flow of 140 L/Min discharging through a 32 mm Rp outlet. Performance curves conform to factory specifications.
During continuous operation, the wet end handles fluid temperatures up to 35°C. Operating depth limits are 150 meters with 4OS motors and up to 300 meters with L4C motors. Horizontal mounting is possible with 4OS motors up to 2.2 kW and L4C motors up to 7.5 kW. The multi-stage design requires proper coupling with standard motors to maintain correct performance under standard system heads.
FEATURES
- Equipped with 7 multi-stage floating impellers designed to minimize abrasive wear from sand particulates.
- The external sleeve is fabricated from durable stainless steel to prevent rust and prolong operating life.
- Includes a built-in stainless steel non-return valve in the discharge head to prevent damaging backflow.
- The hexagonal shaft distributes mechanical torque evenly, eliminating vulnerable keyed connections.
- Features precision-cast stainless steel upper and lower brackets to maintain alignment with the motor.
- Complies fully with the Minimum Efficiency Index threshold of 0.40 under European ErP directives.
- Designed to safely handle water temperatures up to 35°C in continuous underwater applications.
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How many sprinklers can the Lowara 6GS07 run at the same time?
With a peak flow of 140 L/Min, it delivers plenty of volume to run large farm irrigators or multiple garden sprinkler lines simultaneously.
What happens if my bore water level drops below the Lowara 6GS07?
This is a wet-end assembly and does not include a motor. Pair it with a compatible motor and use the motor/controller manufacturer's recommended overload and dry-run protection.
How much maintenance does the Lowara 6GS07 need?
Virtually none. The sealed bearings and shaft seals are lubricated for life, giving you years of trouble-free daily pumping.
How deep can the Lowara 6GS07 push water from underground?
With a maximum head of 36 m, it easily lifts water from deep bore shafts and pushes it across long pipe runs without losing pressure.
