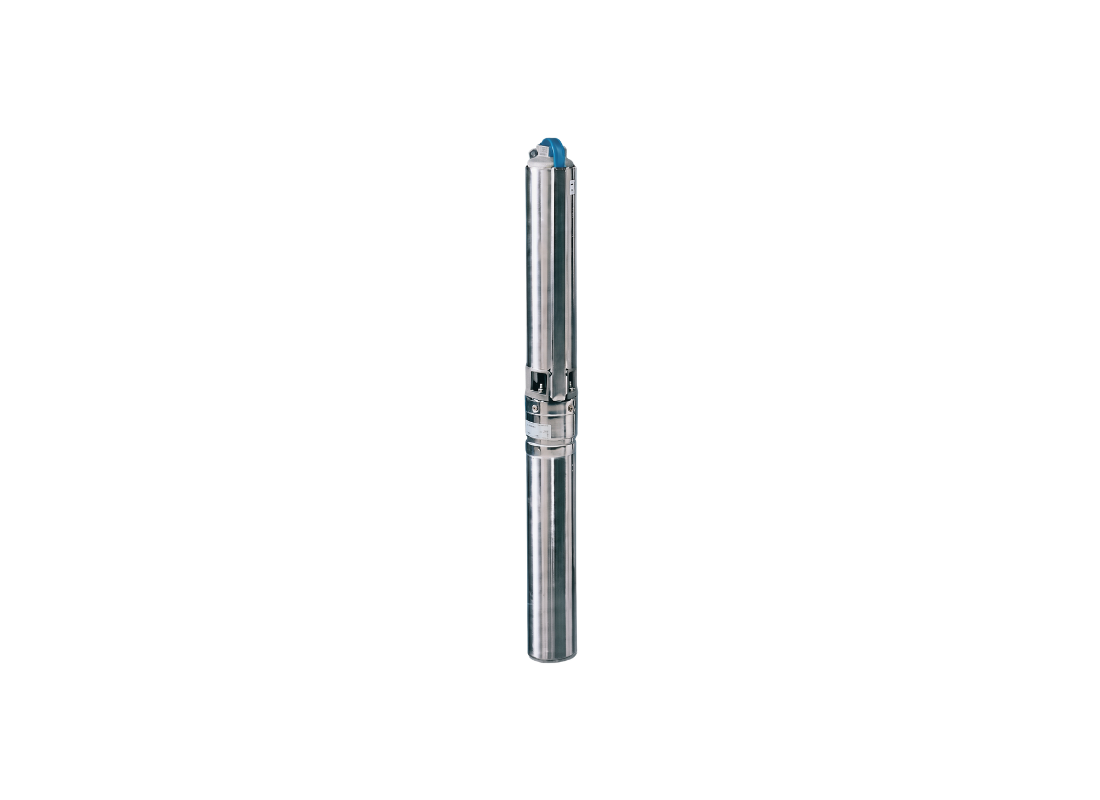

Lowara 6GS11-1 Stainless Steel 4" Submersible Bore Pump with Floating Impeller
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
Fire protection systems requiring substantial water from 4-inch deep reserves are the focus of this submersible pump, serving critical infrastructure safety where consistent high-flow delivery is essential. The floating impeller configuration supports continuous operation in groundwater containing suspended solids.
Operating on a 240V single-phase supply, the 1.1 kW motor draws 7.6 Amps during normal duty. Maximum flow reaches 140 L/Min with maximum head of 51 metres. The hydraulic performance supports fire protection system requirements effectively.
Floating internal design permits the pump to handle water containing up to 150 g/m³ of suspended sand. The front wear ring works in conjunction with the floating impeller to improve abrasion resistance, while the hexagonal shaft ensures effective impeller drive. A non-return valve locks the vertical water column on shutdown.
Manufactured with a 304 Stainless Steel casing and technopolymer hydraulic components. The discharge head is precision-cast stainless steel. Supplied with the starting control box and heatshrink kit for waterproof cable connections.
FEATURES
- Floating impeller system handles sand concentrations up to 150 g/m³
- Hexagonal stainless steel shaft provides effective impeller drive
- Front wear ring works in conjunction with the floating impeller to improve abrasion resistance
- Non-return valve prevents water column drainage on motor shutdown
- AISI 304 stainless steel casing offers corrosion resistance in submerged environments
- Technopolymer impeller provide corrosion resistance with lightweight technopolymer construction
- Supplied with control box and heatshrink kit for immediate commissioning
SPECIFICATIONS
| Max Flow | 140 L/Min |
| Max Head | 51 m |
| Power | 1.1 kW / 240v |
| Rated Current | 7.6 Amps |
| Suitable For | Fire Protection System |
| Body Material | 304 Stainless Steel |
| Liquid Temperature | Maximum 35°C |
| Outlet Size | 32 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What discharge volume and head does this emergency fire reserve pump offer?
Delivering high flow for emergency fire safety systems, the 6GS11M reaches up to 140 L/Min with a maximum head of 51 metres.
What electrical starting gear is included with this single-phase pump?
An external starting control box and a protective heatshrink kit are supplied with the 6GS-11M for immediate setup.
Does this submersible pump prevent water column drainage upon shutdown?
An integrated non-return valve in the 6GS 11M locks the vertical water column upon shutdown to prevent reverse rotation.
What is the current draw of this 1.1 kW single-phase motor?
Operating on a 240 V single-phase connection, the 1.1 kW motor of the 6GS_11M draws 7.6 Amps.
Can this unit pump water containing abrasive sediment?
The floating impeller design of the 6GS11M easily handles groundwater containing sand concentrations up to 150 g/m3.
