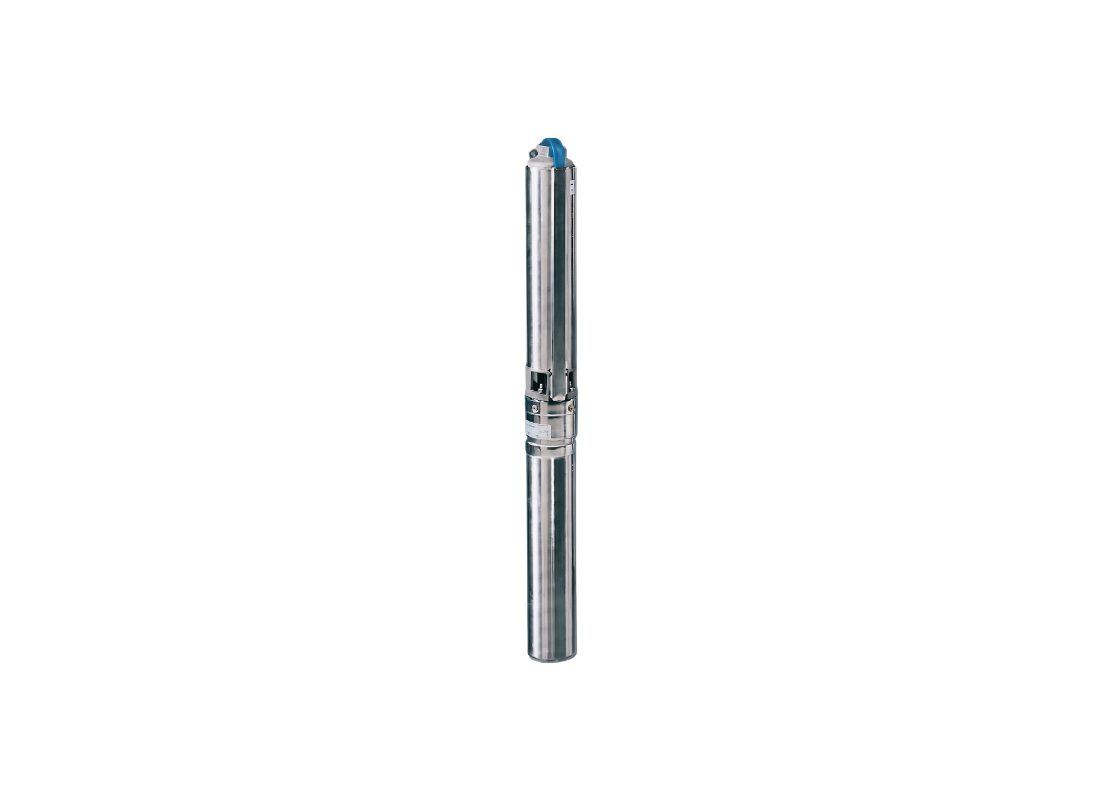

Lowara 6GS11-3 Stainless Steel 3-Phase 4" Submersible Bore Pump with Floating Impeller
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
Continuous pressure boosting from 4-inch wells to industrial systems is the purpose of this submersible pump, serving large-capacity fluid management where reliable high-volume delivery is essential. The floating impeller configuration supports continuous operation in groundwater containing suspended solids.
Operating on a 415V three-phase supply, the 1.1 kW motor draws 3.1 Amps during normal operation. Maximum flow reaches 140 L/Min with maximum head of 51 metres. The hydraulic performance supports pressure boosting requirements effectively.
Floating stack construction processes liquids containing up to 150 g/m³ of suspended sand. The front wear ring works in conjunction with the floating impeller to improve abrasion resistance, while the hexagonal shaft provides effective impeller drive. An embedded stainless steel check valve arrests the falling water column when power is interrupted.
Manufactured with a 304 Stainless Steel casing and technopolymer hydraulic components. The discharge head is precision-cast stainless steel. Supplied with a professional heatshrink kit for waterproof electrical connections.
FEATURES
- Floating impeller design handles sand concentrations up to 150 g/m³
- Hexagonal stainless steel shaft provides effective impeller drive
- Front wear ring works in conjunction with the floating impeller to improve abrasion resistance
- Non-return valve prevents water column drainage on motor shutdown
- AISI 304 stainless steel casing offers corrosion resistance in submerged environments
- Technopolymer impeller provide lightweight technopolymer construction for smoother motor starts
- Supplied with heatshrink kit for waterproof electrical connections
SPECIFICATIONS
| Max Flow | 140 L/Min |
| Max Head | 51 m |
| Power | 1.1 kW / 415v |
| Rated Current | 3.1 Amps |
| Suitable For | Pressure Boosting |
| Body Material | 304 Stainless Steel |
| Liquid Temperature | Maximum 35°C |
| Outlet Size | 32 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How is motor torque transmitted through the impeller stages?
A hexagonal stainless steel shaft in the 6GS11T ensures positive, non-slip impeller drive across all stages.
What are the head and volume capabilities of this industrial booster pump?
The 6GS-11T delivers a maximum head of 51 metres with flow capability reaching up to 140 L/Min.
Does this pump arrest water column backflow when shut off?
An embedded stainless steel check valve in the 6GS 11T arrests the falling water column when electrical power is interrupted.
How much current does this three-phase submersible motor draw?
Operating on a 415 V three-phase supply, the 1.1 kW motor of the 6GS_11T draws 3.1 Amps.
Can this pump handle abrasive sand without clogging or binding?
Floating stack construction permits the 6GS11T to pump water containing up to 150 g/m3 of suspended sand without binding.
