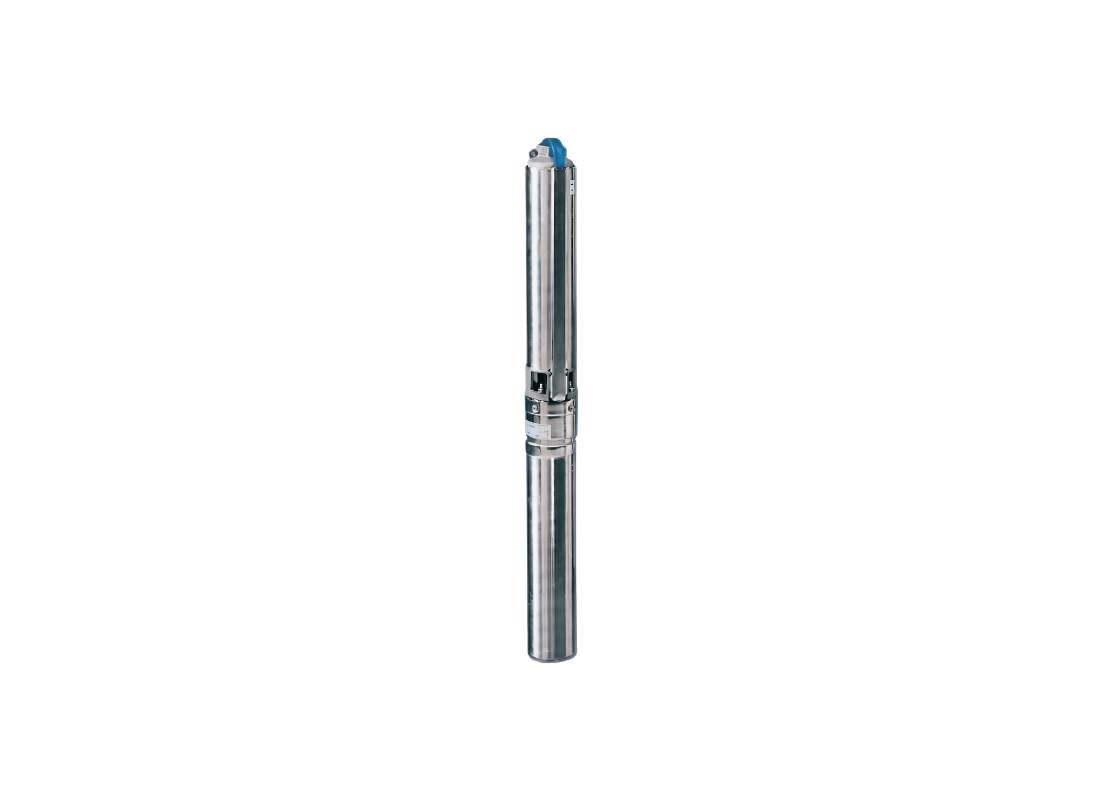

Lowara 6GS22-1 Stainless Steel 4" Submersible Bore Pump with Floating Impeller
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
Primary water supply networks from narrow 4-inch boreholes are the domain of this submersible pump, serving deep-well fluid transfer where high-volume delivery is essential. The floating impeller configuration supports continuous operation in groundwater containing suspended solids.
Operating on a 240V single-phase supply, the 2.2 kW motor draws 14.4 Amps during normal duty. Maximum flow reaches 140 L/Min with maximum head of 112 metres. The hydraulic performance supports high-volume water supply requirements effectively.
Floating stack construction processes abrasive liquids containing up to 150 g/m³ of suspended sand. The front wear ring works in conjunction with the floating impeller to improve abrasion resistance, while the hexagonal shaft ensures effective impeller drive. A metallic check valve locks the descending fluid column when the motor stops.
Manufactured with a 304 Stainless Steel casing and technopolymer hydraulic components. The discharge head is precision-cast stainless steel. Supplied with an external starting control box and watertight heatshrink kit.
FEATURES
- Floating impeller system handles sand concentrations up to 150 g/m³
- Hexagonal stainless steel shaft provides effective impeller drive
- Front wear ring works in conjunction with the floating impeller to improve abrasion resistance
- Non-return valve prevents water column reversal on motor shutdown
- AISI 304 stainless steel casing offers corrosion resistance in deep well applications
- Technopolymer impeller provide corrosion resistance with lightweight technopolymer construction
- Includes control box and heatshrink kit for immediate commissioning
SPECIFICATIONS
| Max Flow | 140 L/Min |
| Max Head | 112 m |
| Power | 2.2 kW / 240v |
| Rated Current | 14.4 Amps |
| Suitable For | Water Supply System |
| Body Material | 304 Stainless Steel |
| Liquid Temperature | Maximum 35°C |
| Outlet Size | 32 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What maximum lift height can this high-capacity single-phase pump achieve?
Designed for deep primary water networks, the 6GS22M generates a maximum head of 112 metres with a peak flow of 140 L/Min.
How does this deep-well pump protect against reverse fluid drainage?
A metallic check valve built into the 6GS-22M locks descending fluid columns when the motor deactivates.
What is the operating current of this 2.2 kW single-phase borehole motor?
Running on a 240 V single-phase line, the 2.2 kW motor of the 6GS 22M draws 14.4 Amps during duty.
How does this submersible unit withstand high sand levels?
Floating stack construction enables the 6GS_22M to process abrasive liquids containing up to 150 g/m3 of sand.
What installation accessories are supplied for starting and splicing?
Supplied with the 6GS22M are an external starting control box and a watertight heatshrink kit for immediate commissioning.
