SKU: 6GS30-3

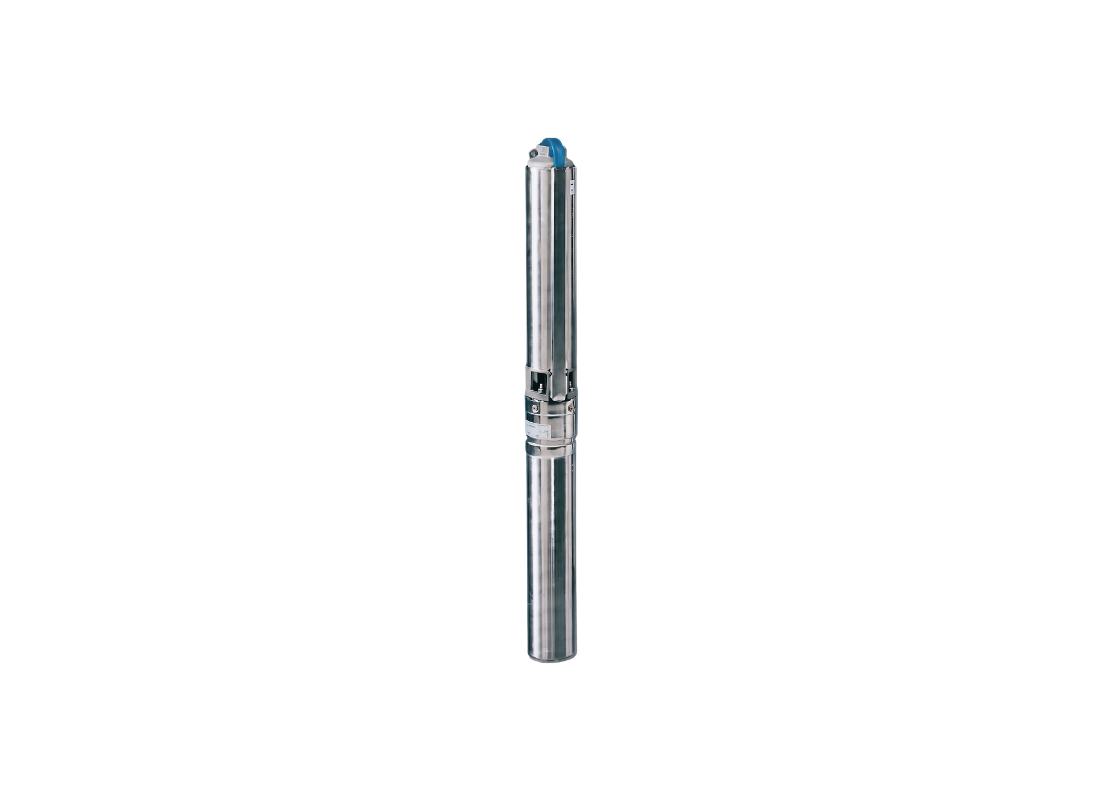

Lowara 6GS30-3 Stainless Steel 3-Phase 4" Submersible Bore Pump with Floating Impeller
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
Large-scale sprinkler irrigation from 4-inch boreholes to surface distribution grids is the purpose of this submersible pump, serving agricultural water management where reliable high-volume delivery is essential. The floating impeller configuration supports continuous operation in groundwater containing suspended solids.
Powered by a 415V three-phase motor rated at 3 kW, drawing 7.1 Amps during normal operation. Maximum flow reaches 140 L/Min with maximum head of 155 metres. The hydraulic performance supports sprinkler irrigation requirements effectively.
Floating stack construction processes liquids containing up to 150 g/m³ of suspended sand. The front wear ring works in conjunction with the floating impeller to improve abrasion resistance, while the hexagonal shaft provides effective impeller drive. An embedded stainless steel check valve arrests the falling water column when power is interrupted.
Manufactured with a 304 Stainless Steel casing and technopolymer hydraulic components. The discharge head is precision-cast stainless steel. Supplied with a professional-grade heatshrink kit for waterproof electrical splices.
FEATURES
- Floating impeller design handles abrasive groundwater without performance loss
- Hexagonal stainless steel shaft provides effective impeller drive
- Front wear ring works in conjunction with the floating impeller to improve abrasion resistance
- Non-return valve prevents water column drainage on motor shutdown
- AISI 304 stainless steel casing offers corrosion resistance in submerged environments
- Technopolymer impeller provide corrosion resistance with lightweight technopolymer construction
- Supplied with heatshrink kit for waterproof electrical connections
SPECIFICATIONS
| Max Flow | 140 L/Min |
| Max Head | 155 m |
| Power | 3 kW / 415v |
| Rated Current | 7.1 Amps |
| Suitable For | Sprinkler Irrigation |
| Body Material | 304 Stainless Steel |
| Liquid Temperature | Maximum 35°C |
| Outlet Size | 32 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Does this borehole pump arrest falling water columns when electrical power is cut?
Yes, an embedded stainless steel check valve in the 6GS30-3 arrests the falling water column when power is interrupted.
What is the maximum lift head for this large-scale sprinkler pump?
The 6GS-30-3 reaches a maximum head of 155 metres while delivering high-volume irrigation up to 140 L/Min.
What accessories are supplied for making waterproof electrical connections?
A professional-grade heatshrink kit is supplied with the 6GS 30 3 for creating watertight electrical splices.
How does this submersible unit handle abrasive sand in groundwater?
Floating stack construction enables the 6GS_30_3 to process liquids containing up to 150 g/m3 of suspended sand without binding.
What are the electrical power consumption and current specifications?
Powered by a 415 V three-phase motor rated at 3 kW, the 6GS30-3 draws 7.1 Amps during normal operation.
