Roll over image to zoom
SKU: 6GS40-3

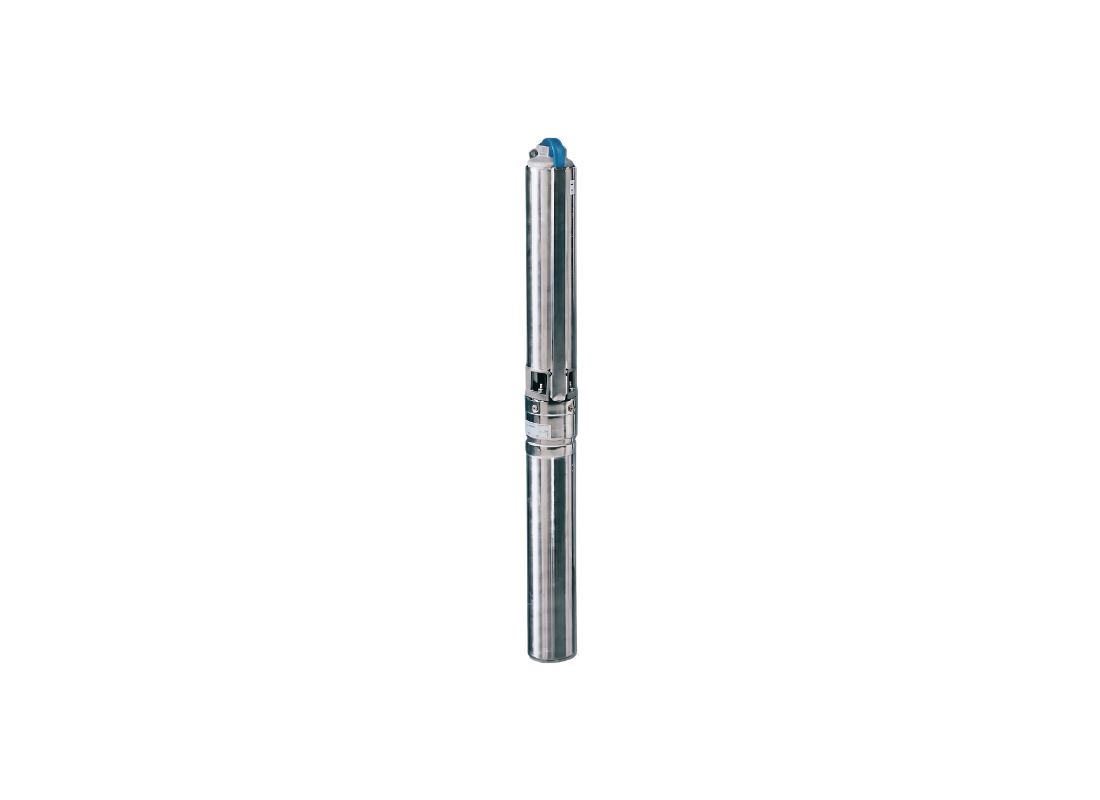

Lowara 6GS40-3 Stainless Steel 3-Phase 4" Submersible Bore Pump with Floating Impeller
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
Heavy fire protection reserves from extremely deep 4-inch boreholes are the primary application for this submersible pump, serving critical infrastructure where reliable emergency water supply is essential. The floating impeller configuration supports continuous operation in groundwater containing suspended solids.
Connected to a 415V three-phase supply, the 4 kW motor draws 9.8 Amps during normal duty. Maximum flow reaches 140 L/Min with maximum head of 207 metres. The hydraulic performance supports fire protection system requirements effectively.
Floating stack construction processes liquids containing up to 150 g/m³ of suspended sand. The front wear ring works in conjunction with the floating impeller to improve abrasion resistance, while the hexagonal shaft provides effective impeller drive. A heavy-duty non-return valve is pre-installed at the top outlet.
Manufactured with a 304 Stainless Steel casing and technopolymer hydraulic components. The discharge head is precision-cast stainless steel. Supplied with a watertight thermal shrink kit for seamless electrical jointing.
FEATURES
- Floating impeller design handles abrasive groundwater without performance loss
- Hexagonal stainless steel shaft provides effective impeller drive across all stages
- Front wear ring works in conjunction with the floating impeller to improve abrasion resistance
- Non-return valve prevents water column reversal on motor shutdown
- AISI 304 stainless steel casing offers corrosion resistance in submerged environments
- Technopolymer impeller provide lightweight technopolymer construction for smoother motor starts
- Supplied with heatshrink kit for waterproof electrical connections
SPECIFICATIONS
| Max Flow | 140 L/Min |
| Max Head | 207 m |
| Power | 4 kW / 415v |
| Rated Current | 9.8 Amps |
| Suitable For | Fire Protection System |
| Body Material | 304 Stainless Steel |
| Liquid Temperature | Maximum 35°C |
| Outlet Size | 32 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Is this submersible pump capable of supplying emergency fire protection reserves?
Yes, the 6GS40-3 provides the high-head vertical extraction and reliable high-volume delivery required for critical fire protection infrastructure.
What is the maximum head reached by this deep-well unit?
Reaching deep subterranean aquifers, the 6GS-40-3 achieves a maximum head of 207 metres with flow up to 140 L/Min.
How do the impellers assist with motor startup?
Lightweight technopolymer impellers in the 6GS 40 3 reduce starting inertia for smoother motor starts.
What accessory is included to seal the electrical cable splice?
The 6GS_40_3 comes supplied with a watertight thermal shrink kit for seamless electrical jointing.
Does this model prevent water from draining back into the well?
A heavy-duty non-return valve pre-installed at the top outlet of the 6GS40-3 prevents water column reversal upon shutdown.
