SKU: 6GS55-3

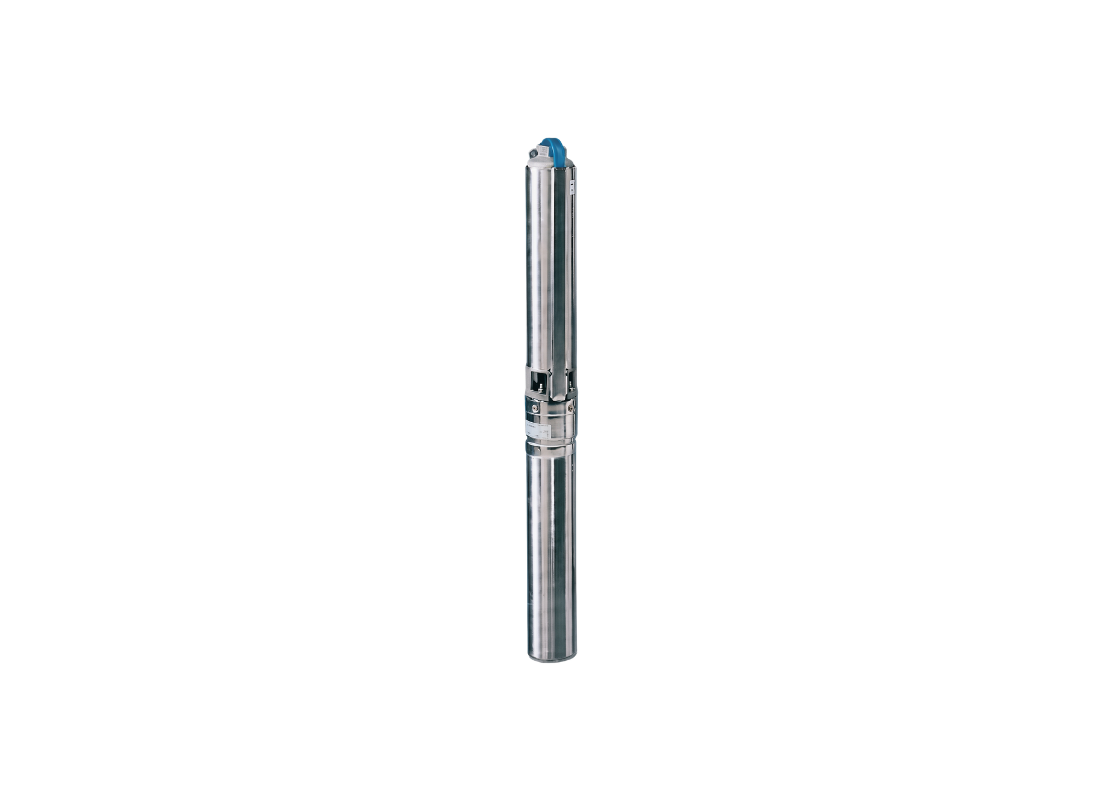

Lowara 6GS55-3 Stainless Steel 3-Phase 4" Submersible Bore Pump with Floating Impeller
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
Heavy pressure boosting networks from narrow 4-inch boreholes are the domain of this submersible pump, serving extreme deep-well fluid transfer where high-volume delivery is essential. The floating impeller configuration supports continuous operation in groundwater containing suspended solids.
Operating on a 415V three-phase supply, the 5.5 kW motor draws 13.7 Amps during normal duty. Maximum flow reaches 140 L/Min with maximum head of 283 m. The hydraulic performance supports demanding pressure boosting requirements effectively.
Floating stack construction processes abrasive liquids containing up to 150 g/m³ of suspended sand. The front wear ring works in conjunction with the floating impeller to improve abrasion resistance, while the hexagonal shaft ensures effective impeller drive. A metallic check valve locks the descending fluid column when the motor stops.
Manufactured with a 304 Stainless Steel casing and technopolymer hydraulic components. The discharge head is precision-cast stainless steel. Supplied with an industrial-grade heatshrink kit for waterproof electrical splices.
FEATURES
- Floating impeller system handles abrasive groundwater without efficiency loss
- Hexagonal stainless steel shaft provides effective impeller drive
- Front wear ring works in conjunction with the floating impeller to improve abrasion resistance
- Non-return valve prevents water column reversal on motor shutdown
- AISI 304 stainless steel casing offers corrosion resistance in extreme depth applications
- Technopolymer impeller provide corrosion resistance with lightweight technopolymer construction
- Supplied with heatshrink kit for waterproof electrical connections
SPECIFICATIONS
| Max Flow | 140 L/Min |
| Max Head | 283 m |
| Power | 5.5 kW / 415v |
| Rated Current | 13.7 Amps |
| Suitable For | Pressure Boosting |
| Body Material | 304 Stainless Steel |
| Liquid Temperature | Maximum 35°C |
| Outlet Size | 32 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What is the maximum lift head produced by this extreme-depth booster pump?
The 6GS55-3 achieves an impressive maximum head of 283 metres while delivering high-volume flow up to 140 L/Min.
How does this borehole pump protect against reverse fluid drainage when stopped?
A metallic check valve in the 6GS-55-3 locks the descending fluid column when the motor stops to prevent reverse drainage.
What casing material provides corrosion resistance for continuous immersion?
The AISI 304 stainless steel casing of the 6GS 55 3 offers superior corrosion resistance for deep-well fluid transfer.
How does the drive mechanism ensure positive torque transmission under heavy load?
A rigid hexagonal stainless steel shaft in the 6GS_55_3 ensures effective torque transmission across all impeller stages without slippage.
What are the motor power rating and current specifications for this unit?
Powered by a 5.5 kW motor on a 415 V three-phase line, the 6GS55-3 draws 13.7 Amps during normal duty.
