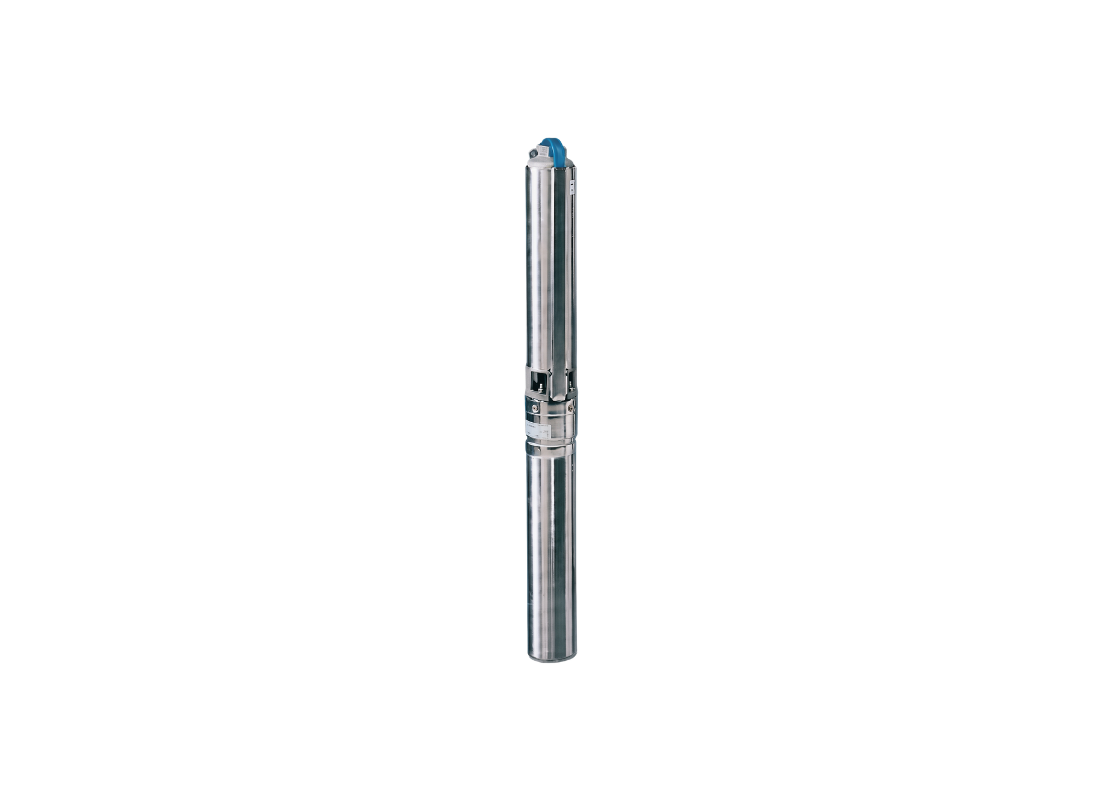

Lowara 6GS55R-3 Stainless Steel 3-Phase 4" Submersible Bore Pump with Floating Impeller
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
Demanding municipal water supply networks from 4-inch boreholes are the focus of this submersible pump, serving extreme depth extraction where massive high-volume delivery is essential. The floating impeller design maintains stable hydraulic performance in groundwater containing suspended particulates.
Operating on a 415V three-phase supply, the 5.5 kW motor draws 13.7 Amps during normal operation. Maximum flow reaches 140 L/Min with maximum head of 239 metres. The hydraulic performance supports high-volume water supply requirements effectively.
Floating stack construction processes liquids containing up to 150 g/m³ of suspended sand. The front wear ring works in conjunction with the floating impeller to improve abrasion resistance, while the hexagonal shaft provides effective impeller drive. An integrated check valve prevents back-siphoning into the well.
Constructed with a 304 Stainless Steel casing and technopolymer hydraulic components. The discharge head is precision-cast stainless steel. Supplied with an industrial-grade watertight heatshrink kit for motor cable splicing.
FEATURES
- Floating impeller system handles sand concentrations up to 150 g/m³
- Hexagonal stainless steel shaft provides effective impeller drive
- Front wear ring works in conjunction with the floating impeller to improve abrasion resistance
- Non-return valve prevents water column drainage on motor shutdown
- AISI 304 stainless steel casing offers corrosion resistance in deep well applications
- Technopolymer impeller provide corrosion resistance with lightweight technopolymer construction
- Supplied with heatshrink kit for waterproof electrical connections
SPECIFICATIONS
| Max Flow | 140 L/Min |
| Max Head | 239 m |
| Power | 5.5 kW / 415v |
| Rated Current | 13.7 Amps |
| Suitable For | Water Supply System |
| Body Material | 304 Stainless Steel |
| Liquid Temperature | Maximum 35°C |
| Outlet Size | 32 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What electrical power supply and running current are needed for this municipal pump?
Operating on a 415 V three-phase supply, the 5.5 kW motor of the 6GS55R-3 draws 13.7 Amps during normal operation.
How high can this high-volume deep extraction pump elevate water?
The 6GS-55R-3 delivers a maximum discharge head of 239 metres with flow capability reaching 140 L/Min.
Does this pump prevent back-siphoning into the well?
Yes, an integrated check valve in the 6GS 55R 3 prevents back-siphoning into the borehole when the motor deactivates.
How does the internal hydraulic stack tolerate abrasive particulates?
The floating impeller system and front wear ring in the 6GS_55R_3 work together to handle sand concentrations up to 150 g/m3.
What cable connection accessories are provided in the package?
An industrial-grade watertight heatshrink kit is supplied with the 6GS55R-3 for motor cable splicing.
