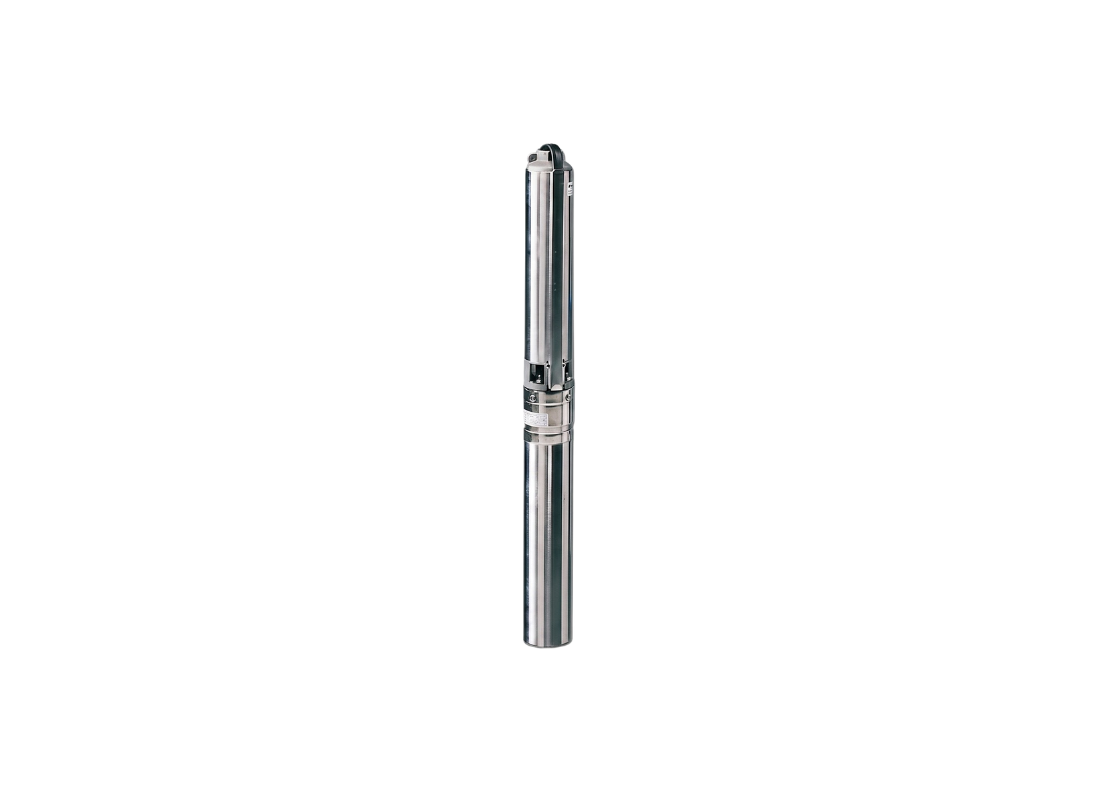

Lowara 8GS07-3 Stainless Steel 4" Submersible Bore Pump with Floating Impeller
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
Industrial water supply and municipal distribution systems require pumps that operate continuously without interruption. The Lowara 8GS07-3, a three-phase submersible bore pump, provides consistent groundwater extraction from 4-inch boreholes for commercial and agricultural networks. Its floating impeller design maintains performance in water containing suspended solids.
A 0.75 kW three-phase motor on 415 V draws 2.4 Amps during normal running. Maximum flow reaches 183 L/Min, while maximum head extends to 26.6 metres at shut-off. The motor requires a minimum fluid velocity of 8 cm/s around the casing for effective cooling, and supports up to 30 starts per hour. This efficiency makes the unit suitable for continuous operation in industrial settings.
Floating impeller construction permits the passage of suspended sand up to 150 g/m³ without compromising internal clearances or efficiency. The hexagonal pump shaft ensures reliable torque transfer across all stages, while the front wear ring works with the floating impeller to improve abrasion resistance. An integrated stainless steel check valve prevents destructive backflow when the motor stops.
Precision-cast stainless steel upper and lower support brackets maintain alignment between the pump and motor. The 99 mm casing diameter fits standard 4-inch boreholes, with a 50 mm threaded outlet. Rated for continuous submersion in liquids up to 35°C, the complete package includes a heatshrink kit for waterproof electrical connections.
FEATURES
- Floating impeller system handles abrasive groundwater without performance loss
- Hexagonal stainless steel shaft provides effective drive across all pump stages
- Front wear ring improves resistance to abrasive wear in sandy conditions
- Integrated non-return valve prevents reverse flow on motor shutdown
- AISI 304 stainless steel construction offers corrosion resistance during submersion
- Technopolymer impeller reduces starting torque requirements
- Supplied with heatshrink kit for waterproof electrical connections
SPECIFICATIONS
| Max Flow | 183 L/Min |
| Max Head | 26 m |
| Power | 0.75 kW / 415v |
| Rated Current | 2.4 Amps |
| Suitable For | Industrial Supply |
| Body Material | Stainless Steel |
| Liquid Temperature | Maximum 35°C |
| Outlet Size | 50 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What three-phase electrical power does this industrial borehole motor require?
Driven by a 415 V three-phase motor rated at 0.75 kW, the 8GS07-3 draws 2.4 Amps during normal running.
What minimum water flow velocity is needed around the casing for motor cooling?
The motor of the 8GS-07-3 requires a minimum surrounding fluid velocity of 8 cm/s for effective cooling.
What are the maximum flow rate and head outputs of this model?
The 8GS 07 3 achieves a maximum flow of 183 L/Min with a shut-off head extending to 26.6 metres.
What discharge port size is built into this submersible pump?
The 8GS_07_3 features a standard 50 mm threaded outlet port for connecting directly to rising mains.
How does this pump protect against destructive reverse flow upon shutdown?
An integrated stainless steel check valve in the 8GS07-3 prevents destructive backflow when the motor stops.
