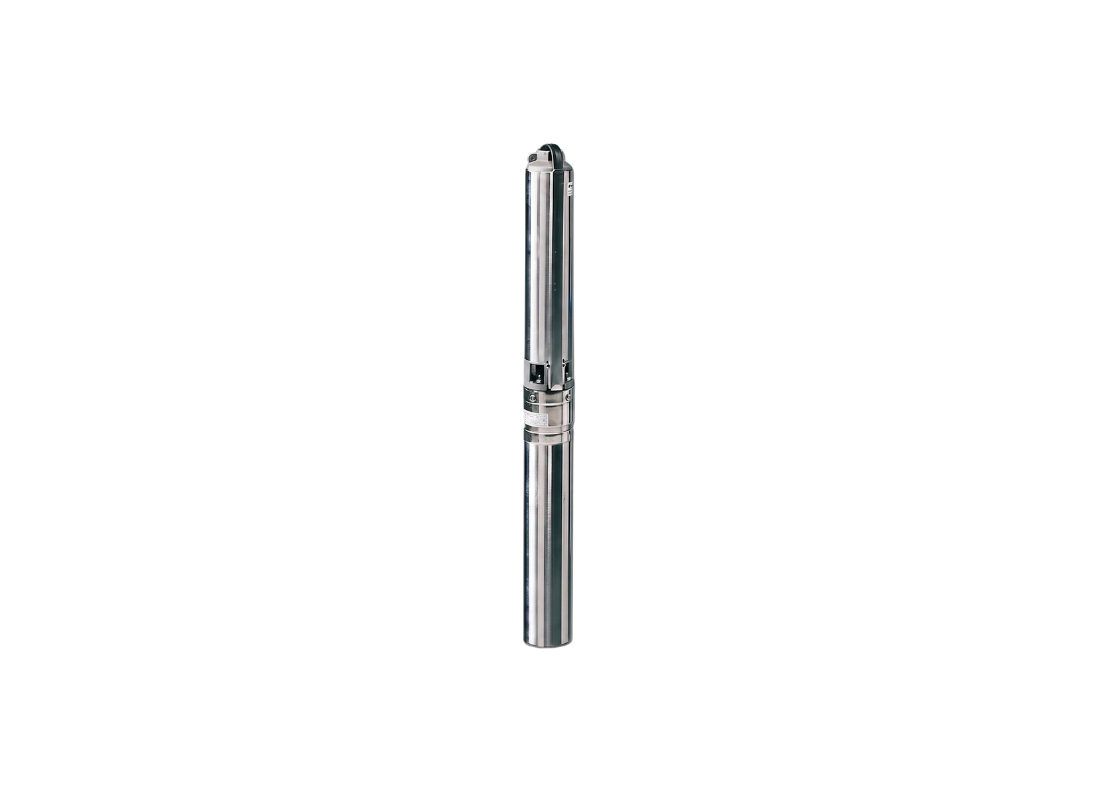

Lowara 8GS11-1 Stainless Steel 4" Submersible Bore Pump with Floating Impeller
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
Where consistent groundwater delivery is essential for domestic supply and agricultural transfer, the Lowara 8GS11-1 provides dependable extraction from 4-inch drilled wells. This submersible bore pump handles continuous operation in sprinkler irrigation and residential water systems, maintaining performance even when the source contains suspended sand or silt. The floating impeller system ensures stable flow under varying drawdown conditions.
Power comes from a 1.1 kW single-phase motor running on 240 V, drawing 7.6 Amps during normal duty. Maximum flow reaches 183 L/Min, while maximum head extends to 37.2 metres at shut-off. The motor requires a minimum fluid velocity of 8 cm/s around the casing for adequate cooling, and supports up to 30 starts per hour for intermittent operation. This combination makes the unit suitable for systems where demand fluctuates throughout the day.
Within the hydraulic section, floating impellers allow suspended particles up to 150 g/m³ to pass without compromising internal clearances or efficiency. The hexagonal shaft delivers torque reliably across all stages, while the front wear ring works with the floating impeller to improve abrasion resistance. An integrated stainless steel check valve prevents destructive backflow when the motor stops, protecting the system from water hammer.
Precision-cast stainless steel upper and lower supports maintain rigid alignment between the pump and motor under load. The 99 mm diameter casing fits standard 4-inch boreholes, with a 50 mm threaded outlet for connection to rising mains. Rated for continuous immersion in liquids up to 35°C, the complete unit comes with a control box and heatshrink kit for secure electrical connections.
FEATURES
- Floating impeller design handles abrasive groundwater without performance loss
- Hexagonal stainless steel shaft provides effective drive across all pump stages
- Front wear ring improves resistance to abrasive wear in sandy conditions
- Integrated non-return valve prevents reverse flow on motor shutdown
- AISI 304 stainless steel construction offers corrosion resistance during submersion
- Technopolymer impeller reduces starting torque requirements
- Complete with control box and heatshrink kit for rapid installation
SPECIFICATIONS
| Max Flow | 183 L/Min |
| Max Head | 37 m |
| Power | 1.1 kW / 240v |
| Rated Current | 7.6 Amps |
| Suitable For | Domestic Supply |
| Body Material | Stainless Steel |
| Liquid Temperature | Maximum 35°C |
| Outlet Size | 50 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How does this borehole pump prevent destructive water hammer when shut down?
An integrated stainless steel check valve in the 8GS11-1 stops destructive backflow upon shutdown, protecting the system from water hammer.
What is the running current of this 1.1 kW single-phase motor?
Operating on a 240 V supply, the 1.1 kW motor of the 8GS-11-1 draws 7.6 Amps during normal duty.
What is the maximum head reached by this residential water supply pump?
The 8GS 11 1 delivers a maximum head of 37.2 metres at shut-off while providing flow rates up to 183 L/Min.
How does the pump maintain alignment between the motor and wet end?
Precision-cast stainless steel upper and lower supports maintain rigid alignment under load in the 8GS_11_1.
How much suspended sand can this pump handle without losing efficiency?
Floating stack construction permits the 8GS11-1 to pass suspended sand concentrations up to 150 g/m3 without binding.
