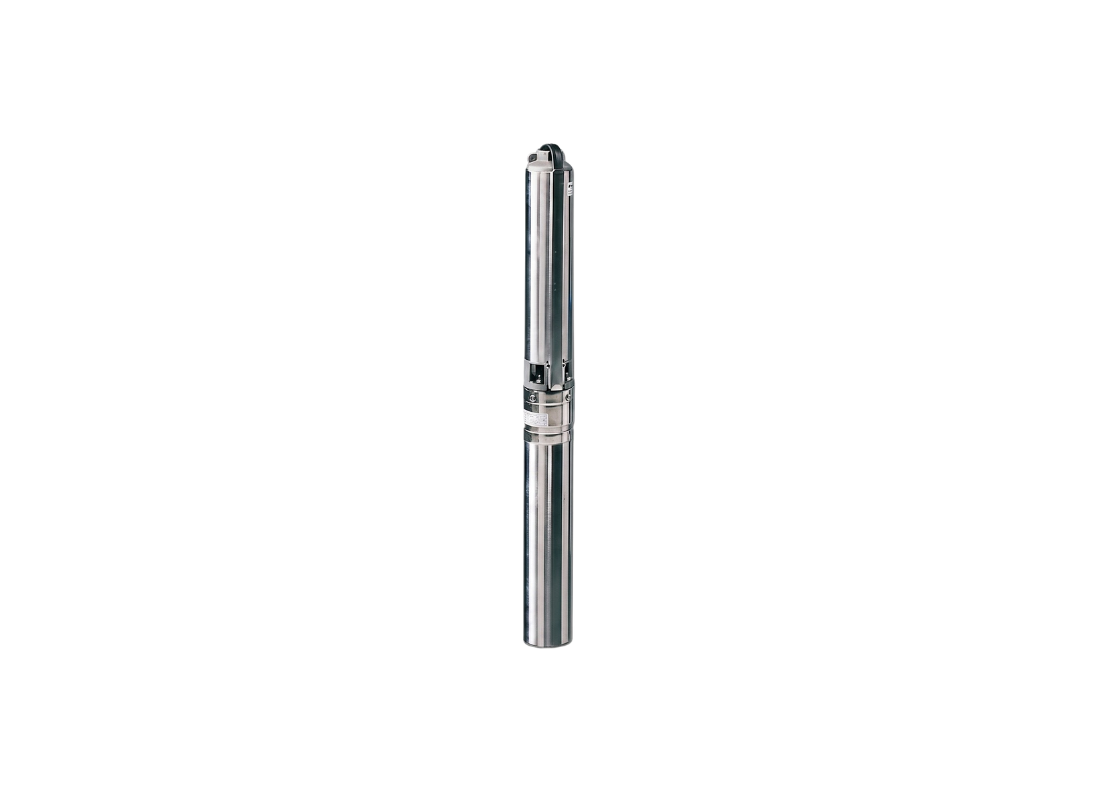

Lowara 8GS11-12L Stainless Steel 2-Wire 4" Submersible Bore Pump with Floating Impeller
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
Agricultural irrigation applications benefit from the Lowara 8GS11-12L, a 4-inch 2-wire submersible bore pump that simplifies installation by removing the need for a surface control box. This unit efficiently extracts groundwater from deep wells. The floating impeller configuration supports performance in water containing suspended solids.
A 1.1 kW single-phase motor on 240 V draws 7.6 Amps during normal operation. Maximum flow reaches 183 L/Min, while maximum head extends to 37.2 metres at shut-off. The motor requires a minimum fluid velocity of 8 cm/s around the casing for effective cooling, and supports up to 30 starts per hour.
Inside the hydraulic section, floating impellers allow suspended particles up to 150 g/m³ to pass without compromising internal clearances. The hexagonal pump shaft delivers torque reliably across all stages, while the front wear ring works with the floating impeller to improve abrasion resistance. An integrated stainless steel check valve prevents destructive backflow when the motor stops.
Precision-cast stainless steel upper and lower support brackets maintain alignment between the pump and motor. The 99 mm diameter casing fits standard 4-inch boreholes, with a 50 mm threaded outlet. Rated for continuous immersion in liquids up to 35°C, the complete unit comes with a heatshrink kit for secure electrical connections.
Features
- Two-wire motor design with built-in capacitor simplifies electrical installation
- Floating impeller system handles abrasive groundwater without performance loss
- Hexagonal stainless steel shaft provides effective drive across all pump stages
- Front wear ring improves resistance to abrasive wear in sandy conditions
- Integrated non-return valve prevents reverse flow on motor shutdown
- AISI 304 stainless steel construction offers corrosion resistance during submersion
- Supplied with heatshrink kit for waterproof electrical connections
SPECIFICATIONS
| Max Flow | 183 L/Min |
| Max Head | 37 m |
| Power | 1.1 kW / 240v |
| Rated Current | 7.6 Amps |
| Suitable For | Agricultural Irrigation |
| Body Material | Stainless Steel |
| Liquid Temperature | Maximum 35°C |
| Outlet Size | 50 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What are the maximum head and flow capabilities of this agricultural pump?
The 8GS11-12L achieves a maximum head of 37.2 metres at shut-off while supplying flow rates up to 183 L/Min.
Does this model require an external starting box to operate?
The 2-wire motor design with an internal capacitor allows the 8GS-11-12L to run directly without a surface starter box.
What minimum water flow velocity around the casing is required for cooling?
The motor of the 8GS 11 12L requires a surrounding fluid velocity of at least 8 cm/s for effective cooling.
How does this unit prevent backflow and water column drainage?
An integrated stainless steel check valve inside the 8GS_11_12L arrests descending water columns on shutdown.
What is the operating current of this 1.1 kW single-phase motor?
Connected to a 240 V single-phase supply, the 1.1 kW motor of the 8GS11-12L draws 7.6 Amps.
