SKU: 8GS15-1

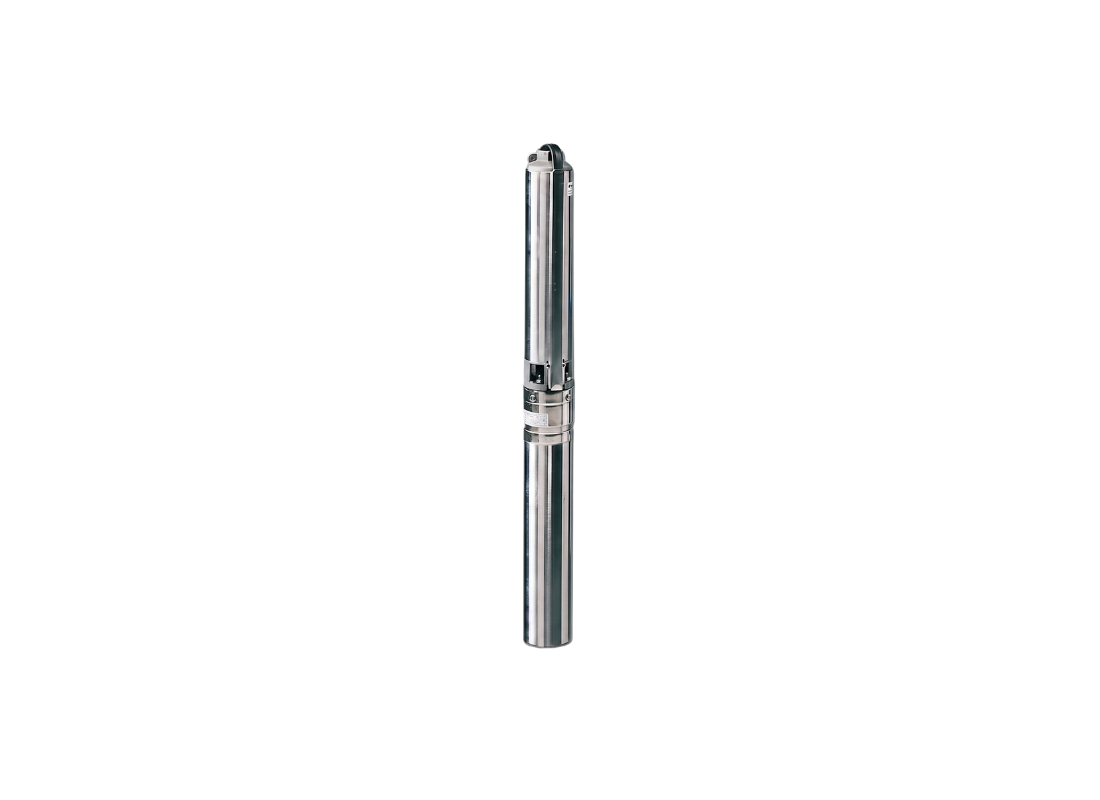

Lowara 8GS15-1 Stainless Steel 4" Submersible Bore Pump with Floating Impeller
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
Designed to support high-demand sprinkler irrigation and municipal fluid transfer, the Lowara 8GS15-1 delivers groundwater extraction from 4-inch drilled wells. This submersible bore pump provides reliable operation in agricultural and municipal networks where consistent water delivery is critical. The floating impeller design maintains hydraulic efficiency even when handling water containing suspended solids.
A 1.5 kW single-phase motor operating on 240 V draws 10.5 Amps during normal running. Maximum flow reaches 183 L/Min, while maximum head extends to 53.1 metres at shut-off. The motor requires a minimum fluid velocity of 8 cm/s around the casing for effective cooling, and supports up to 30 starts per hour for systems with variable demand. This performance profile suits applications requiring both volume and moderate lift.
Floating stack construction permits sand concentrations up to 150 g/m³ to pass without damaging internal clearances. The hexagonal pump shaft delivers torque reliably across all stages, while the front wear ring works with the floating impeller to improve abrasion resistance. A stainless steel non-return valve integrated into the discharge head prevents reverse flow when the pump stops, protecting against water hammer.
Precision-cast stainless steel upper and lower support brackets create a rigid coupling between the pump and motor, maintaining alignment under load. The 99 mm diameter casing fits standard 4-inch boreholes, with a 50 mm threaded discharge outlet. Rated for continuous submersion in liquids up to 35°C, the complete package includes a control box and heatshrink kit for straightforward electrical terminations.
FEATURES
- Floating hydraulic stack allows sand and abrasives to pass without binding
- Hexagonal stainless steel shaft ensures effective impeller drive without slippage
- Front wear ring improves abrasion resistance in sandy groundwater conditions
- Integrated non-return valve stops reverse flow when the pump shuts down
- AISI 304 stainless steel casing resists corrosion during long-term submersion
- Technopolymer impeller reduces starting torque for smoother motor operation
- Complete with control box and heatshrink kit for immediate installation
SPECIFICATIONS
| Max Flow | 183 L/Min |
| Max Head | 53 m |
| Power | 1.5 kW / 240v |
| Rated Current | 10.5 Amps |
| Suitable For | Sprinkler Irrigation |
| Body Material | Stainless Steel |
| Liquid Temperature | Maximum 35°C |
| Outlet Size | 50 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How many starts per hour does this single-phase borehole motor support?
The 8GS15-1 supports up to 30 starts per hour, making it suitable for systems with varying demand.
What is the maximum lift height of this agricultural fluid transfer pump?
The 8GS-15-1 reaches a maximum head of 53.1 metres at shut-off while supplying high-demand flow up to 183 L/Min.
What power supply and current draw are required for standard operation?
Powered by a 1.5 kW single-phase motor on 240 V, the 8GS 15 1 draws 10.5 Amps during normal running.
What is the maximum liquid temperature rating for continuous submersion?
The 8GS_15_1 is rated for continuous submersion in liquid temperatures up to 35°C.
What accessories are provided for electrical installation?
The 8GS15-1 package includes an external control box and a heatshrink kit for straightforward electrical terminations.
