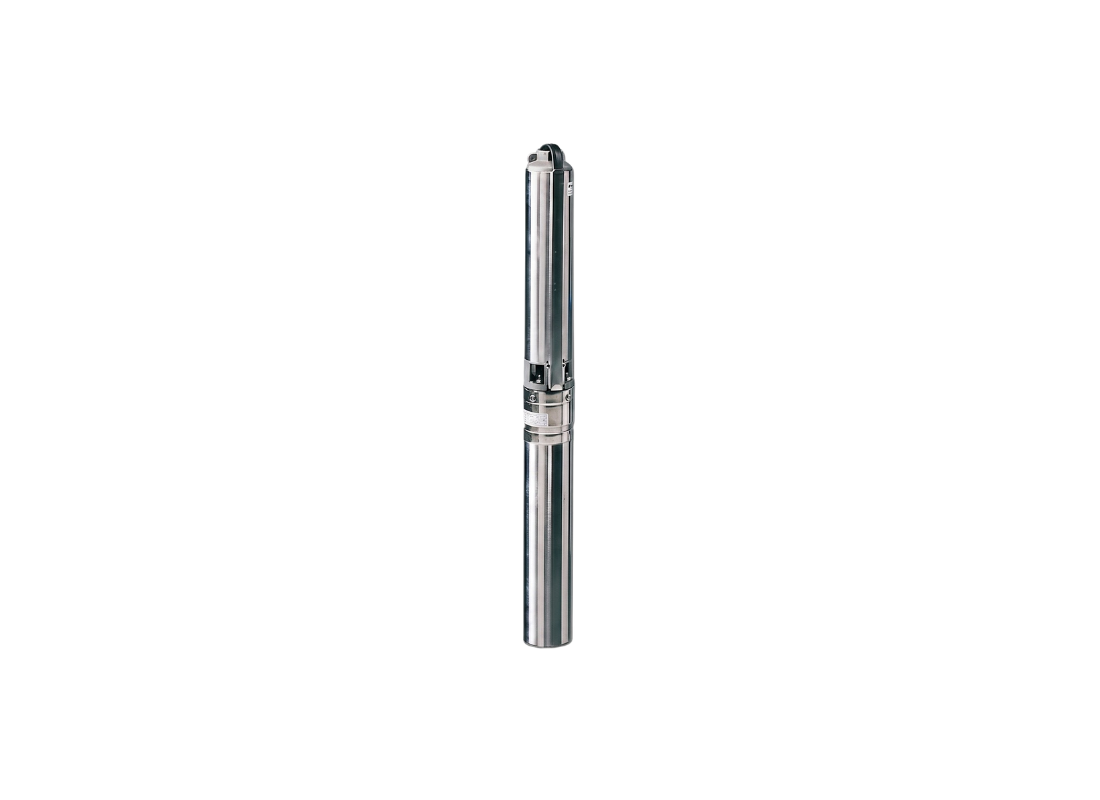

Lowara 8GS15-3 Stainless Steel 4" Submersible Bore Pump with Floating Impeller
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
Agricultural networks and commercial pressure boosting systems rely on pumps that deliver consistent groundwater extraction without interruption. The Lowara 8GS15-3, a three-phase submersible bore pump, provides reliable service from 4-inch boreholes. Its floating impeller design maintains performance in water containing suspended solids.
Driven by a 1.5 kW three-phase motor on 415 V, the unit draws 4.4 Amps during normal operation. Maximum flow reaches 183 L/Min, while maximum head extends to 53.1 metres at shut-off. The motor requires a minimum fluid velocity of 8 cm/s around the casing for effective cooling, and supports up to 30 starts per hour. This combination suits applications requiring substantial volume and lift.
Floating stack construction permits the passage of sand concentrations up to 150 g/m³ without compromising internal clearances. The hexagonal pump shaft ensures reliable torque transfer across all stages, while the front wear ring works with the floating impeller to improve abrasion resistance. An integrated stainless steel check valve prevents destructive backflow when the motor stops.
Precision-cast stainless steel upper and lower support brackets maintain alignment between the pump and motor. The 99 mm casing diameter fits standard 4-inch boreholes, with a 50 mm threaded outlet. Rated for continuous submersion in liquids up to 35°C, the complete package includes a heatshrink kit for waterproof electrical connections.
FEATURES
- Floating impeller system handles abrasive groundwater without performance degradation
- Hexagonal stainless steel shaft provides effective drive across all pump stages
- Front wear ring improves resistance to abrasive wear in sandy conditions
- Integrated non-return valve prevents reverse flow on motor shutdown
- AISI 304 stainless steel construction offers corrosion resistance during submersion
- Technopolymer impeller reduces starting torque requirements
- Supplied with heatshrink kit for waterproof electrical connections
SPECIFICATIONS
| Max Flow | 183 L/Min |
| Max Head | 53 m |
| Power | 1.5 kW / 415v |
| Rated Current | 4.4 Amps |
| Suitable For | Pressure Boosting |
| Body Material | Stainless Steel |
| Liquid Temperature | Maximum 35°C |
| Outlet Size | 50 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What discharge connection size is provided on this three-phase borehole pump?
The 8GS15-3 incorporates a 50 mm threaded discharge outlet designed to fit standard rising main pipework.
What maximum pressure head can this commercial pressure boosting pump produce?
The 8GS-15-3 generates a maximum head of 53.1 metres at shut-off while delivering flow rates up to 183 L/Min.
What are the electrical power consumption and current specifications?
Driven by a 1.5 kW three-phase motor on 415 V, the 8GS 15 3 draws 4.4 Amps during normal operation.
How does this unit maintain rigid alignment between the motor and pump?
Precision-cast stainless steel upper and lower support brackets maintain rigid alignment under load in the 8GS_15_3.
How do the impeller materials benefit motor operation during startup?
Technopolymer impellers in the 8GS15-3 reduce starting torque requirements for smoother motor acceleration.
