SKU: 8GS22-1

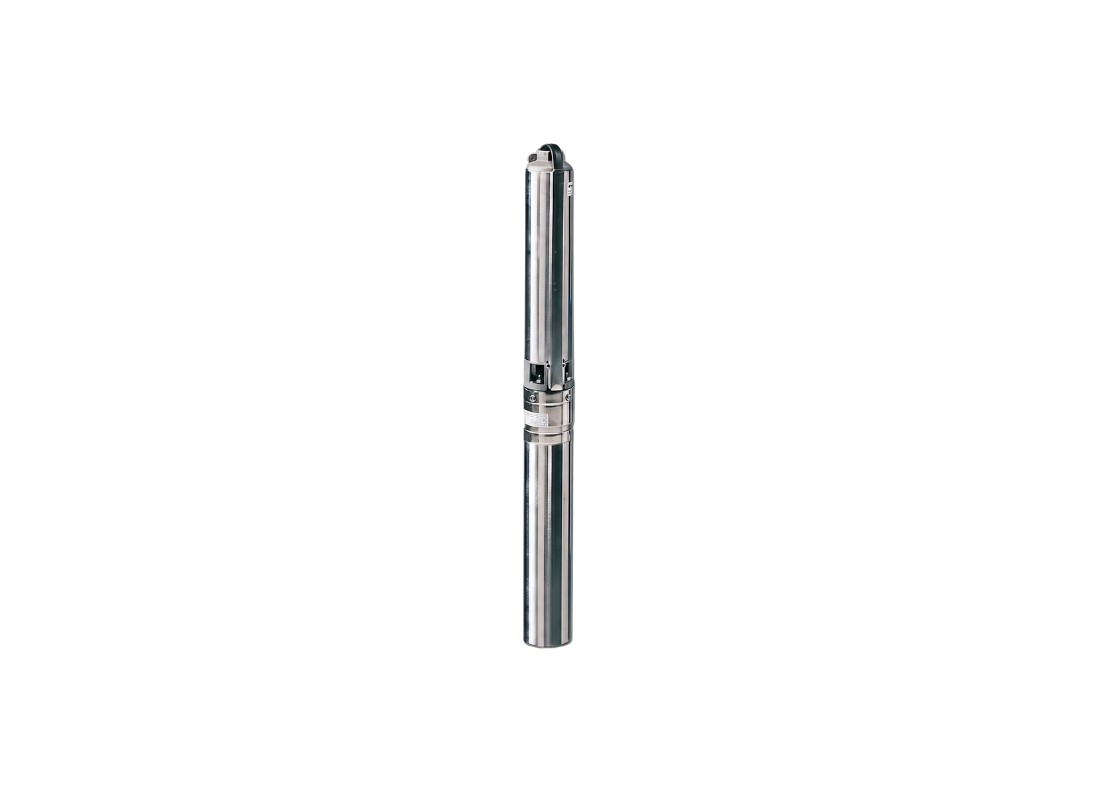

Lowara 8GS22-1 Stainless Steel 4" Submersible Bore Pump with Floating Impeller
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
Borehole systems requiring high-head performance benefit from the Lowara 8GS22-1, a 4-inch submersible bore pump engineered for pressure boosting and large-scale agricultural distribution. This unit delivers consistent water transfer across residential and industrial networks, maintaining performance even when groundwater contains suspended particulates. The floating impeller configuration ensures reliable operation under varying drawdown conditions.
Power comes from a 2.2 kW single-phase motor running on 240 V, drawing 14.4 Amps during normal duty. Maximum flow reaches 183 L/Min, while maximum head extends to 81.2 metres at shut-off. The motor requires a minimum fluid velocity of 8 cm/s around the casing for adequate cooling, and supports up to 30 starts per hour. This combination suits applications requiring substantial lift and moderate flow.
Inside the hydraulic section, floating impellers allow suspended particles up to 150 g/m³ to pass without compromising internal clearances. The hexagonal pump shaft delivers torque reliably across all stages, while the front wear ring works with the floating impeller to improve abrasion resistance. A stainless steel non-return valve integrated into the discharge head prevents reverse flow when the pump stops, protecting against water hammer.
Precision-cast stainless steel upper and lower supports maintain rigid alignment between the pump and motor under load. The 99 mm diameter casing fits standard 4-inch boreholes, with a 50 mm threaded outlet. Rated for continuous immersion in liquids up to 35°C, the complete unit comes with a control box and heatshrink kit for secure electrical connections.
FEATURES
- Floating impeller design handles abrasive groundwater without performance degradation
- Hexagonal stainless steel shaft provides effective drive across all pump stages
- Front wear ring improves resistance to abrasive wear in sandy conditions
- Integrated non-return valve prevents reverse flow on motor shutdown
- AISI 304 stainless steel construction offers corrosion resistance during submersion
- Technopolymer impeller reduces starting torque requirements
- Includes control box and heatshrink kit for rapid installation
SPECIFICATIONS
| Max Flow | 183 L/Min |
| Max Head | 81 m |
| Power | 2.2 kW / 240v |
| Rated Current | 14.4 Amps |
| Suitable For | Pressure Boosting |
| Body Material | Stainless Steel |
| Liquid Temperature | Maximum 35°C |
| Outlet Size | 50 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What casing diameter and borehole size are compatible with this pump?
The 8GS22-1 features a 99 mm outer casing diameter designed to fit standard 4-inch drilled boreholes.
What is the maximum head capability of this high-lift single-phase pump?
Reaching high-head performance, the 8GS-22-1 achieves a maximum head of 81.2 metres with flow up to 183 L/Min.
How much current does this 2.2 kW single-phase motor draw under load?
Running on a 240 V single-phase supply, the 2.2 kW motor in the 8GS 22 1 draws 14.4 Amps during normal duty.
How does this unit prevent drive slippage across its stages?
A hexagonal stainless steel shaft in the 8GS_22_1 delivers reliable torque transfer across all stages without slippage.
Does this pump include equipment to hold the water column and protect against backflow?
An integrated stainless steel non-return valve inside the discharge head of the 8GS22-1 prevents reverse flow when the pump stops.
