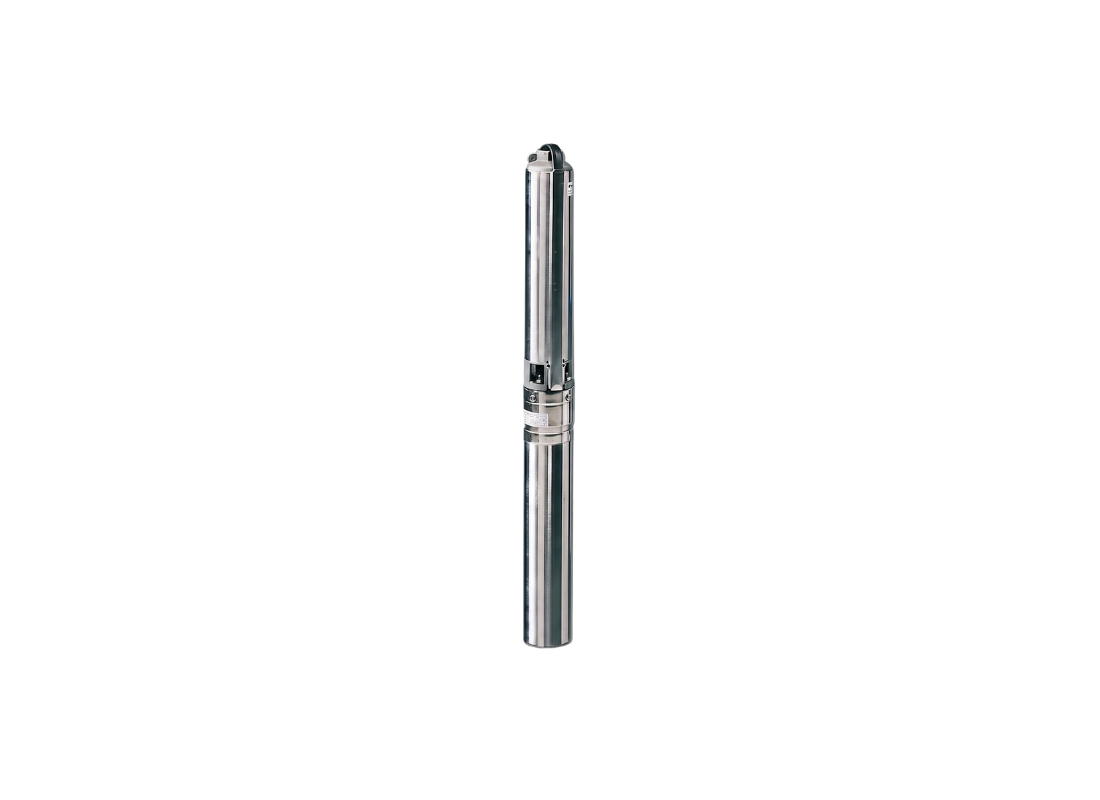

Lowara 8GS22-3 Stainless Steel 4" Submersible Bore Pump with Floating Impeller
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
Deep drilled wells used for sprinkler irrigation and municipal supply benefit from the Lowara 8GS22-3, a three-phase submersible bore pump designed for permanent submersion. This 4-inch unit provides reliable water transfer for agricultural and industrial facilities, maintaining performance even when groundwater contains suspended particulates. The floating impeller configuration ensures stable operation under varying demand.
A 2.2 kW three-phase motor on 415 V draws 6.1 Amps during normal operation. Maximum flow reaches 183 L/Min, while maximum head extends to 81.2 metres at shut-off. The motor requires a minimum fluid velocity of 8 cm/s around the casing for effective cooling, and supports up to 30 starts per hour. This performance suits applications requiring substantial lift and moderate flow.
Floating stack construction permits sand concentrations up to 150 g/m³ to pass without compromising internal clearances. The hexagonal pump shaft delivers torque reliably across all stages, while the front wear ring works with the floating impeller to improve abrasion resistance. An integrated stainless steel check valve prevents destructive backflow when the motor stops.
Precision-cast stainless steel upper and lower supports maintain rigid alignment between the pump and motor. The 99 mm diameter casing fits standard 4-inch boreholes, with a 50 mm threaded outlet. Rated for continuous immersion in liquids up to 35°C, the complete unit comes with a heatshrink kit for secure electrical connections.
FEATURES
- Floating hydraulic stack allows sand and abrasives to pass without binding
- Hexagonal stainless steel shaft ensures effective impeller drive without slippage
- Front wear ring improves abrasion resistance in sandy groundwater conditions
- Integrated non-return valve stops reverse flow when the pump shuts down
- AISI 304 stainless steel casing resists corrosion during long-term submersion
- Technopolymer impeller reduces starting torque for smoother motor operation
- Supplied with heatshrink kit for waterproof electrical connections
SPECIFICATIONS
| Max Flow | 183 L/Min |
| Max Head | 81 m |
| Power | 2.2 kW / 415v |
| Rated Current | 6.1 Amps |
| Suitable For | Sprinkler Irrigation |
| Body Material | Stainless Steel |
| Liquid Temperature | Maximum 35°C |
| Outlet Size | 50 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What is the maximum lift height for this deep drilled well pump?
The 8GS22-3 achieves a maximum head of 81.2 metres at shut-off with flow capability reaching 183 L/Min.
What is the running current for this 2.2 kW three-phase motor?
Operating on a 415 V three-phase supply, the 2.2 kW motor of the 8GS-22-3 draws 6.1 Amps.
What casing dimensions allow this pump to fit into standard boreholes?
With a casing diameter of 99 mm, the 8GS 22 3 fits standard 4-inch drilled wells.
Does this pump include backflow protection to stop water hammer?
An integrated stainless steel check valve in the 8GS_22_3 prevents destructive backflow when the motor stops.
What is the maximum fluid temperature this unit can be submerged in?
The 8GS22-3 is rated for permanent submersion in liquid temperatures up to 35°C.
