SKU: 8GS30-3

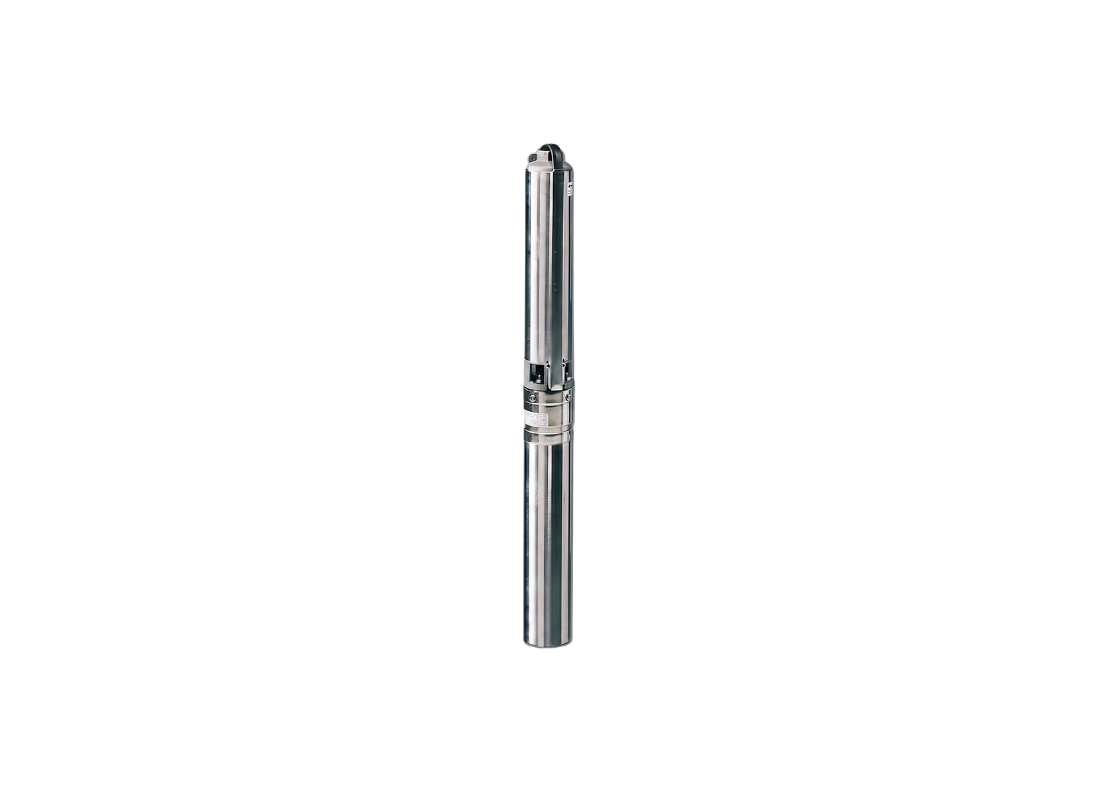

Lowara 8GS30-3 Stainless Steel 4" Submersible Bore Pump with Floating Impeller
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
Heavy-duty industrial water supply and large-scale agricultural irrigation require pumps that handle continuous extraction without compromising performance. The Lowara 8GS30-3, a three-phase submersible bore pump, provides exceptional fluid transfer from 4-inch boreholes. Its floating impeller system maintains efficiency in water containing suspended solids.
Driven by a 3.0 kW three-phase motor on 415 V, the unit draws 7.1 Amps during normal operation. Maximum flow reaches 183 L/Min, while maximum head extends to 113.2 metres at shut-off. The motor requires a minimum fluid velocity of 8 cm/s around the casing for adequate cooling, and supports up to 30 starts per hour. This combination suits applications requiring significant lift and moderate volume.
Inside the hydraulic section, floating impellers allow suspended particles up to 150 g/m³ to pass without compromising internal clearances. The hexagonal pump shaft delivers torque reliably across all stages, while the front wear ring works with the floating impeller to improve abrasion resistance. An integrated stainless steel check valve prevents destructive backflow when the motor stops.
Precision-cast stainless steel upper and lower support brackets maintain alignment between the pump and motor. The 99 mm diameter casing fits standard 4-inch boreholes, with a 50 mm threaded outlet. Rated for continuous submersion in liquids up to 35°C, the complete package includes a heatshrink kit for waterproof electrical connections.
FEATURES
- Floating impeller system handles abrasive groundwater without performance loss
- Hexagonal stainless steel shaft provides effective drive across all pump stages
- Front wear ring improves resistance to abrasive wear in sandy conditions
- Integrated non-return valve prevents reverse flow on motor shutdown
- AISI 304 stainless steel construction offers corrosion resistance during submersion
- Technopolymer impeller reduces starting torque requirements
- Supplied with heatshrink kit for waterproof electrical connections
SPECIFICATIONS
| Max Flow | 183 L/Min |
| Max Head | 113 m |
| Power | 3 kW / 415v |
| Rated Current | 7.1 Amps |
| Suitable For | Industrial Supply |
| Body Material | Stainless Steel |
| Liquid Temperature | Maximum 35°C |
| Outlet Size | 50 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How much head can this industrial borehole pump generate?
The 8GS30-3 produces an impressive maximum head of 113.2 metres at shut-off with flow rates up to 183 L/Min.
What are the electrical specifications for this 3 kW motor?
Running on a 415 V three-phase line, the 3.0 kW motor in the 8GS-30-3 draws 7.1 Amps during normal duty.
How does this pump maintain durability when pumping sandy groundwater?
Floating stack construction allows the 8GS 30 3 to process sand concentrations up to 150 g/m3 without damaging internal clearances.
What minimum fluid velocity past the casing is required to cool the motor?
The motor of the 8GS_30_3 requires a surrounding fluid velocity of at least 8 cm/s for adequate cooling.
What accessories are provided for electrical cable splicing?
A protective heatshrink kit is supplied with the 8GS30-3 to create watertight electrical connections.
