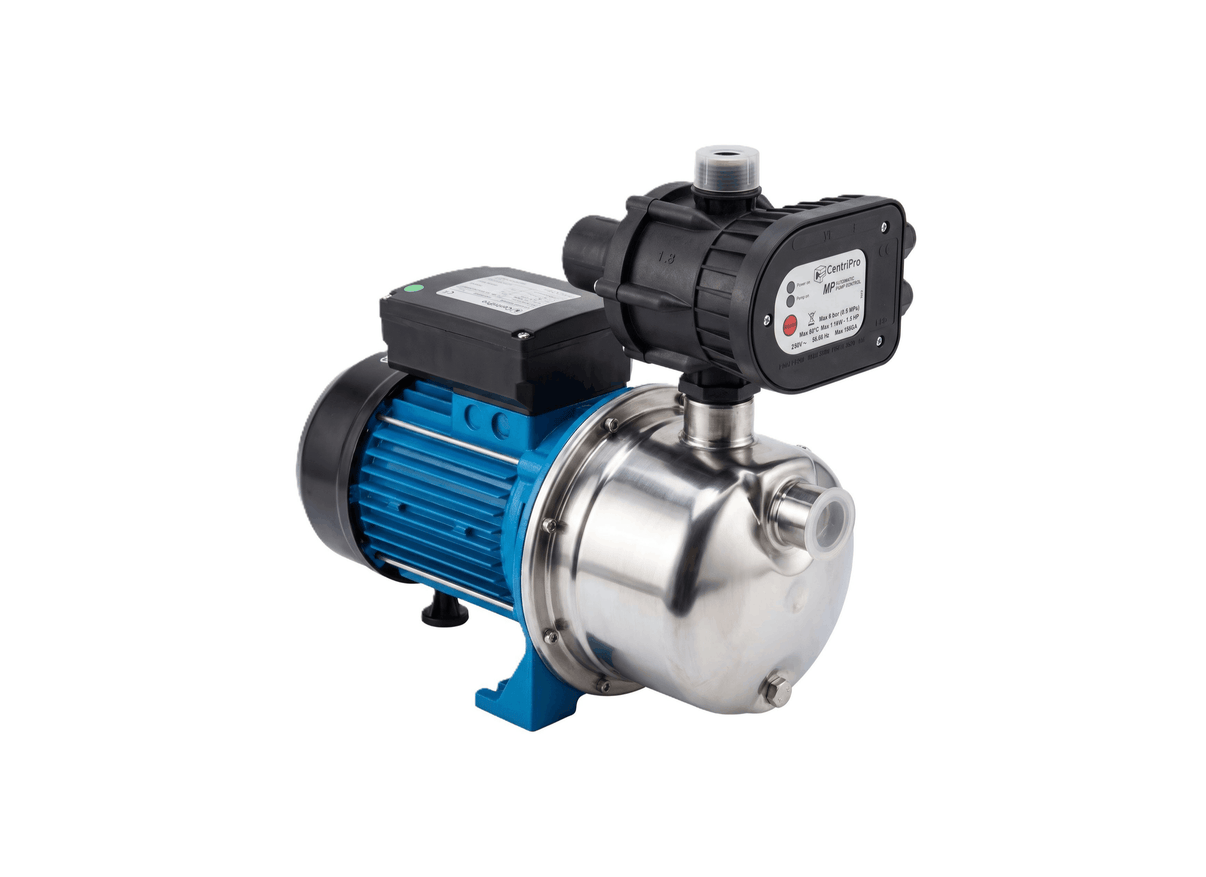

Lowara BGM7-APC22 Stainless Steel Self-Priming Jet Pump for Irrigation with Electric Controller
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
For automated rainwater harvesting and tank supply applications requiring higher head capability, the Lowara BGM7APC22 combines the 0.80 kW self-priming pump with an APC22 electronic pressure controller. This configuration is suited to installations with elevated distribution points where automated control is also required.
The AISI 304 stainless steel pump body delivers a maximum head of approximately 36.6 metres and a maximum flow rate of 55 litres per minute. The 0.80 kW motor operates on a 220-240 V single-phase supply with a rated current of 4.63. Suction is Rp 32 mm and discharge is Rp 25 mm. The pump handles clean liquids from -10°C to +40°C.
The self-priming design allows the pump to draw water from sources below pump level, subject to the limits specified in the technical documentation. The APC22 controller provides automatic pump start-stop based on system pressure. The motor enclosure is IP55 with Class F insulation, and automatic reset thermal overload protection is included.
Electrical connections are made through a pre-wired terminal junction box. The pump is certified for drinking water use under WRAS and ACS. The controller enables automated operation without a separate pressure vessel. Installation requires a level, frost-protected surface with adequate ventilation.
FEATURES
- Self-priming design enables operation with suction lift from below pump level.
- APC22 electronic pressure controller provides automatic pump start-stop operation.
- 0.80 kW motor provides higher head capability for demanding installations.
- Rp 32 mm suction and Rp 25 mm discharge connections for standard plumbing integration.
- IP55 motor enclosure protects against dust and moisture ingress.
- WRAS and ACS certification for drinking water use.
- Controller-based design eliminates the need for a separate pressure vessel.
SPECIFICATIONS
| Max Flow | 55 L/Min |
| Max Head | 36.6 m |
| Power | 0.85 kW / 240v |
| Rated Current | 4.63 Amps |
| Suitable For | Water Supply / Irrigation |
| Body Material | 304 Stainless Steel |
| Liquid Temperature | Maximum 40°C |
| Inlet Size | 32 mm |
| Outlet Size | 25 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Does the Lowara BGM7APC22 require a lot of ongoing maintenance?
Not at all. It's designed for hassle-free daily operation with long-life sealed bearings and heavy-duty mechanical shaft seals. Just keep your water inlet strainer clear and it'll run reliably for years.
What jobs is the Lowara BGM7APC22 best at handling around the property?
It's fantastic for pumping water out of rainwater tanks, running garden sprinklers, washdown areas, and supplying clean water right into the house.
What materials is the Lowara BGM7APC22 made from and can it handle warm water?
It's built with a 304 stainless steel body and stainless steel impellers, so it won't rust or corrode over time. It easily handles clean water at temperatures up to 60°C.
Is the Lowara BGM7APC22 motor safe to install outside in the weather?
Yes, it is. The 0.80 kW motor has an IP55 weatherproof casing, so it handles rain, dust, and outdoor conditions with no trouble. It plugs into standard home power and includes built-in thermal overload protection.
