SKU: BGM7PT18

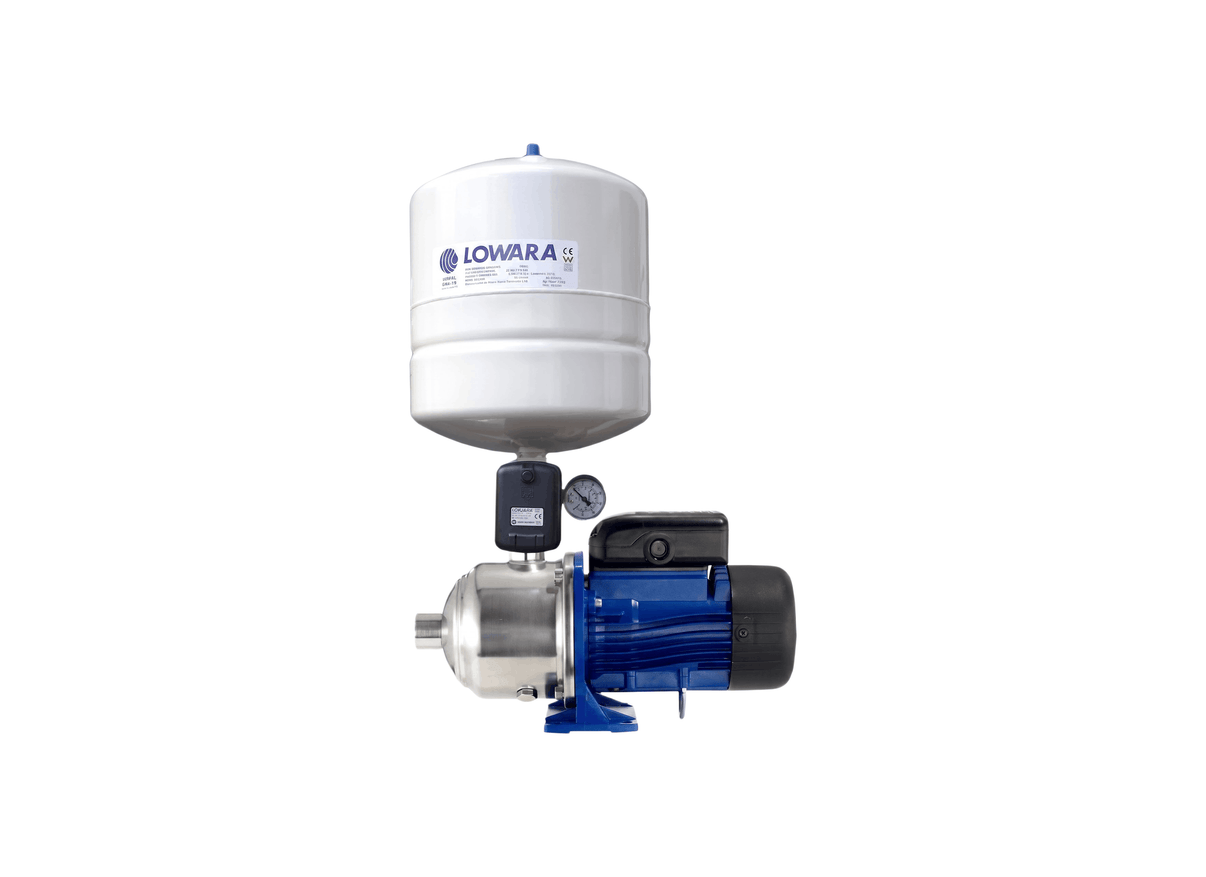

Lowara BGM7-PT18 Stainless Steel Self-Priming Jet Pump for Pressure Boosting with 18 Litre Tank
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
For rainwater harvesting and tank supply installations requiring both higher pressure and larger storage capacity, the Lowara BGM7PT18 combines the 0.80 kW self-priming pump with an 18-litre APT pressure vessel. This packaged system is intended for residential applications with elevated distribution points where reduced pump cycling is also desired.
The AISI 304 stainless steel pump body delivers a maximum head of approximately 36.6 metres and a maximum flow rate of 40 litres per minute. The 0.80 kW motor operates on a 220-240 V single-phase supply with a rated current of 4.71 Amps at 220 V and 4.52 Amps at 240 V. Suction is Rp 32 mm and discharge is Rp 25 mm. The pump handles clean liquids from -10°C to +40°C.
The self-priming design allows the pump to draw water from sources below pump level, subject to the limits specified in the technical documentation. The 18-litre pressure vessel provides additional water storage, reducing pump starts during low-demand operation. The motor is rated IP55 with Class F insulation, and thermal protection is provided by an automatic reset overload device.
Installation requires a level, frost-protected surface with adequate ventilation. The pre-wired terminal junction box simplifies electrical connection. The pump is certified for drinking water use under WRAS and ACS. The larger pressure vessel makes this variant suited to systems with intermittent water use and higher pressure requirements.
FEATURES
- Self-priming design enables operation with suction lift from below pump level.
- 0.80 kW motor provides higher head and flow capability for demanding installations.
- Rp 32 mm suction and Rp 25 mm discharge connections for standard plumbing integration.
- 18-litre APT pressure vessel provides increased water storage for reduced cycling.
- IP55 motor enclosure protects against dust and moisture ingress.
- WRAS and ACS certification for drinking water use.
- Automatic reset thermal protection incorporated into the motor.
SPECIFICATIONS
| Max Flow | 70 L/Min |
| Max Head | 45.4 m |
| Power | 0.75 kW / 240v |
| Rated Current | 4.38 Amps |
| Suitable For | Water Supply / Irrigation |
| Body Material | 304 Stainless Steel |
| Liquid Temperature | Maximum 40°C |
| Inlet Size | 32 mm |
| Outlet Size | 25 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What jobs is the Lowara BGM7PT18 best at handling around the property?
It's fantastic for pumping water out of rainwater tanks, running garden sprinklers, washdown areas, and supplying clean water right into the house.
Is the Lowara BGM7PT18 motor safe to install outside in the weather?
Yes, it is. The 0.80 kW motor has an IP55 weatherproof casing, so it handles rain, dust, and outdoor conditions with no trouble. It plugs into standard home power and includes built-in thermal overload protection.
How much water flow and pressure can I get from the Lowara BGM7PT18?
You get up to 40 litres per minute of water flow and a max pressure head of 36.6 metres. That's plenty of punch to run multiple showers, taps, or garden hoses at the same time without annoying pressure drops.
Why does the Lowara BGM7PT18 come with an 18-litre pressure tank?
The 18L tank keeps water pressurized so the pump doesn't have to kick on every time you turn on a tap to rinse your hands. It stops the motor from constantly clicking on and off, which cuts down your power bill and keeps the pump running smoothly for years.
