SKU: BGM9PT18

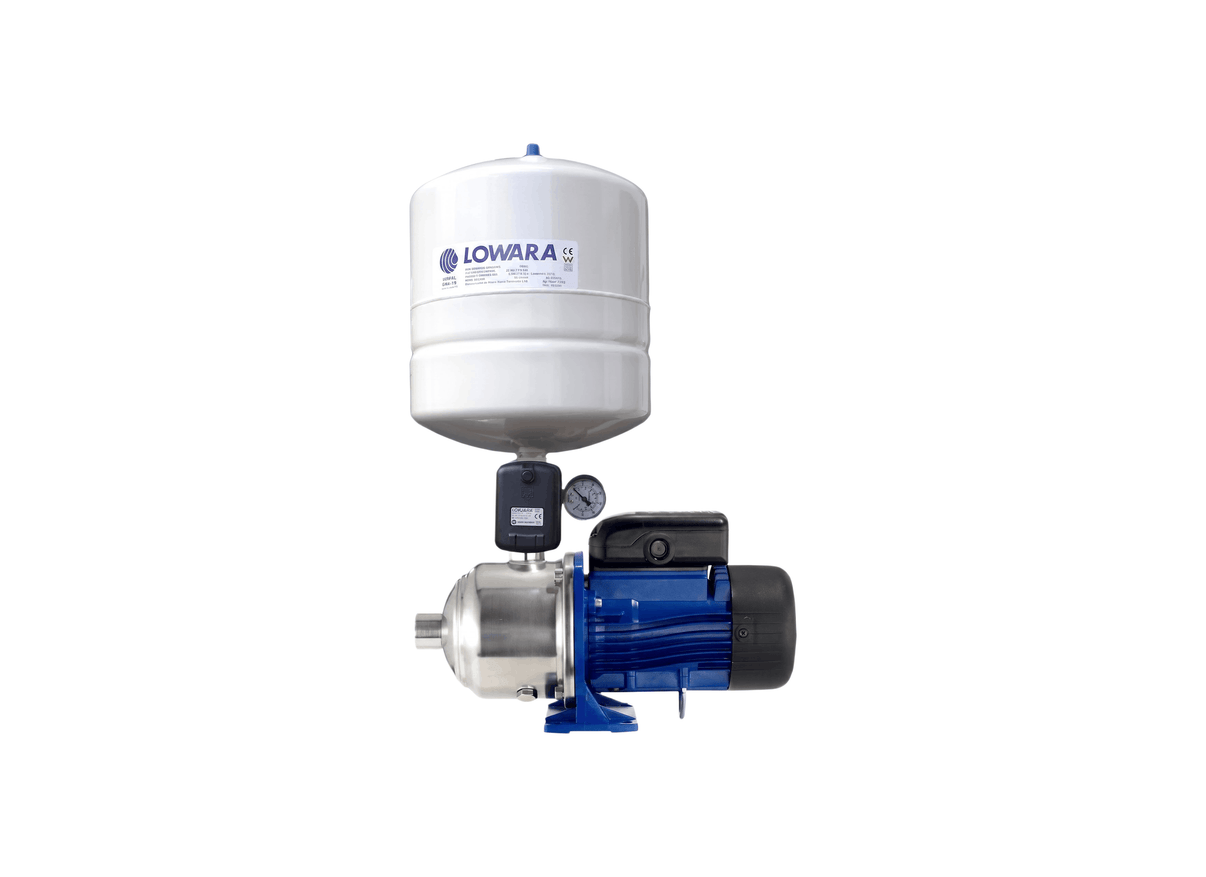

Lowara BGM9-PT18 Stainless Steel Self-Priming Jet Pump for Rainwater Collection with 18 Litre Tank
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
The Lowara BGM9PT18 is a self-priming pressure-boosting system combining a centrifugal jet pump with an 18-litre APT pressure vessel. This packaged unit is intended for residential applications requiring suction lift, higher head capability, and increased pressure storage for domestic water supply, rainwater harvesting, and garden irrigation.
The AISI 304 stainless steel pump body delivers a maximum head of 49.6 metres and a maximum flow rate of 70 litres per minute. The 0.9 kW motor operates on 240 V single-phase, drawing 4.71 Amps. Suction is Rp 32 mm and discharge is Rp 25 mm. The pump handles clean liquids up to 40°C.
The self-priming design allows the pump to draw water from sources below pump level, subject to the limits specified in the technical documentation. The 18-litre APT pressure vessel provides additional water storage, reducing pump starts during low-demand operation. The motor enclosure is IP55 with Class F insulation, and thermal overload protection is incorporated with automatic reset.
The unit is designed for surface-mounted installation and is not intended for submerged operation. Electrical connections are made through a pre-wired terminal junction box. The system is rated for a maximum operating pressure of 10 bar and should be installed in a frost-protected, well-ventilated location with adequate maintenance access.
FEATURES
- Self-priming design enables operation with suction lift.
- 18-litre APT pressure vessel provides increased water storage for reduced cycling.
- 0.9 kW motor provides higher head and flow capability.
- Rp 32 mm suction and Rp 25 mm discharge connections for standard plumbing integration.
- IP55 motor enclosure protects against dust and moisture ingress.
- AISI 304 stainless steel pump body provides corrosion resistance.
- Automatic reset thermal protection safeguards the motor during operation.
SPECIFICATIONS
| Max Flow | 70 L/Min |
| Max Head | 49.6 m |
| Power | 0.9 kW / 240v |
| Rated Current | 4.71 Amps |
| Suitable For | Water Supply / Irrigation |
| Body Material | 304 Stainless Steel |
| Liquid Temperature | Maximum 40°C |
| Inlet Size | 32 mm |
| Outlet Size | 25 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Does the Lowara BGM9PT18 require a lot of ongoing maintenance?
Not at all. It's designed for hassle-free daily operation with long-life sealed bearings and heavy-duty mechanical shaft seals. Just keep your water inlet strainer clear and it'll run reliably for years.
What jobs is the Lowara BGM9PT18 best at handling around the property?
It's fantastic for pumping water out of rainwater tanks, running garden sprinklers, washdown areas, and supplying clean water right into the house.
Why does the Lowara BGM9PT18 come with an 18-litre pressure tank?
The 18L tank keeps water pressurized so the pump doesn't have to kick on every time you turn on a tap to rinse your hands. It stops the motor from constantly clicking on and off, which cuts down your power bill and keeps the pump running smoothly for years.
Is the Lowara BGM9PT18 motor safe to install outside in the weather?
Yes, it is. The 0.9 kW motor has an IP55 weatherproof casing, so it handles rain, dust, and outdoor conditions with no trouble. It plugs into standard home power and includes built-in thermal overload protection.
